Cylinder Head Removal - Right

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cylinder head bolts.
  2. Discard the cylinder head bolts.

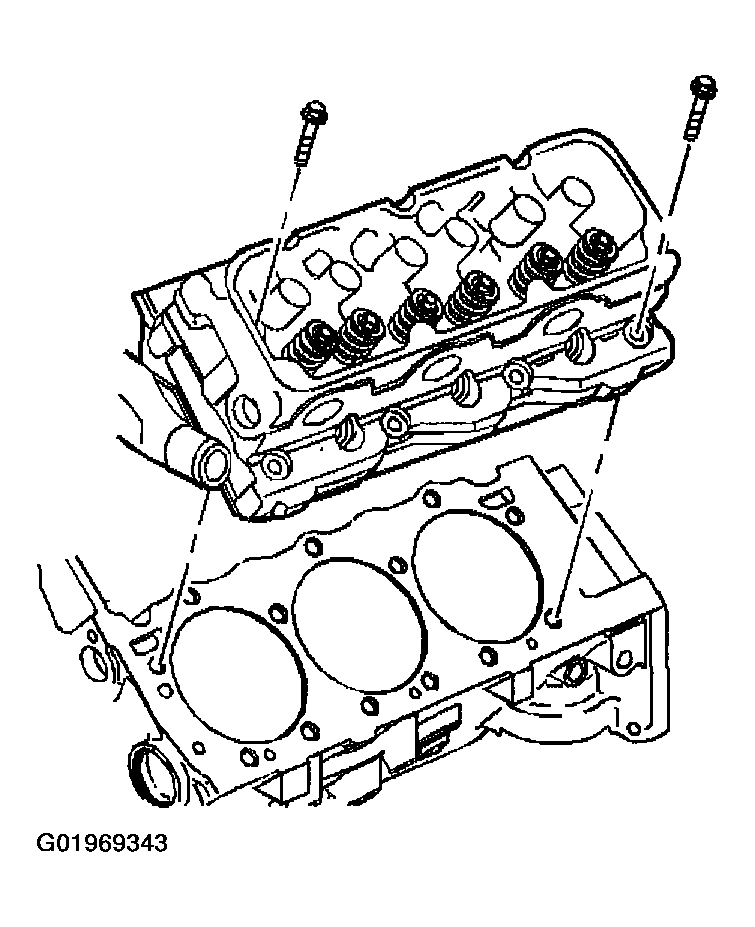

    Fig 1: Removing Right Cylinder Head & Bolts
    G01969343Courtesy of GENERAL MOTORS CORP.
  3. Remove the cylinder head.
  4. Remove the cylinder head gasket.
