Cylinder Head Installation - Right

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 36660-A Torque Angle Meter. See Special Tools and Equipment .

Install the cylinder head gasket. Ensure the arrows point towards the front of the engine. The right cylinder head gasket has the letter R stamped next to the arrow.
NOTE: Refer to SPECIAL FASTENER NOTICE in Cautions and Notices.
Install the cylinder head.

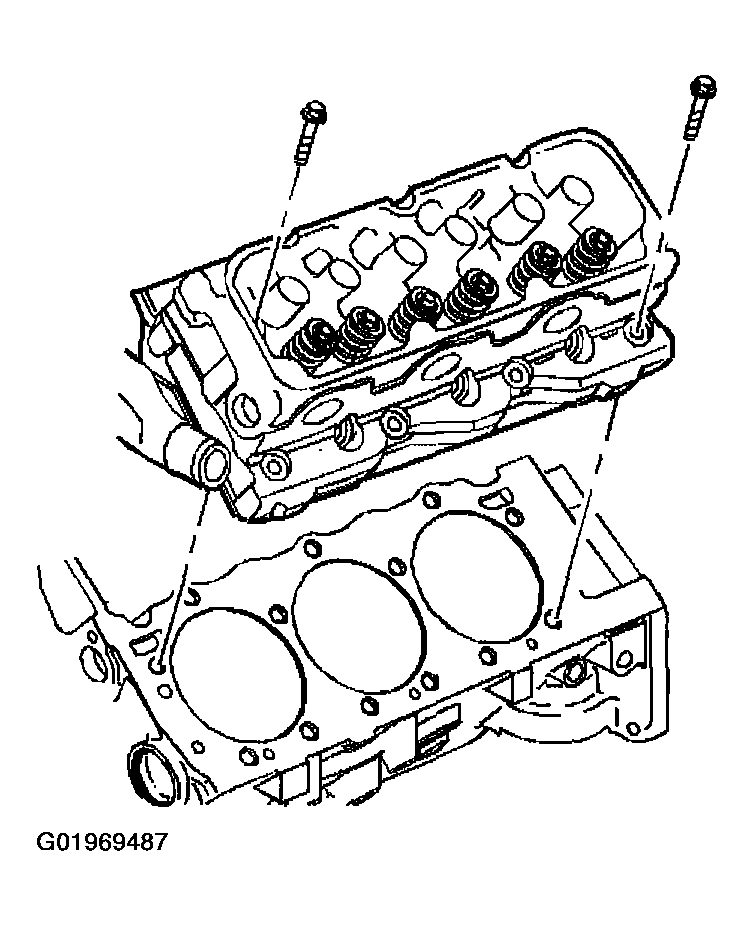

Fig 1: Installing Right Cylinder Head
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install new cylinder head bolts.
Tighten

Tighten the cylinder head bolts to 50 N.m (37 lb ft) in sequence. Using J 36660-A rotate each cylinder head bolt an additional 120 degrees.

Fig 2: Tightening Sequence Of Right Cylinder Head Bolts
Courtesy of GENERAL MOTORS CORP.
