Crankshaft Rear Oil Seal Removal

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Do not damage the crankshaft or the crankshaft rear oil seal housing.

Pry the crankshaft rear oil seal out with a screwdriver.

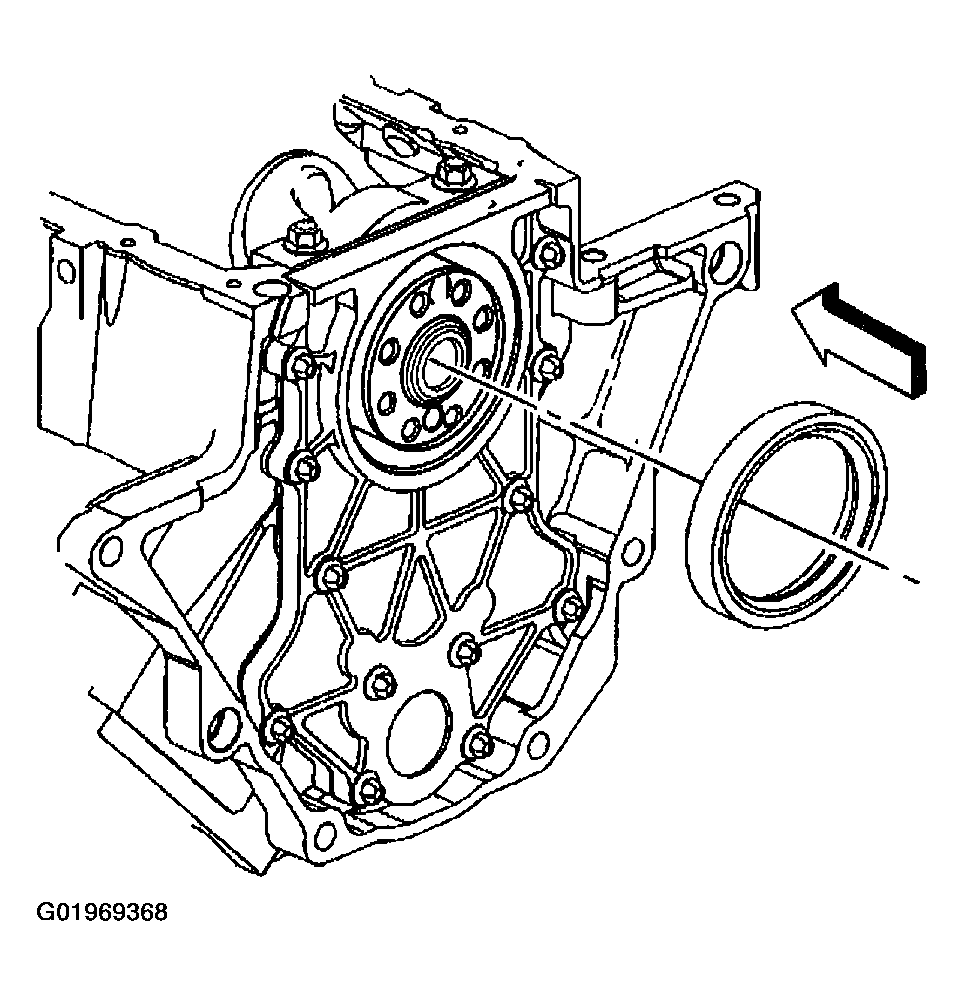

Fig 1: Removing Crankshaft Rear Oil Seal
G01969368Courtesy of GENERAL MOTORS CORP.
