Camshaft and Bearings Cleaning and Inspection

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 7872 Magnetic Base Indicator Set. See Special Tools and Equipment .

Measure the camshaft journals with a micrometer.
If the camshaft journals are not within specifications, replace the camshaft. The measurement should be 47.655-46.858 mm (1.8462-1.8448 in). If the measurement is not within specifications the engine camshaft must be replaced.

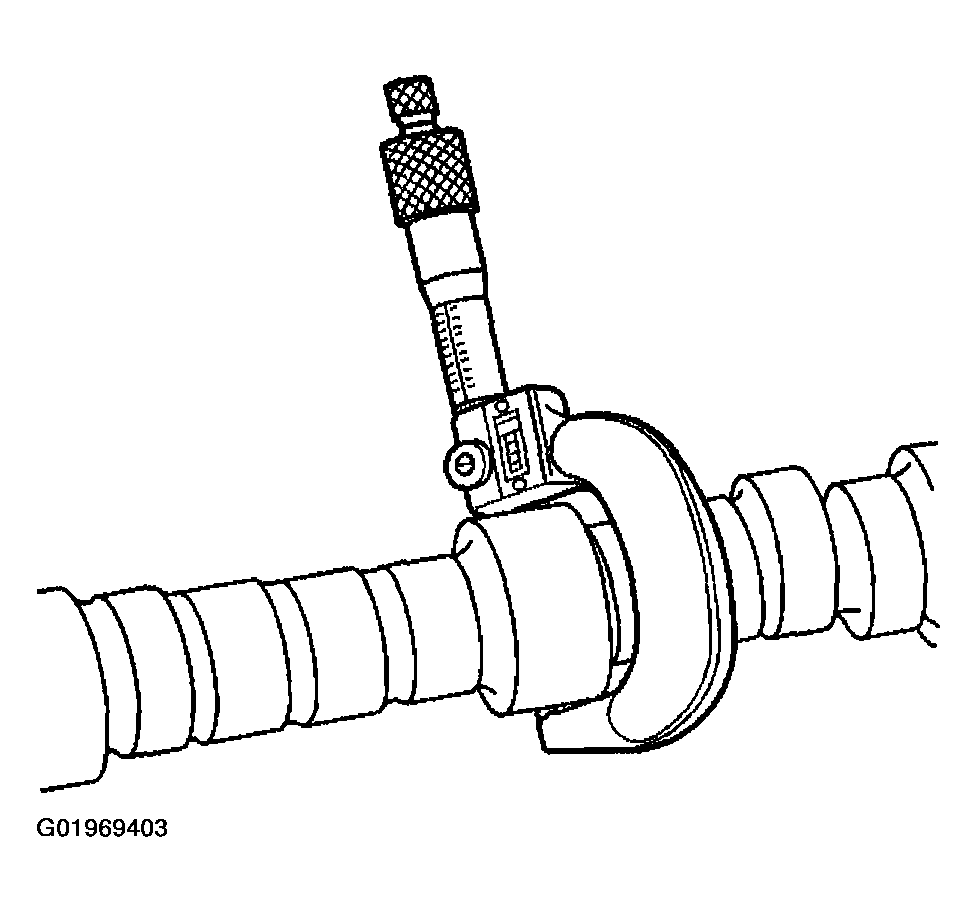

Fig 1: Measuring Camshaft Journals With Micrometer
Courtesy of GENERAL MOTORS CORP.
Measure the camshaft runout using J 7872.
1. 2.1. Mount the camshaft in V-blocks between centers.
2. 2.2. Use J 7872 to check the intermediate camshaft journal.
Fig 2: Measuring Camshaft Runout
Courtesy of GENERAL MOTORS CORP.
If the runout exceeds specifications, the camshaft is bent and should be replaced. If the camshaft journals are more than 0.025 mm (0.0010 in) out-of-round, then replace the engine camshaft.
