Camshaft Removal

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the camshaft thrust plate screws.
  2. Remove the camshaft thrust plate.

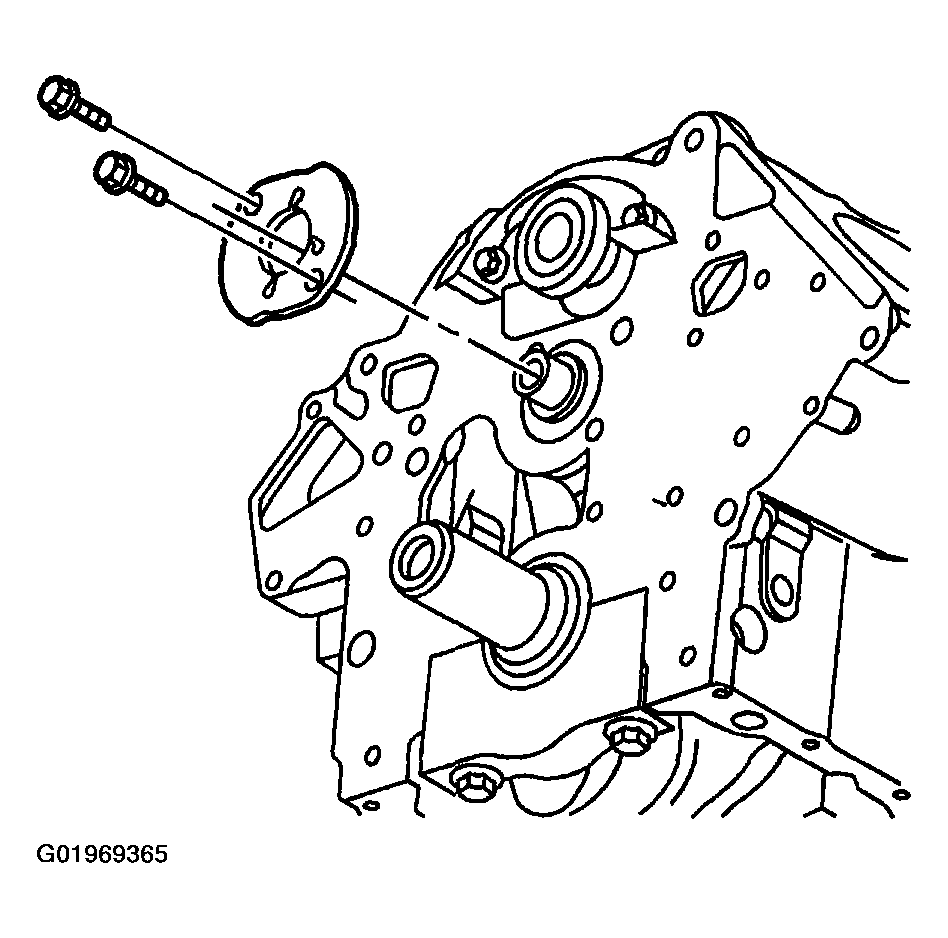

    Fig 1: Removing Camshaft Thrust Plate & Screws
    G01969365Courtesy of GENERAL MOTORS CORP.
  3. Install one 1/2-20 x 6.0 inch bolt in the camshaft front bolt hole.

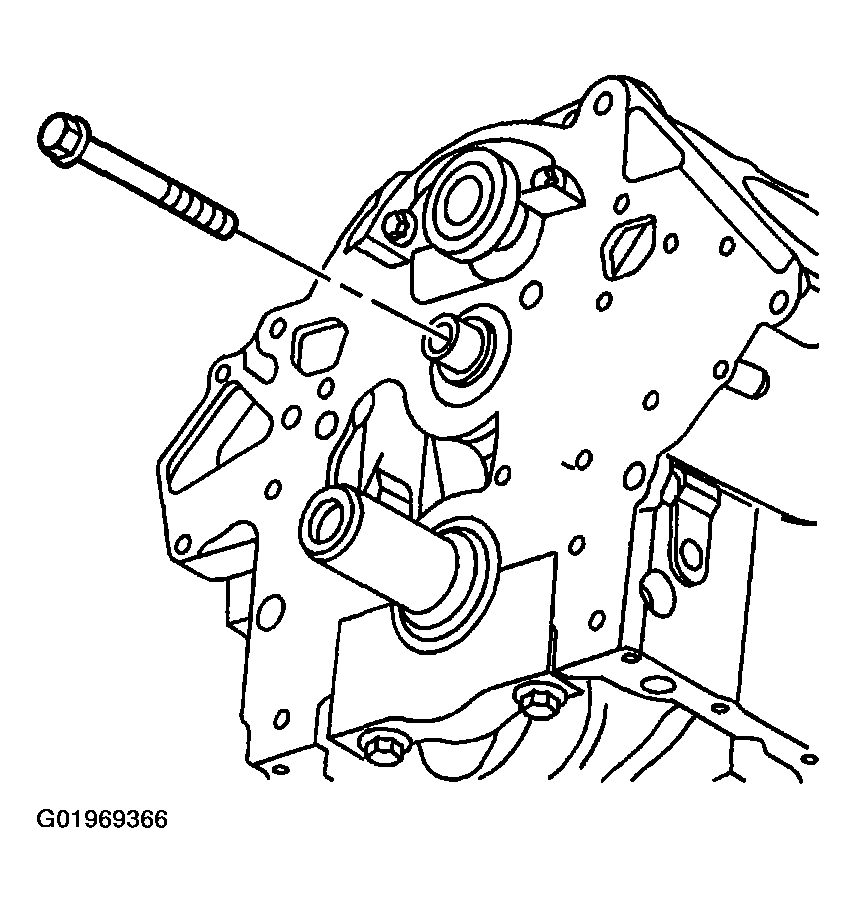

    Fig 2: Installing Bolt In Camshaft Front Bolt Hole
    G01969366Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: All camshaft journals are the same diameter, so care must be used in removing the camshaft to avoid damage to the bearings.
  4. Carefully rotate and pull the camshaft out of the bearings.

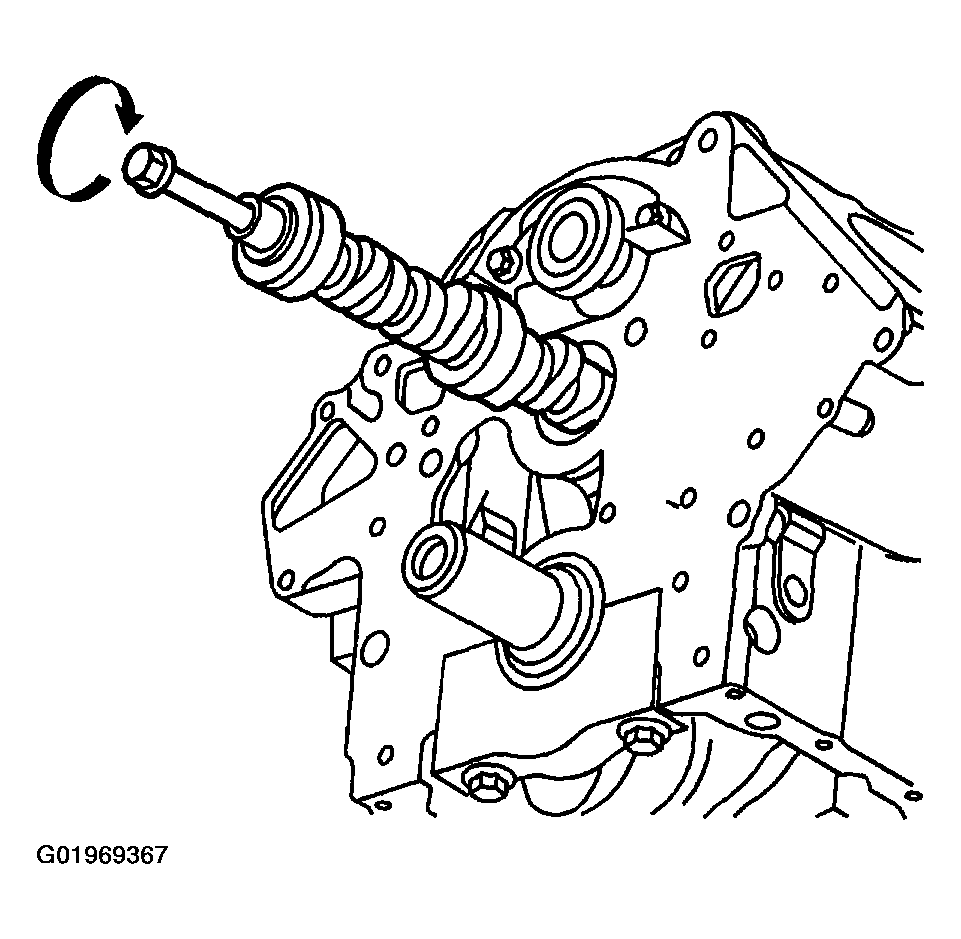

    Fig 3: Removing Camshaft
    G01969367Courtesy of GENERAL MOTORS CORP.
