Camshaft Bearing Installation

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 33049 Camshaft Bearing Remover/Installer. See Special Tools and Equipment .

Select the camshaft bearings.

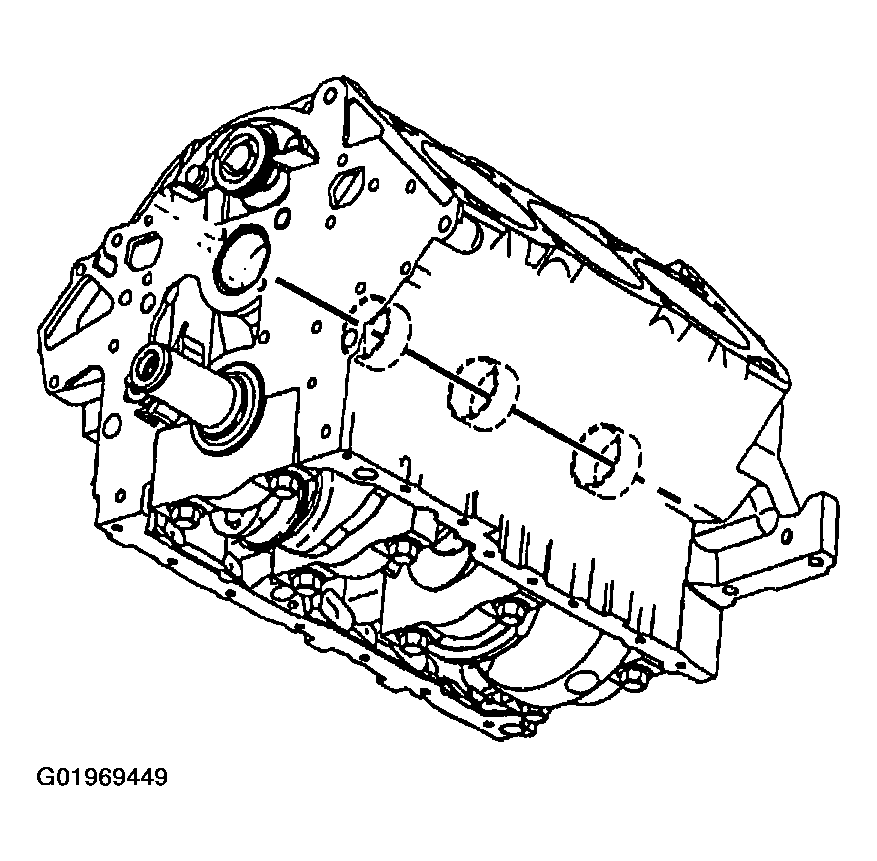

Fig 1: Locating Camshaft Bearings
Courtesy of GENERAL MOTORS CORP.
Use the following procedure to install the camshaft bearings:
1. 2.1. Assemble J 33049 according to the manufacturer's instructions.
2. 2.2. Place the bearing on the tool.
  NOTE: Severe engine damage may result if the oil holes are not correctly aligned.
3. 2.3. Index the bearing oil holes with the engine block oil passages.

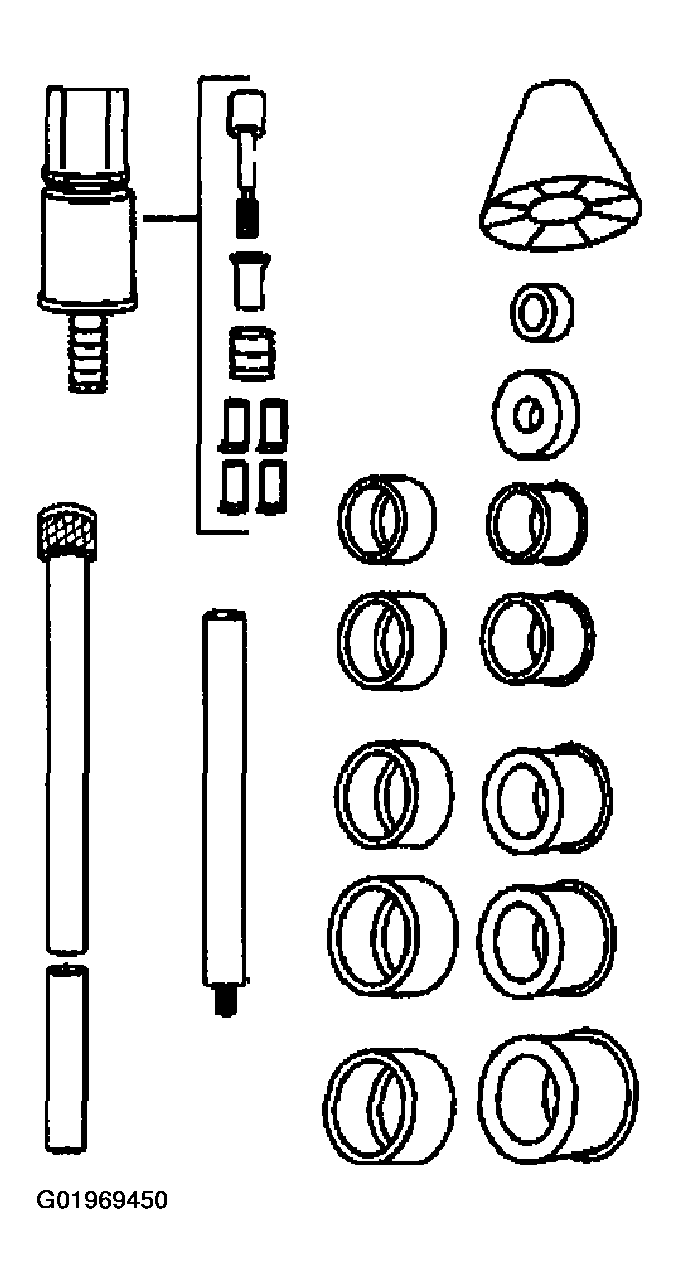

  Fig 2: Identifying Camshaft Bearing Remover/Installer
  Courtesy of GENERAL MOTORS CORP.
