Balance Shaft Removal

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 6125-1B  Slide Hammer. See Special Tools and Equipment .

  1. Remove the balance shaft driven gear bolt.
  2. Remove the balance shaft driven gear.

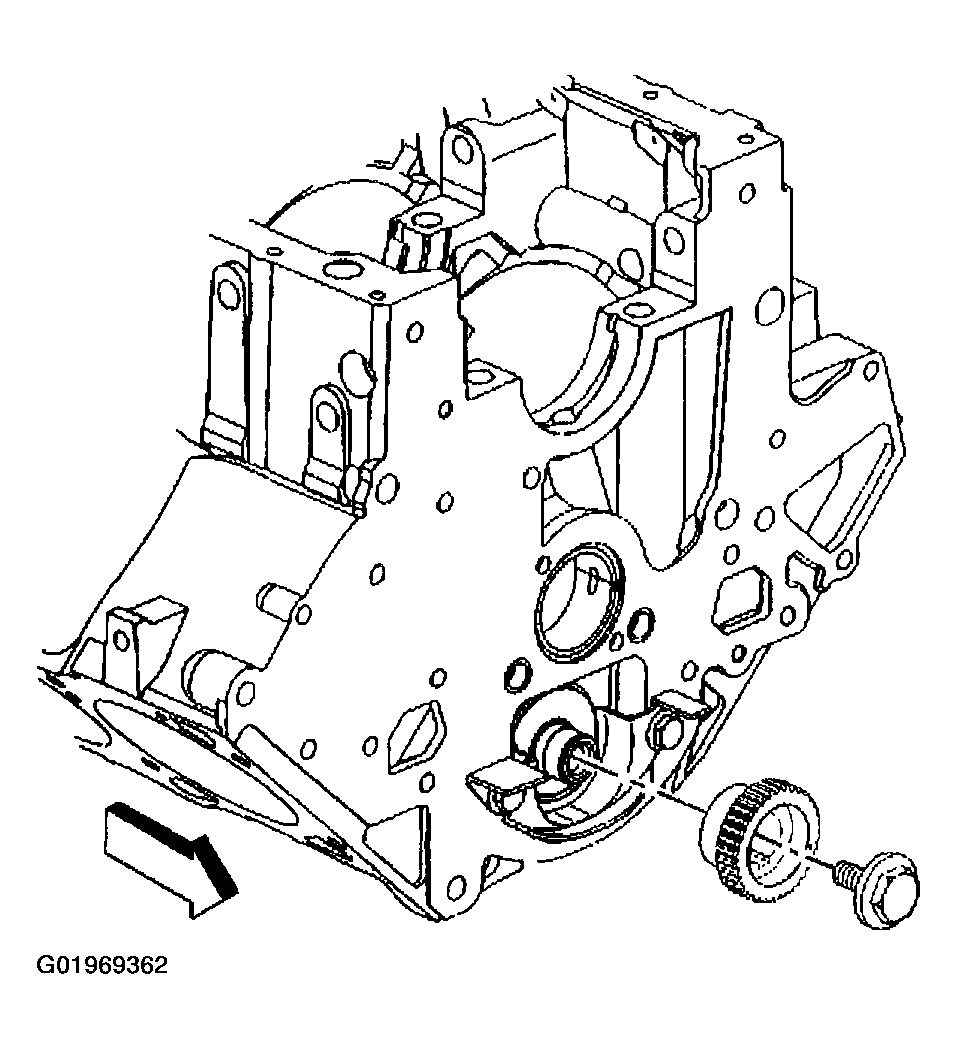

    Fig 1: Removing Balance Shaft Driven Gear & Bolt
    G01969362Courtesy of GENERAL MOTORS CORP.
  3. Remove the balance shaft retainer bolts.
  4. Remove the balance shaft retainer.

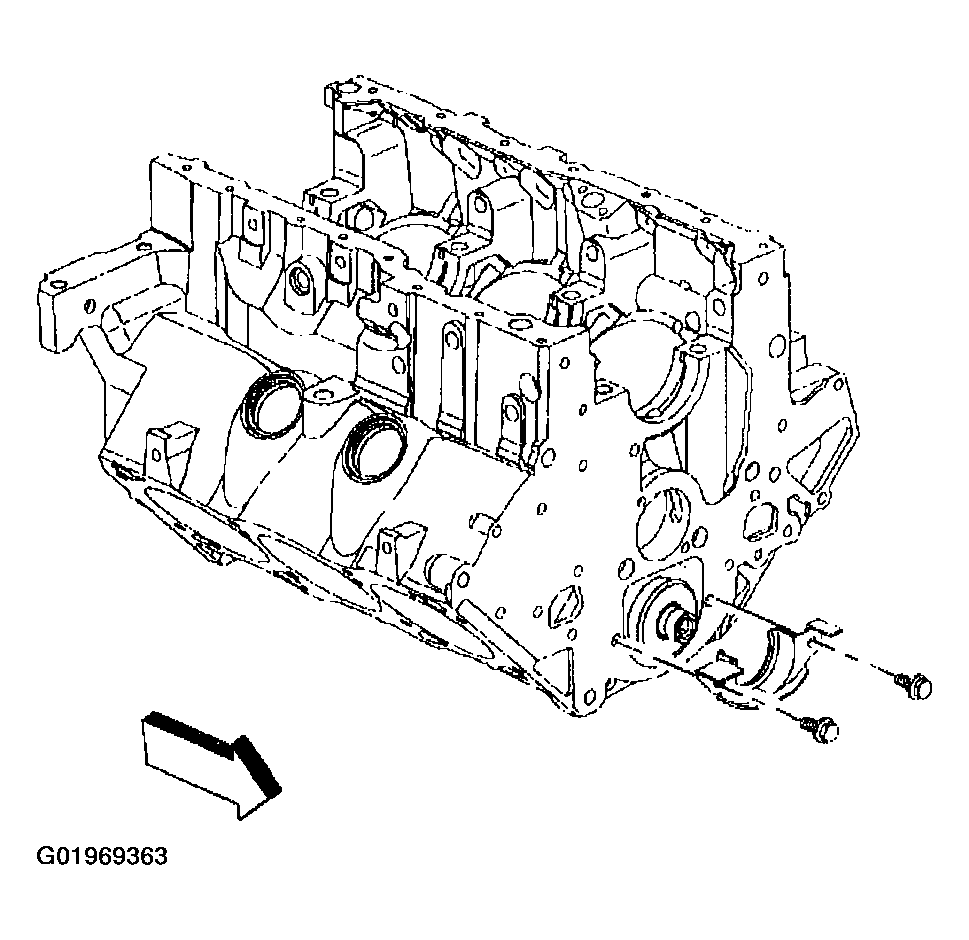

    Fig 2: Removing Balance Shaft Retainer & Bolts
    G01969363Courtesy of GENERAL MOTORS CORP.
  5. Use J 6125-1B  to remove the balance shaft.

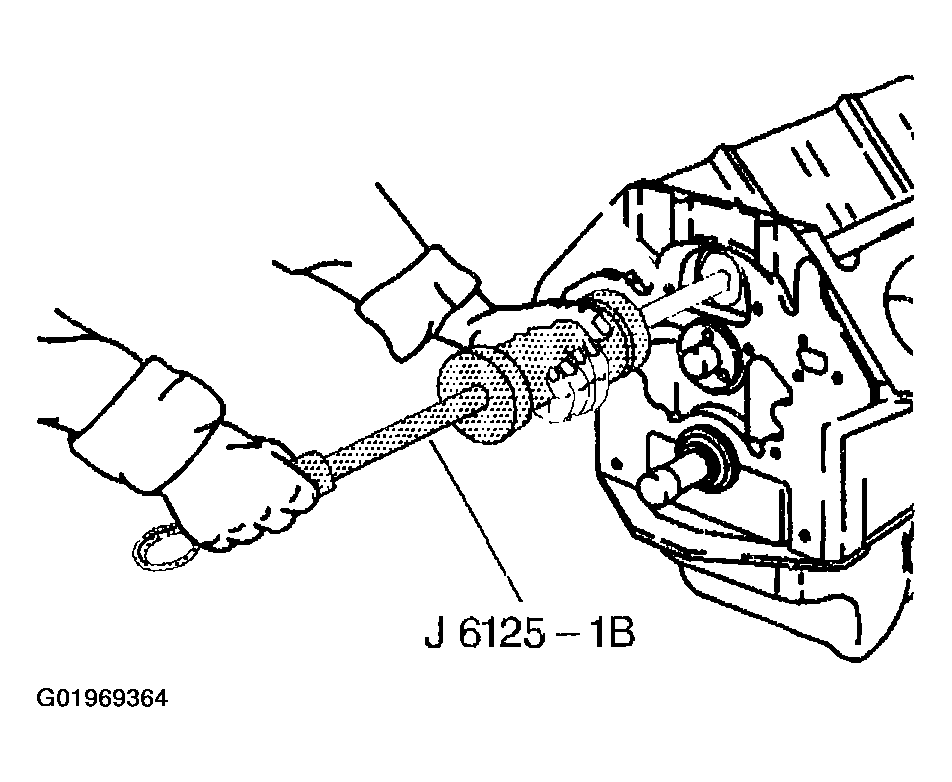

    Fig 3: Removing Balance Shaft
    G01969364Courtesy of GENERAL MOTORS CORP.
