Balance Shaft Bearing and/or Bushing Installation

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 21465-13 Drive Handle Extension. See Special Tools and Equipment .
J 36995 Balance Shaft Bearing Remover/Installer. See Special Tools and Equipment .

Dip the balance shaft bushing in clean engine oil.
IMPORTANT: The J 36995 installs the balance shaft bushing to the correct depth. The balance shaft bushing is properly installed when J 36995 fully contacts the balance shaft bore or the engine block/transaxle mounting flange.
Use the balance shaft bushing installers to install the balance shaft bushing.

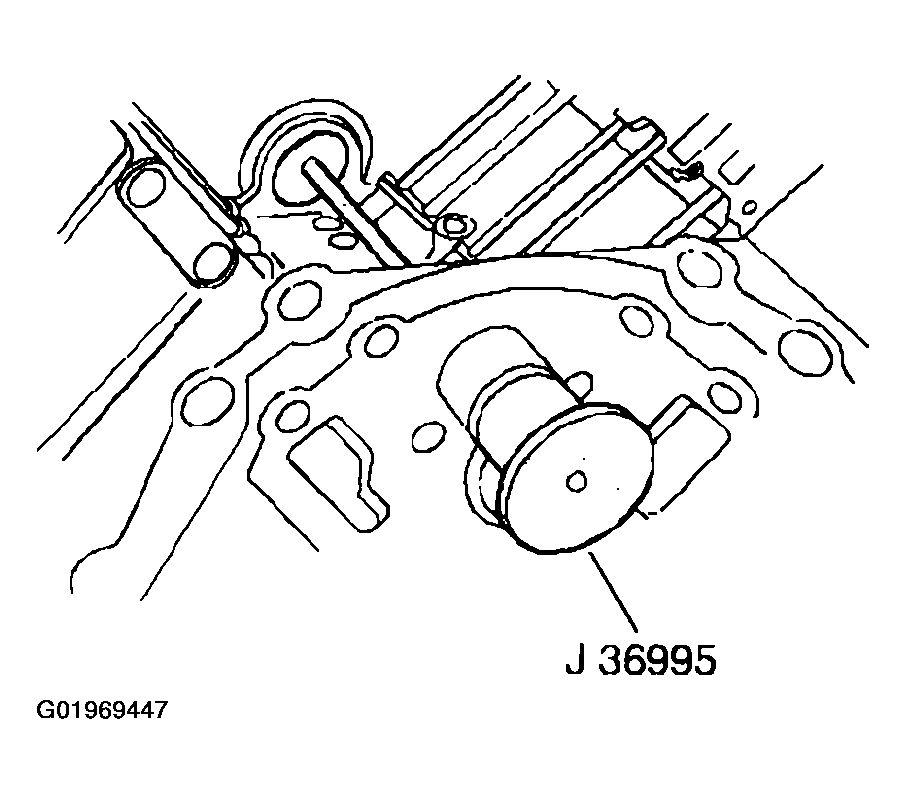

Fig 1: Installing Balance Shaft Bushing
Courtesy of GENERAL MOTORS CORP.
Remove J 36995 .
Dip the balance shaft bearing into clean engine oil.
Use J 21465-13 and J 36995 to install the balance shaft bearing into the engine block.

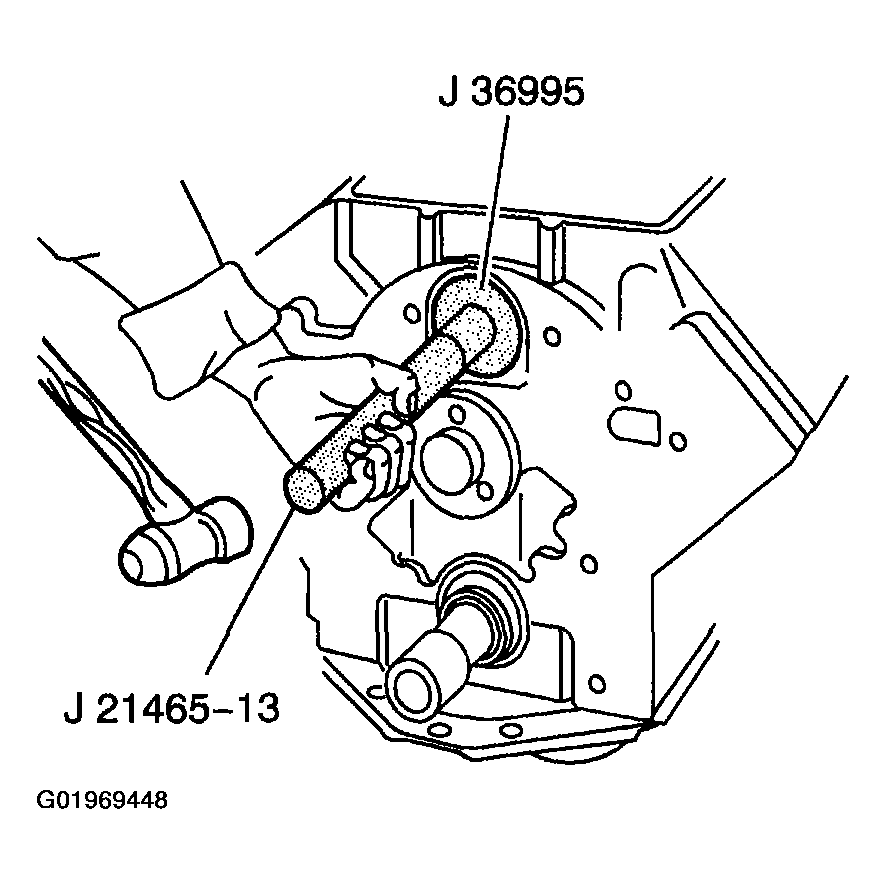

Fig 2: Installing Balance Shaft Bearing Into Engine Block
Courtesy of GENERAL MOTORS CORP.
