Oil Leak Diagnosis

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

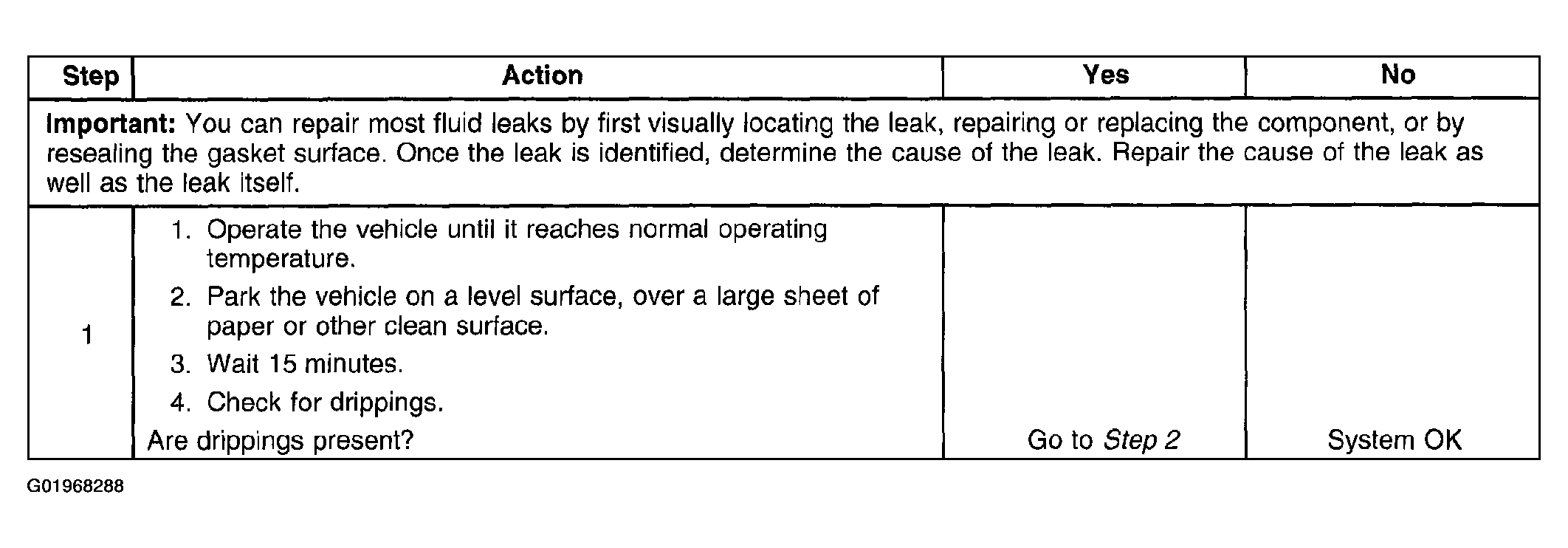

Fig 1: Oil Leak Diagnosis (Steps 1)

Courtesy of GENERAL MOTORS CORP.

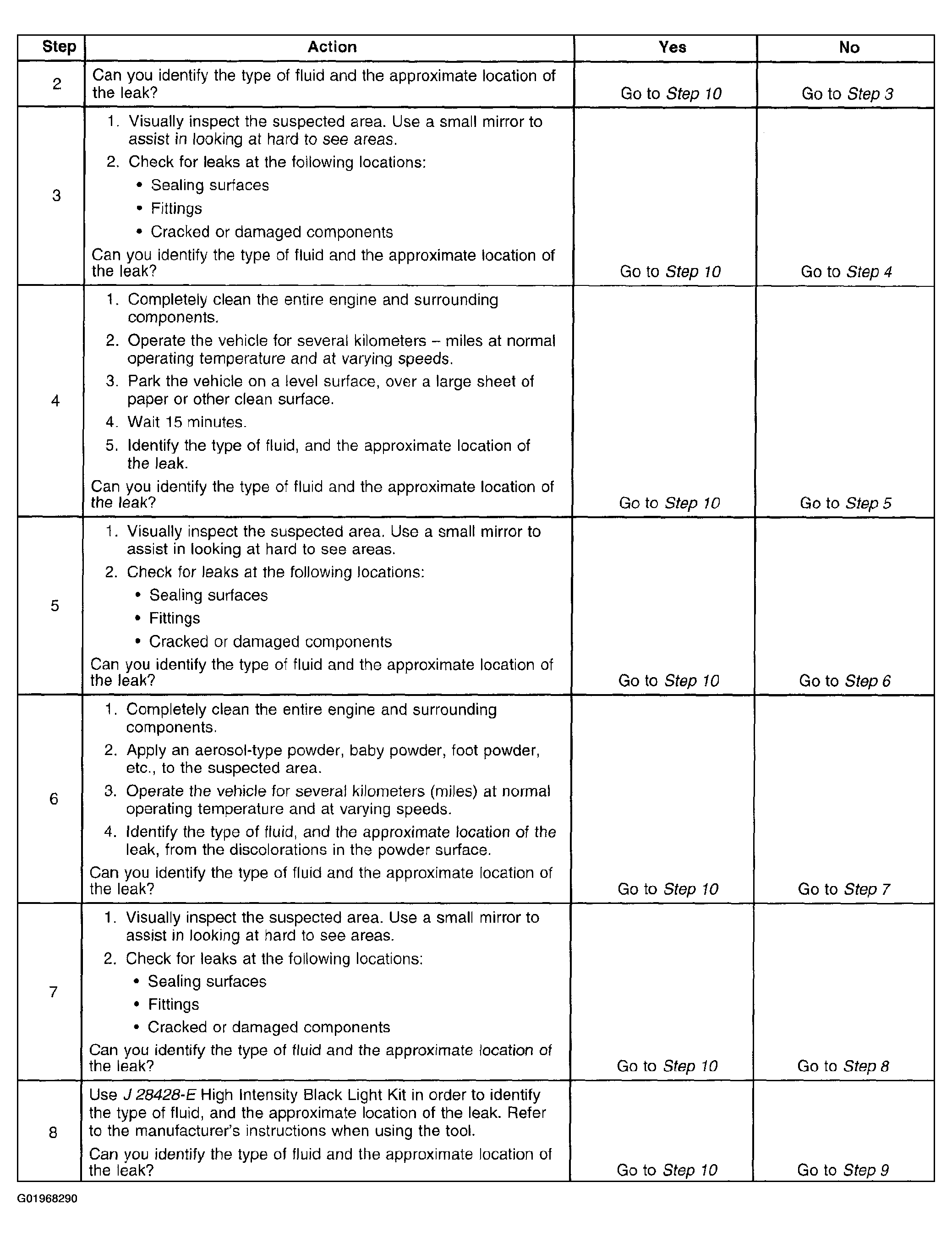

Fig 2: Oil Leak Diagnosis (Steps 2 Of 8)

Courtesy of GENERAL MOTORS CORP.

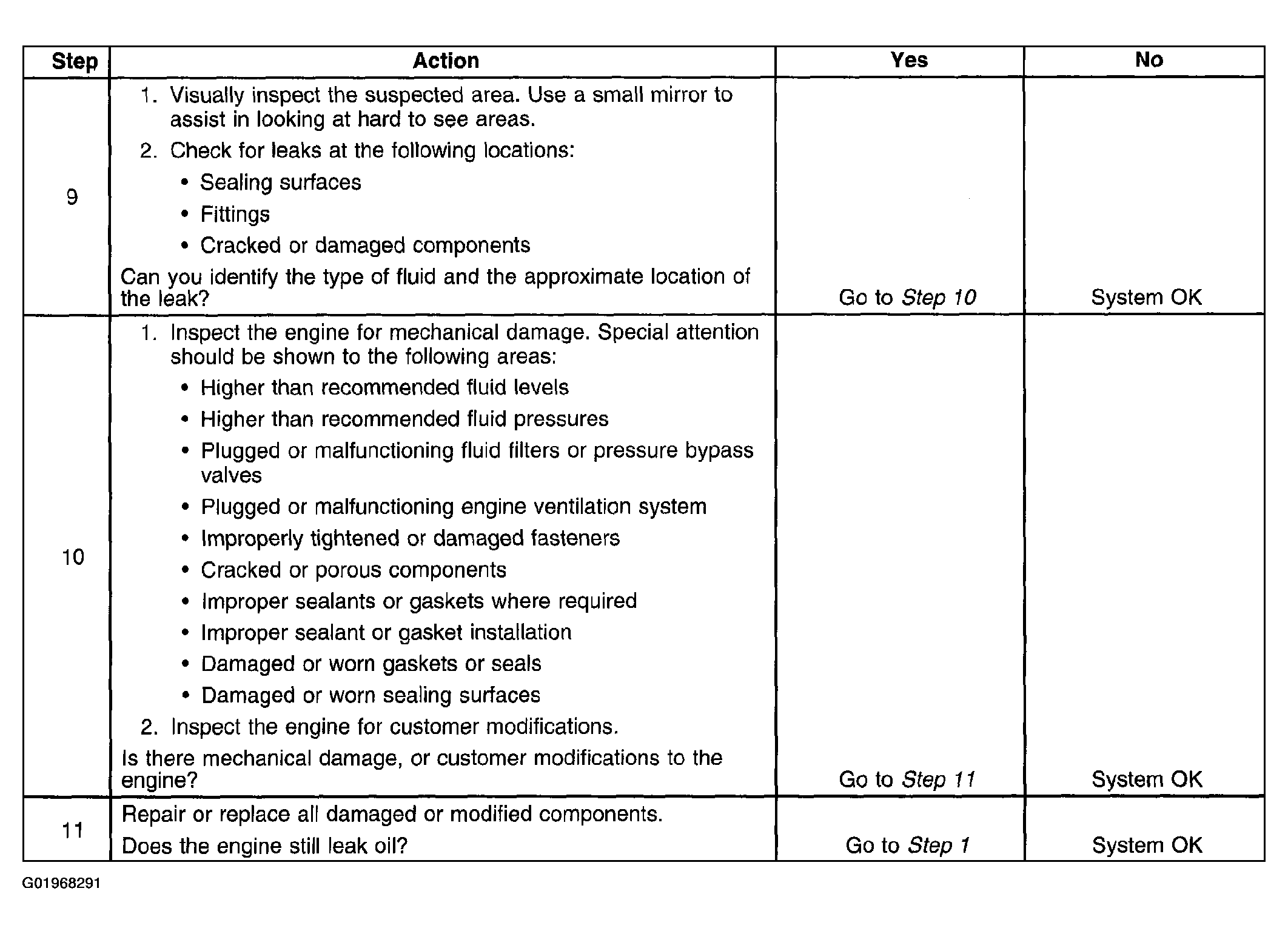

Fig 3: Oil Leak Diagnosis (Steps 3 Of 11)

Courtesy of GENERAL MOTORS CORP.
