Coolant in Engine Oil

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

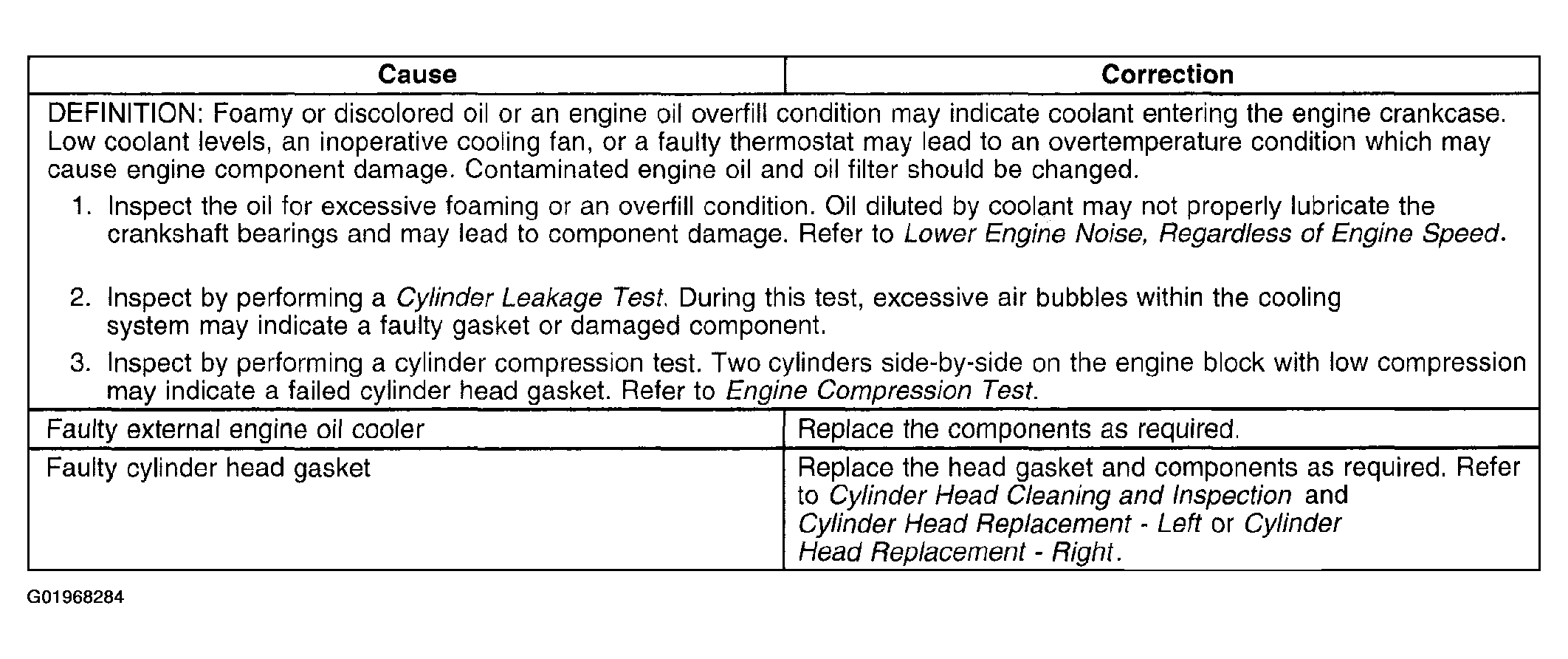

Fig 1: Coolant In Engine Oil (1 Of 2)
G01968284Courtesy of GENERAL MOTORS CORP.

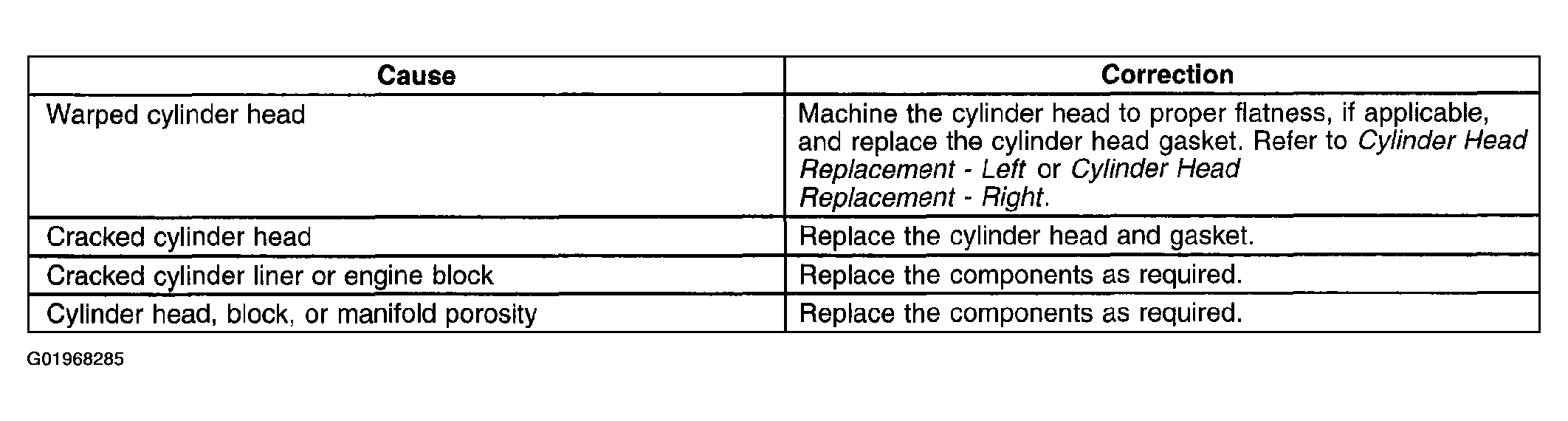

Fig 2: Coolant In Engine Oil (2 Of 2)
G01968285Courtesy of GENERAL MOTORS CORP.
