Camshaft Bearing Removal

WARNING: This page is about a different car, the 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 33049 Camshaft Bearing Remover/Installer. See Special Tools and Equipment .

Select the expander assembly and driving washer.
Assemble the J 33049.

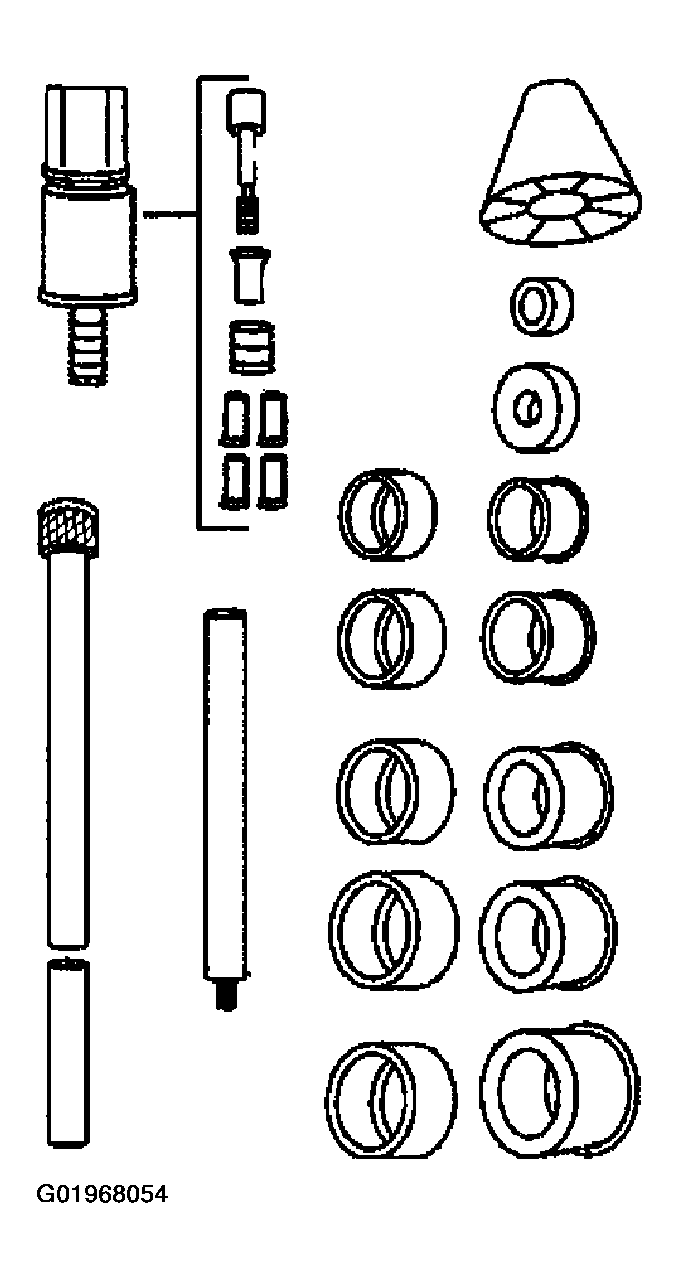

Fig 1: Identifying Camshaft Bearing Remover/Installer Components
Courtesy of GENERAL MOTORS CORP.
Drive out the camshaft bearings. Use the J 33049 .

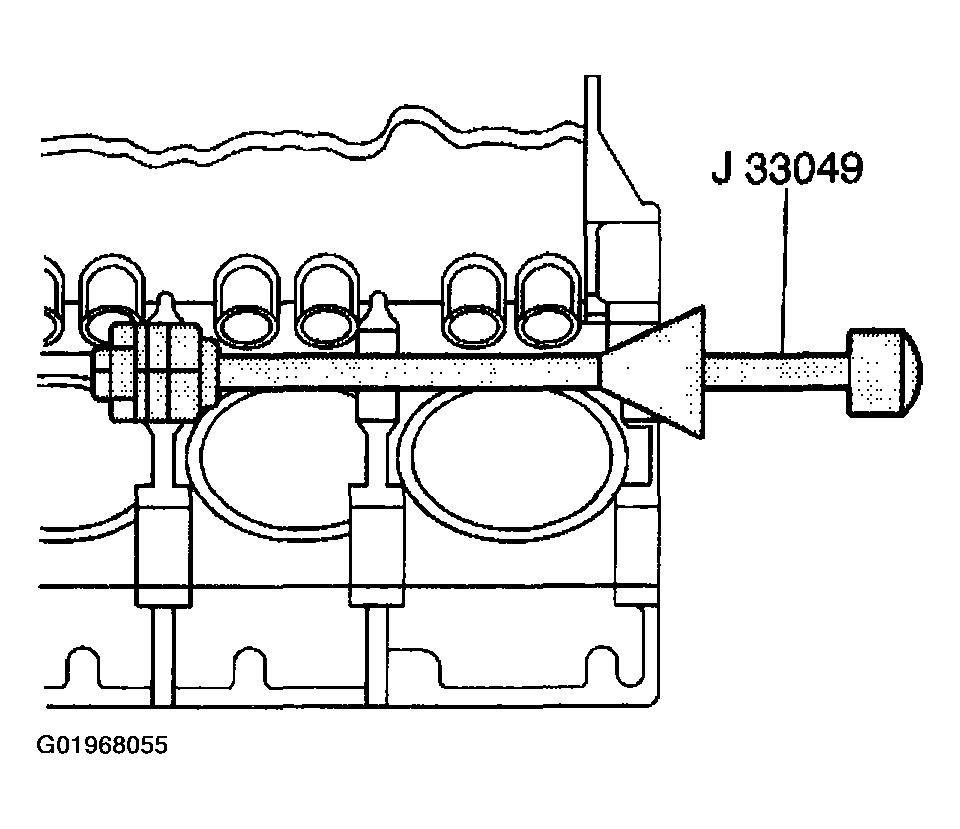

Fig 2: View Of J 33049
Courtesy of GENERAL MOTORS CORP.
