Test Description

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

4. Measures the resistance of the wheel speed sensor in order to determine if the sensor has a valid resistance value.

5. Ensures that the wheel speed sensor is generating a valid AC voltage output.

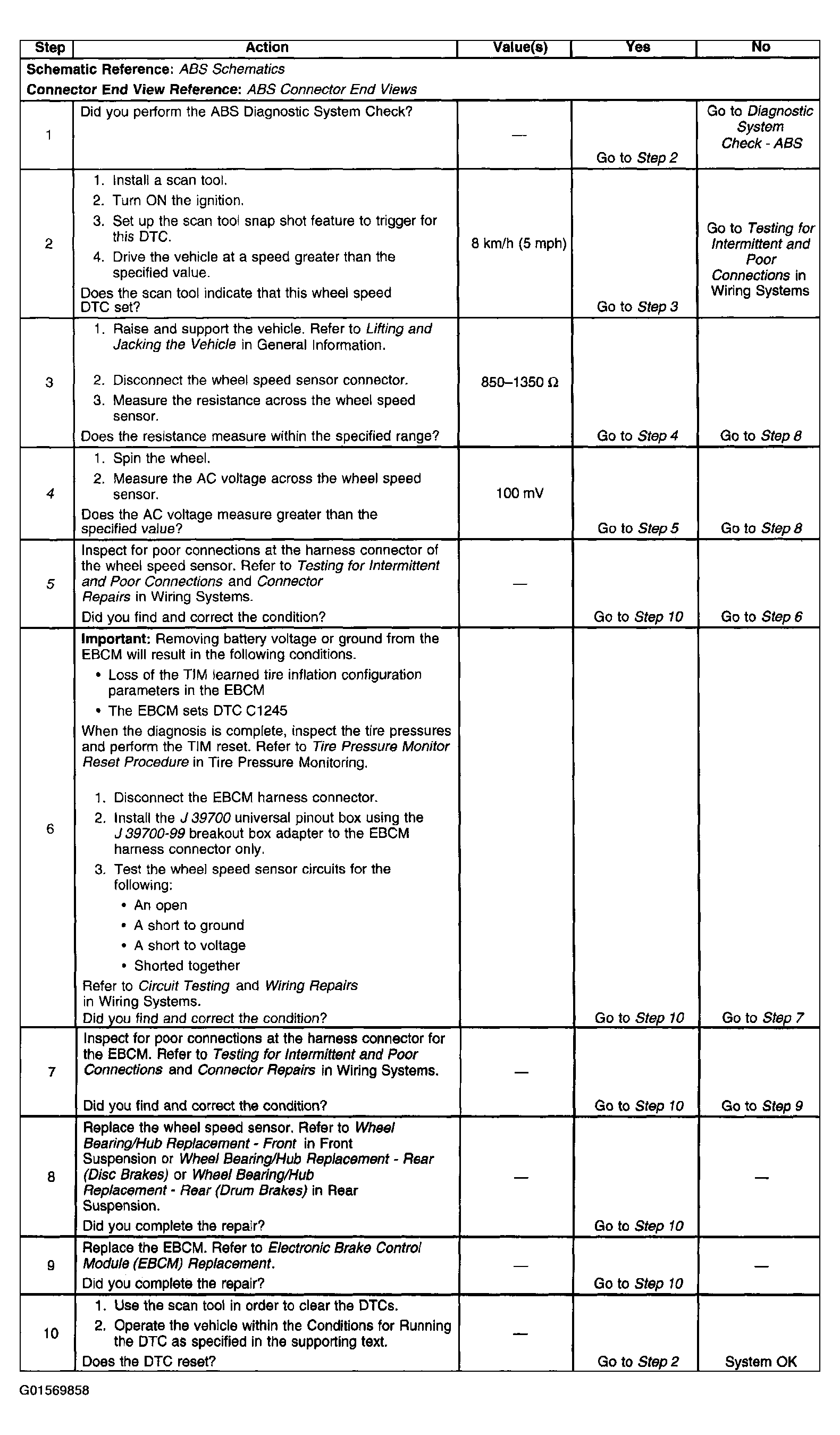

Fig 1: DTC C1221 - C1235
G01569858Courtesy of GENERAL MOTORS CORP.
