Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the heater inlet pipe.

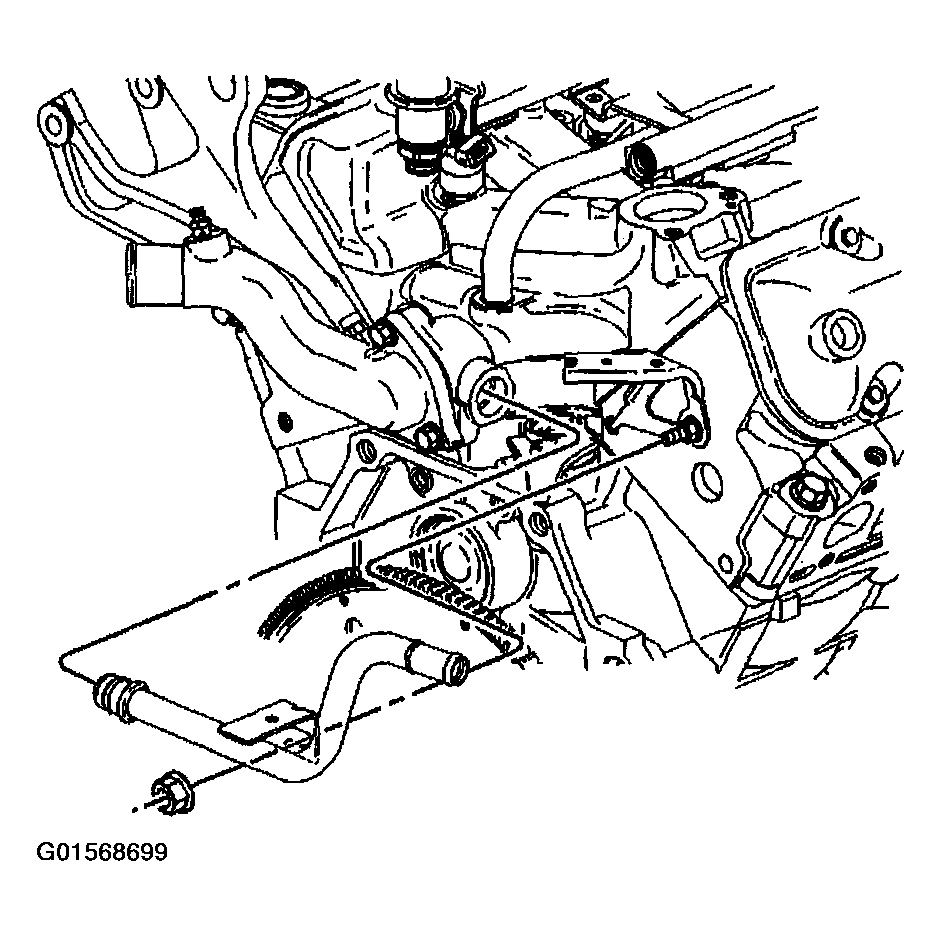

    Fig 1: Installing Heater Inlet Pipe
    G01568699Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the heater inlet pipe mounting nut.

    Tighten

    Tighten the nut to 7 N.m (62 lb in).

  3. Connect the inlet hose (3) to the inlet pipe.
  4. Use J 38185  in order to reposition the heater hose inlet clamp.

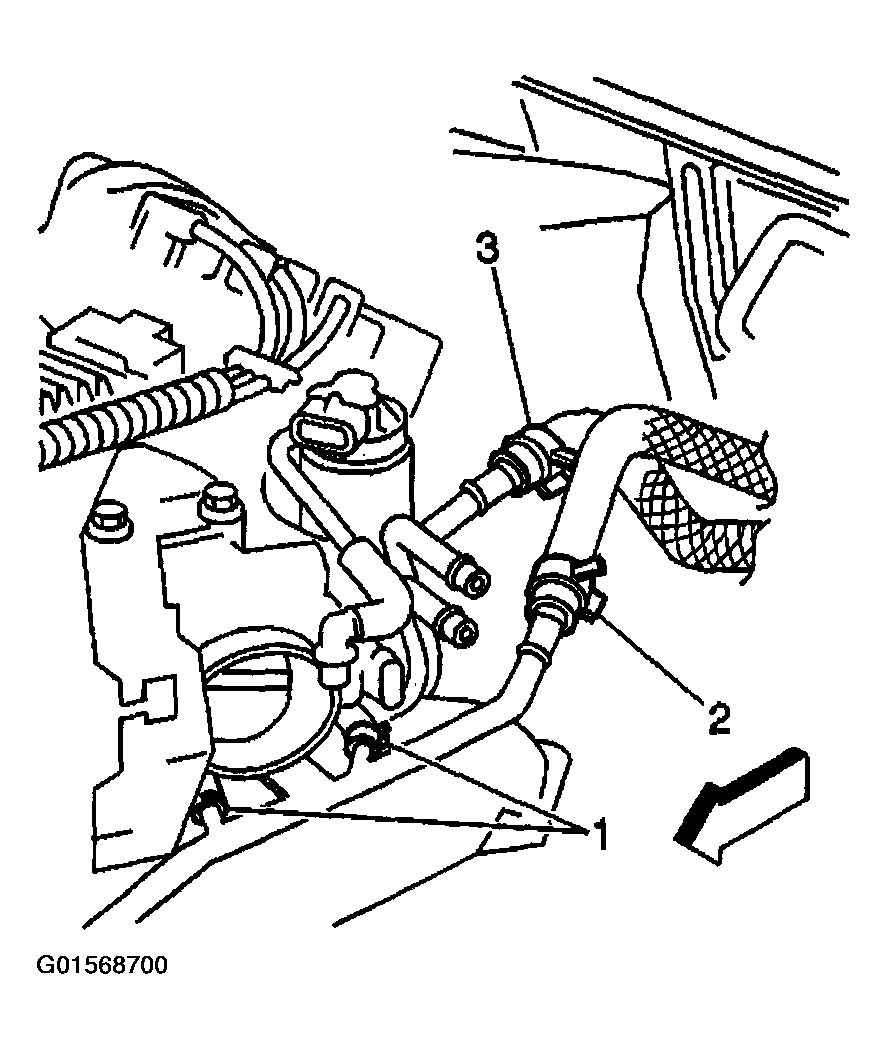

    5. Fig 2: Connecting Inlet Hose To Inlet Pipe
    G01568700Courtesy of GENERAL MOTORS CORP.
  5. Install the air cleaner assembly.
  6. Refill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM in Engine Cooling.
