Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant. Refer to REFRIGERANT RECOVERY AND RECHARGING  .
  2. Remove the air cleaner assembly.
  3. Remove the vacuum brake booster. Refer to VACUUM BRAKE BOOSTER in Disc & Drum.
  4. Remove the condenser tube from the support clip.

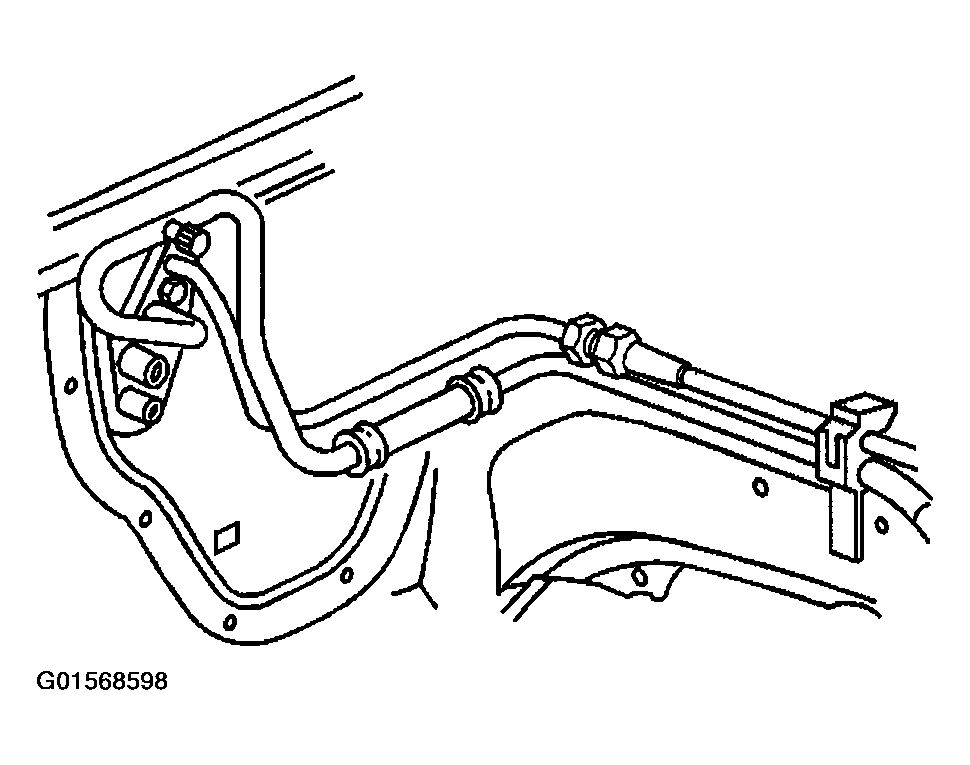

    Fig 1: View Of Condenser Tube & Support Clip
    G01568598Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the evaporator tube nut from the condenser tube.
  6. Disconnect the evaporator tube from the condenser tube.
  7. Remove the accumulator tube block fitting bolt from the evaporator.

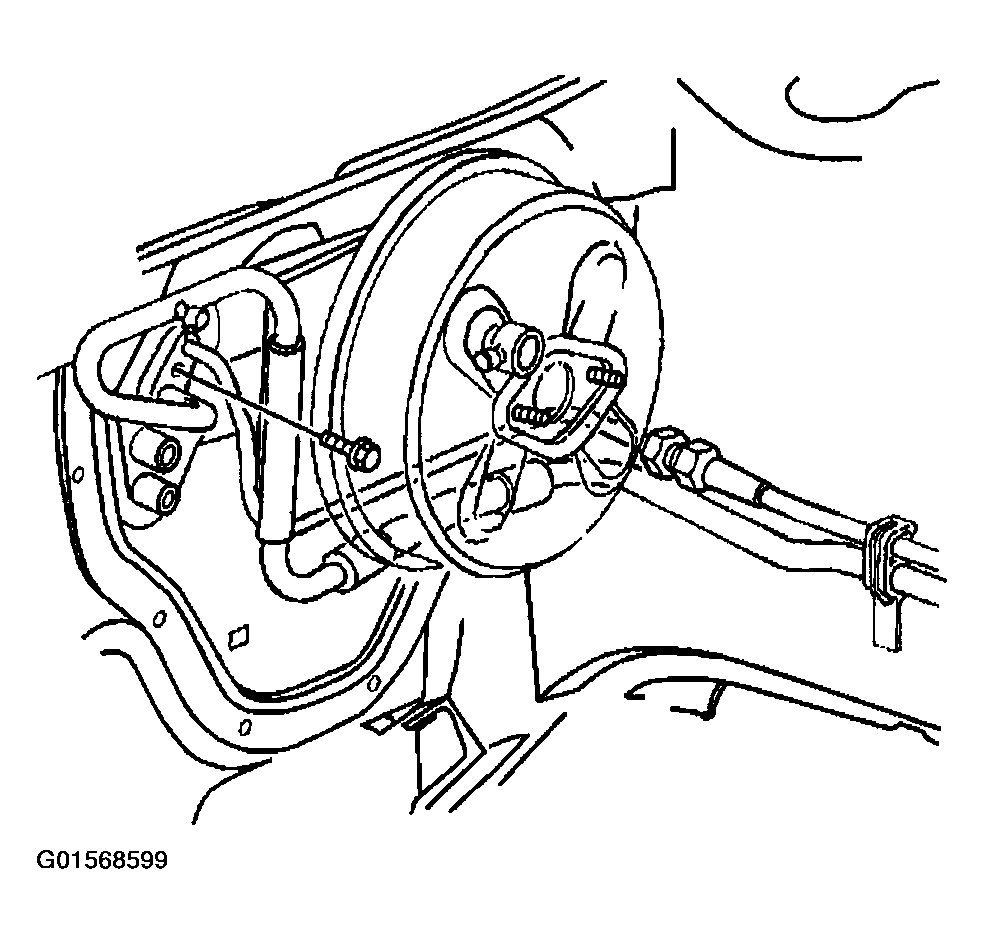

    Fig 2: Removing/Installing Accumulator Tube Block Fitting Bolt
    G01568599Courtesy of GENERAL MOTORS CORP.
  8. Disconnect the evaporator tube from the evaporator.
  9. Remove the O-ring and discard.
