Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the step pad nuts.
  2. Disconnect the retainers.
  3. Remove the step pad from the bumper.

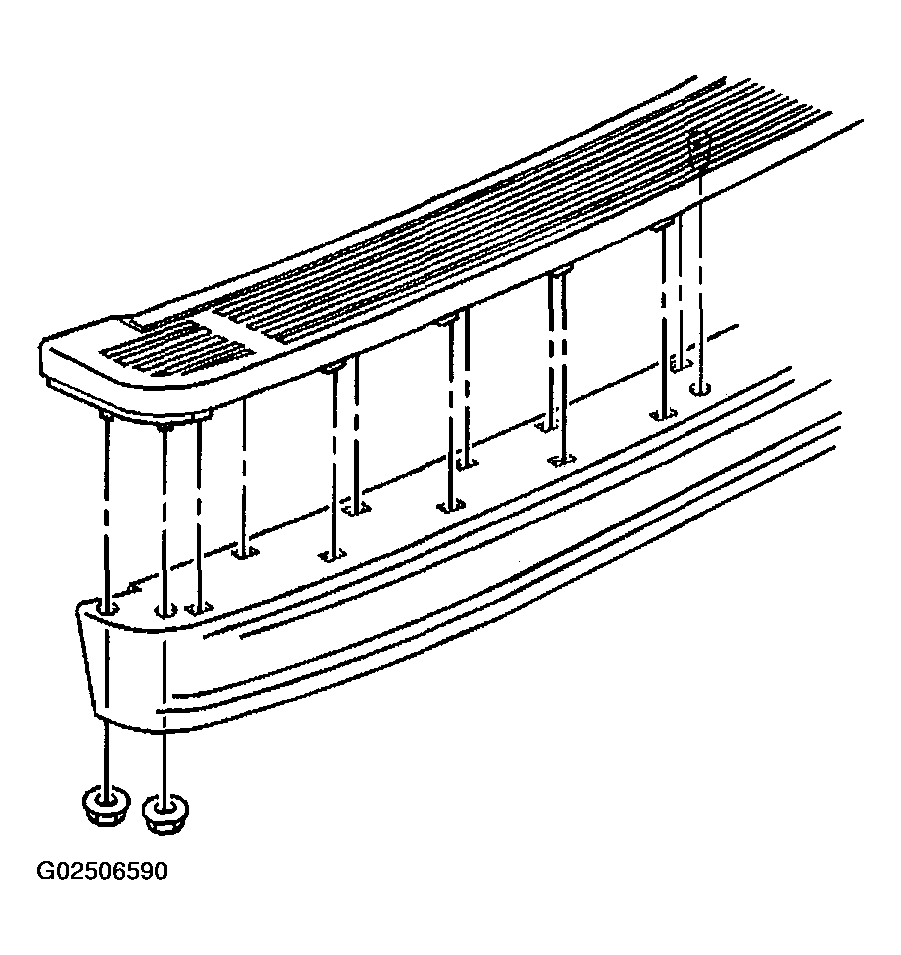

    4. Fig 1: Removing & Installing Rear Bumper Step Pad
    G02506590Courtesy of GENERAL MOTORS CORP.
