Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the center post to the hole in the bumper.
  2. Push in the retainers in order to fully seat the step pad to the bumper.
  3. Install the step pad nuts.

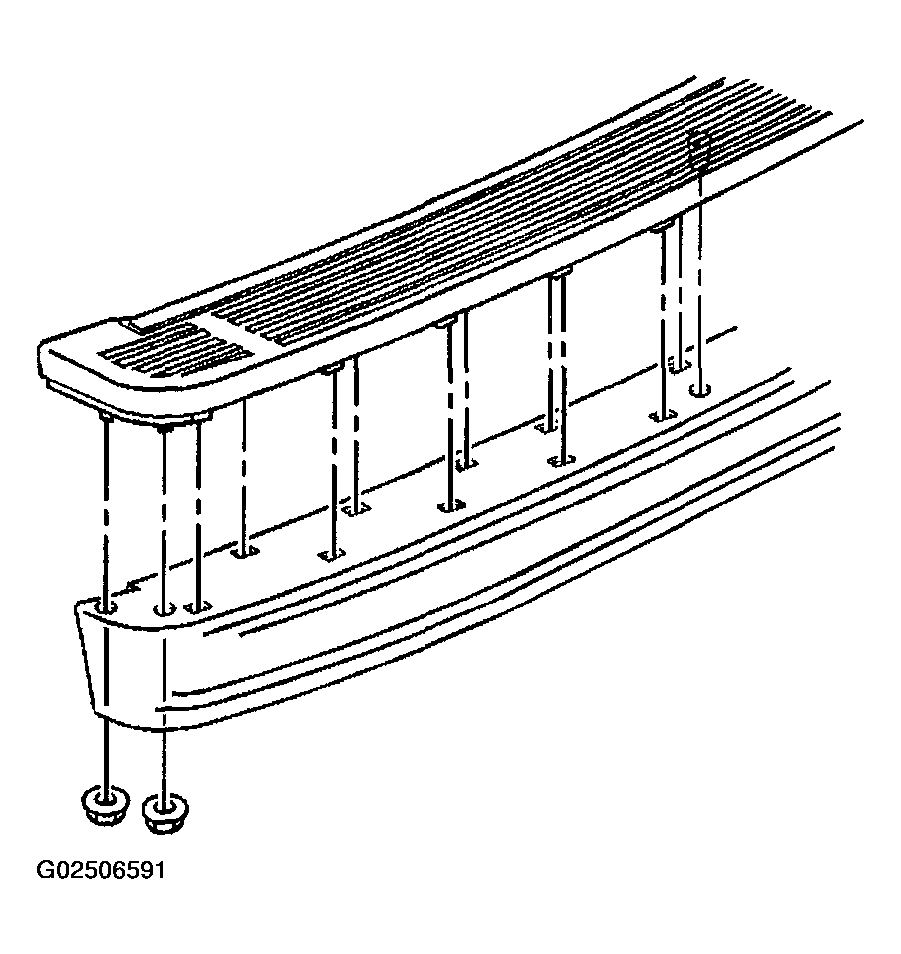

  4. Fig 1: Removing & Installing Rear Bumper Step Pad
    G02506591Courtesy of GENERAL MOTORS CORP.
