Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the grille. Refer to GRILLE REPLACEMENT .
  2. Remove the front bumper fascia. Refer to FASCIA REPLACEMENT - FRONT BUMPER .
  3. Remove the bracket bolts from the impact bar.
  4. Remove the impact bar from the vehicle.

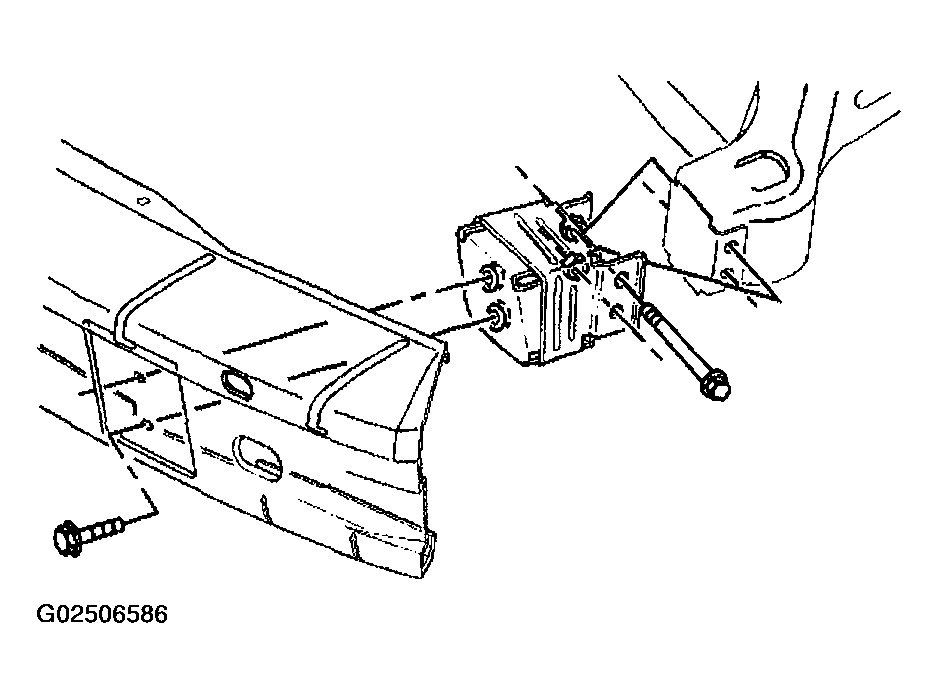

    5. Fig 1: Removing & Installing Impact Bar & Bracket Bolts
    G02506586Courtesy of GENERAL MOTORS CORP.
