Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the top fascia retainers.
  2. Raise and support the vehicle. Refer to LIFTING & JACKING THE VEHICLE .
  3. Disengage the retainers from the underside of the fascia.
  4. Remove the fascia from the impact bar.

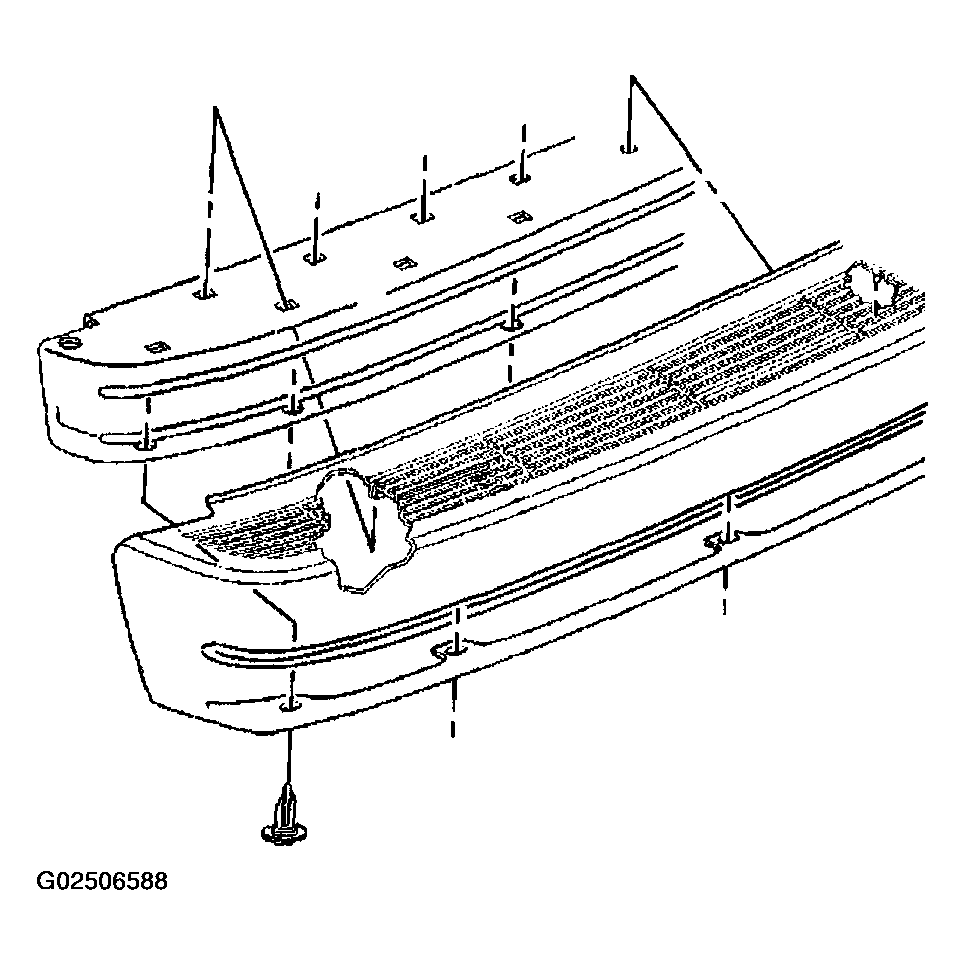

    5. Fig 1: Removing & Installing Rear Bumper Fascia
    G02506588Courtesy of GENERAL MOTORS CORP.
