Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the locator pin of the fascia to the hole in the impact bar.
  2. Press the retainers into the underside of the fascia.
  3. Lower the vehicle.
  4. Install the top fascia retainers.

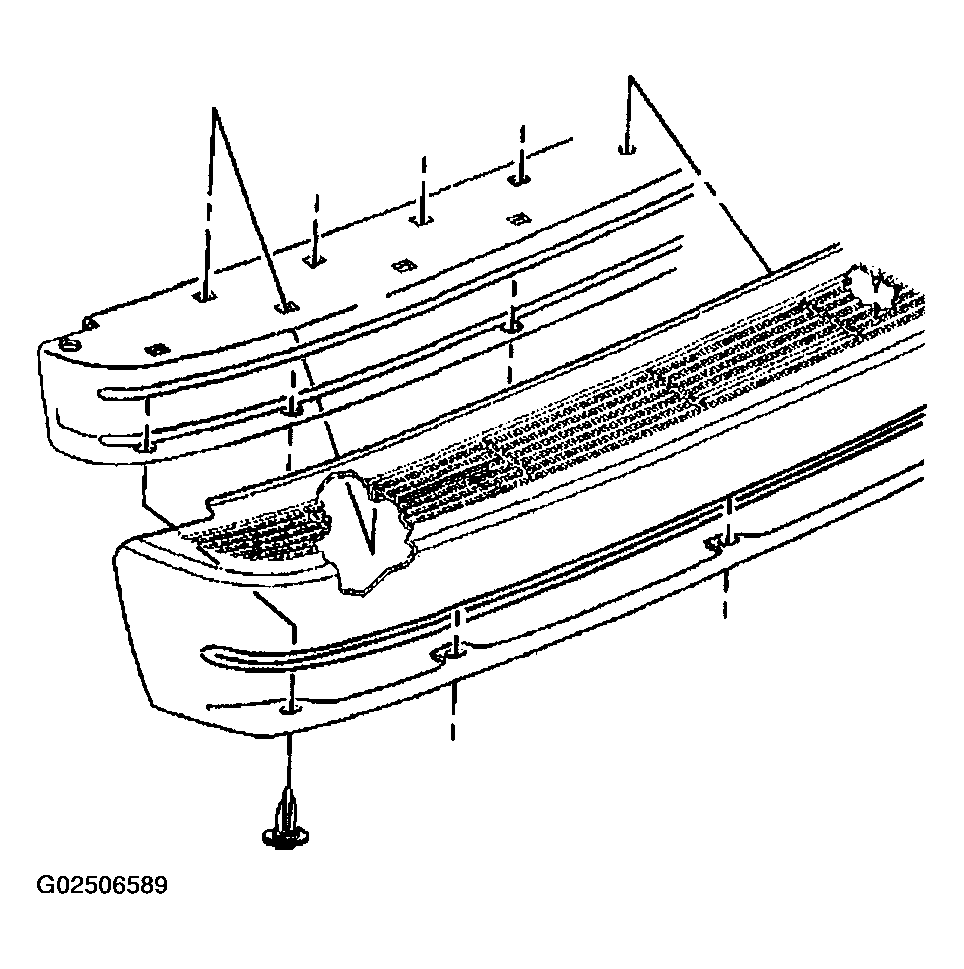

    5. Fig 1: Removing & Installing Rear Bumper Fascia
    G02506589Courtesy of GENERAL MOTORS CORP.
