Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the grille. Refer to GRILLE REPLACEMENT .
  2. Raise and support the vehicle. Refer to LIFTING & JACKING THE VEHICLE .
  3. Remove the front bumper fascia to bumper lower brace bolts.

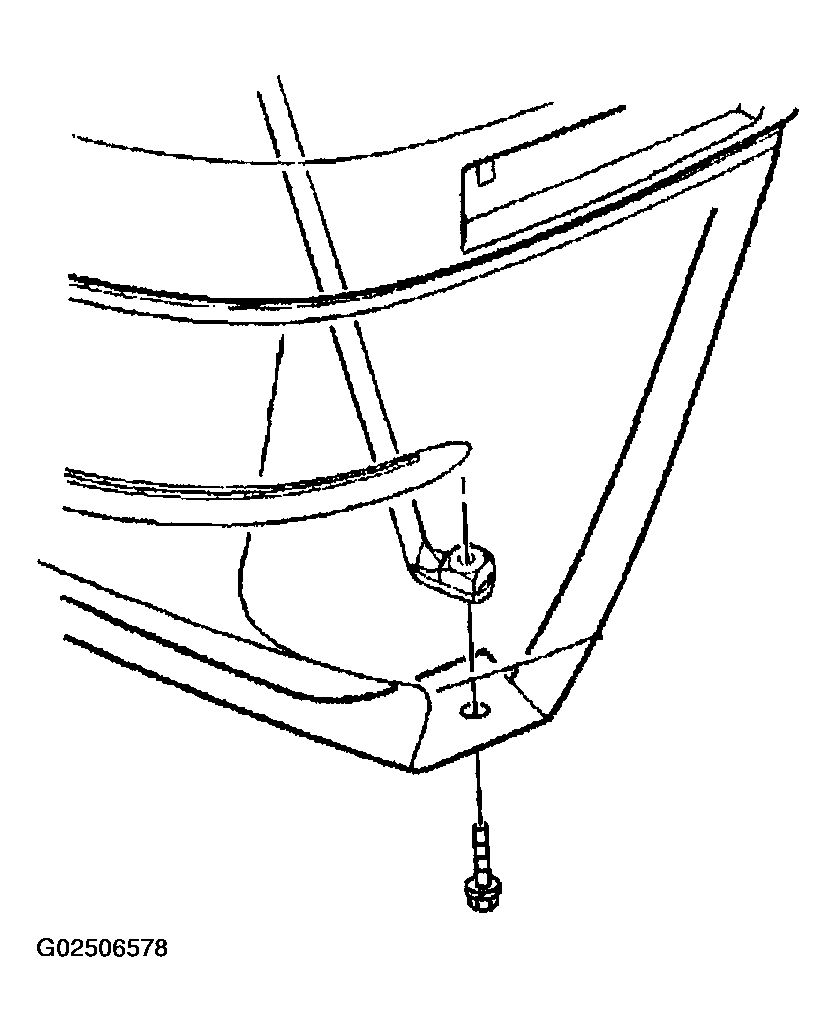

    4. Fig 1: Removing & Installing Front Bumper Fascia-To-Bumper Lower Brace Bolts
    G02506578Courtesy of GENERAL MOTORS CORP.
  4. Remove the front bumper fascia to fender bolts.

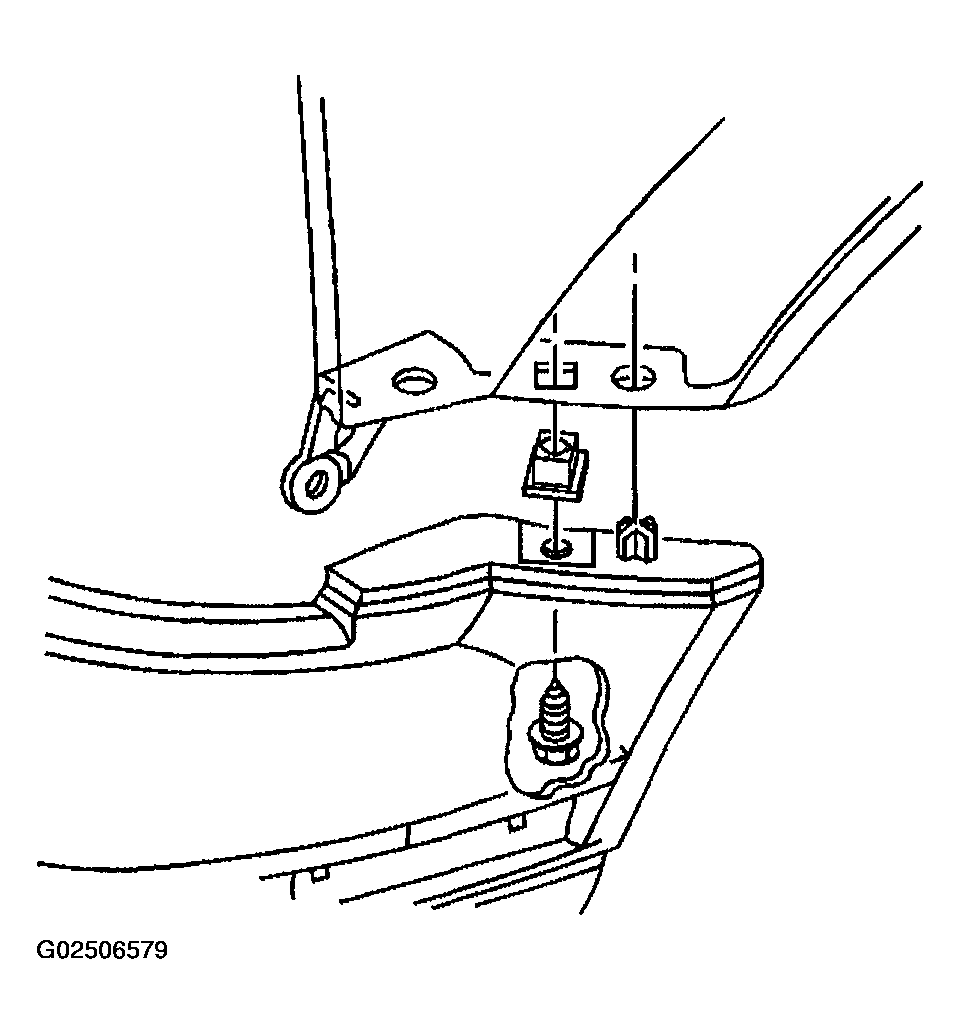

    5. Fig 2: Removing & Installing Front Bumper Fascia-To-Fender Bolts
    G02506579Courtesy of GENERAL MOTORS CORP.
  5. Remove the front bumper fascia to impact bar push-in retainers.
    6. Fig 3: Removing & Installing Front Bumper Fascia-To-Impact Bar Push-In Retainers
    G02506580Courtesy of GENERAL MOTORS CORP.
  6. Remove the front bumper fascia from the impact bar.

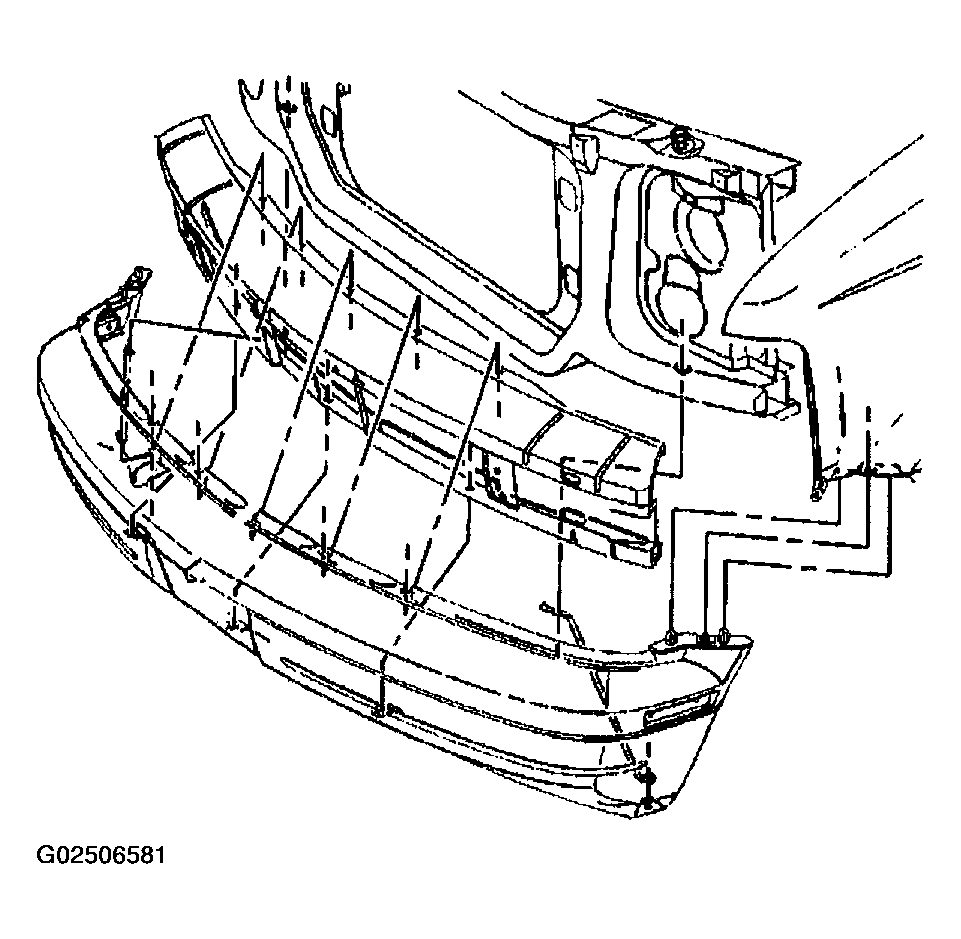

    7. Fig 4: Removing & Installing Front Bumper Fascia
    G02506581Courtesy of GENERAL MOTORS CORP.
