Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

Install the front bumper fascia to the impact bar.

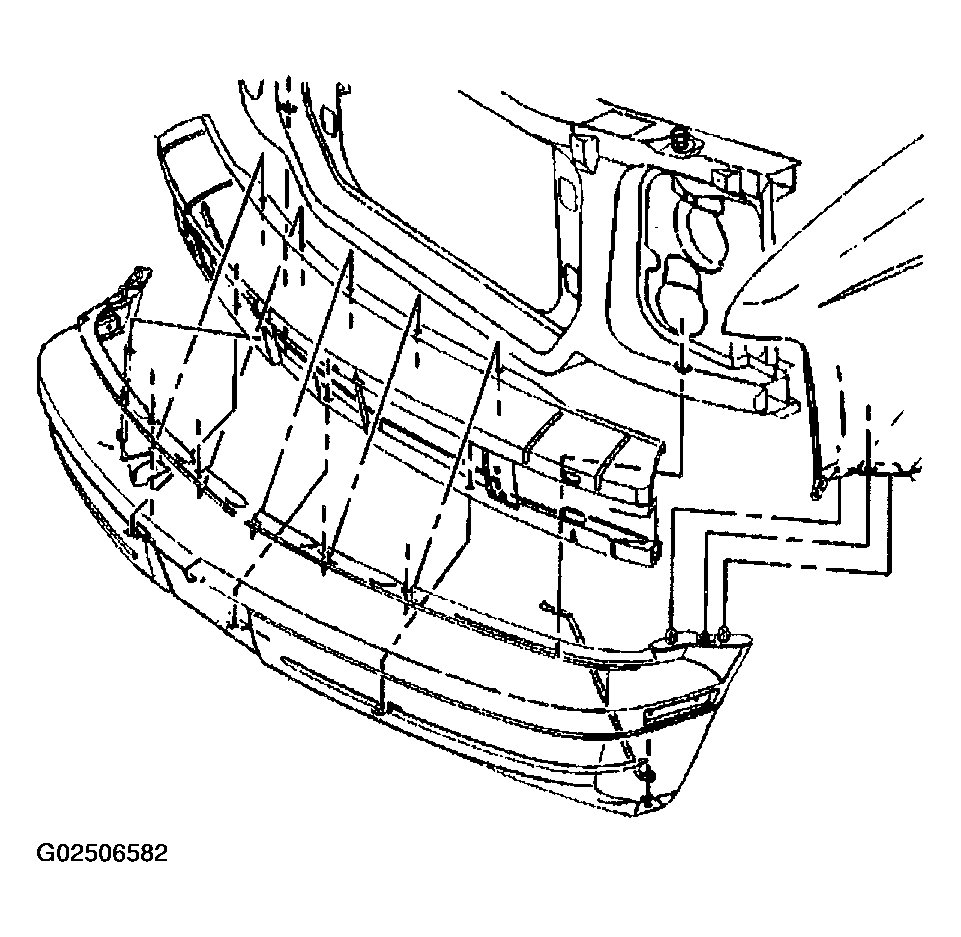

Fig 1: Removing & Installing Front Bumper Fascia

Courtesy of GENERAL MOTORS CORP.

Install the front bumper fascia to impact bar push-in retainers.

Fig 2: Removing & Installing Front Bumper Fascia-To-Impact Bar Push-In Retainers

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .

Install the front bumper fascia to the fender bolts. Tighten: Tighten the bolts to 6 N.m (53 lb in).

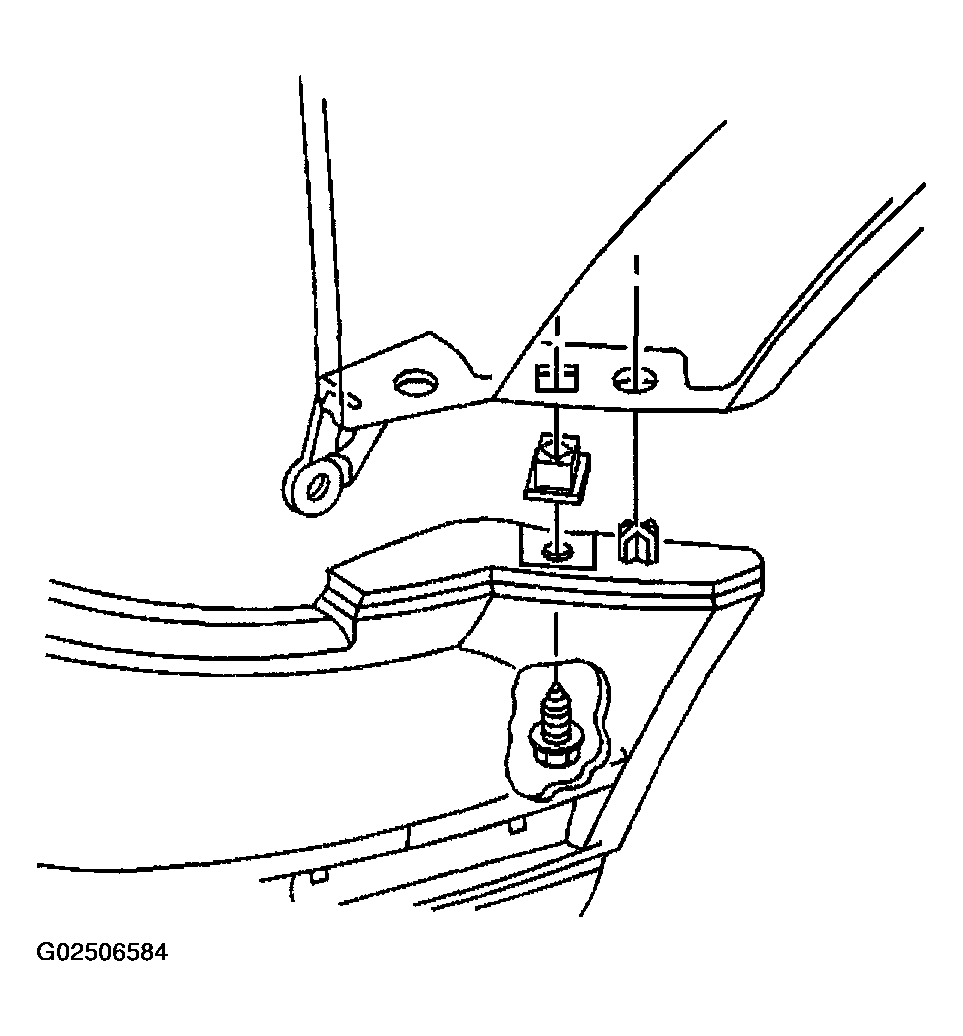

Fig 3: Removing & Installing Front Bumper Fascia-To-Fender Bolts

Courtesy of GENERAL MOTORS CORP.

Install the front bumper fascia to the bumper lower brace bolts. Tighten: Tighten the bolts to 6 N.m (53 lb in).

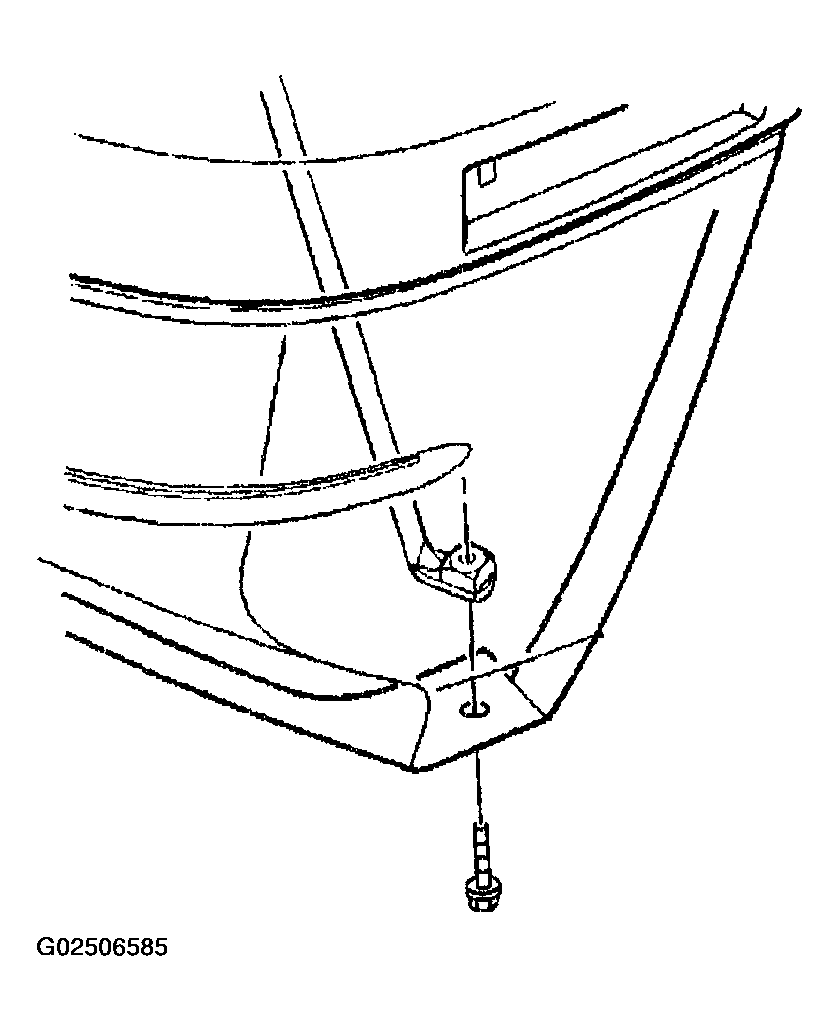

Fig 4: Removing & Installing Front Bumper Fascia-To-Bumper Lower Brace Bolts

Courtesy of GENERAL MOTORS CORP.

Install the grille. Refer to GRILLE REPLACEMENT .
Lower the vehicle.
