Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING & JACKING THE VEHICLE .
  2. Remove the brace to frame bolts.
  3. Remove the bracket to frame bolts.
  4. Remove the bumper from the vehicle.
  5. Remove the brace to bumper nuts.
  6. Remove the bracket to bumper bolts and nuts.
  7. Remove the bracket from the bumper.

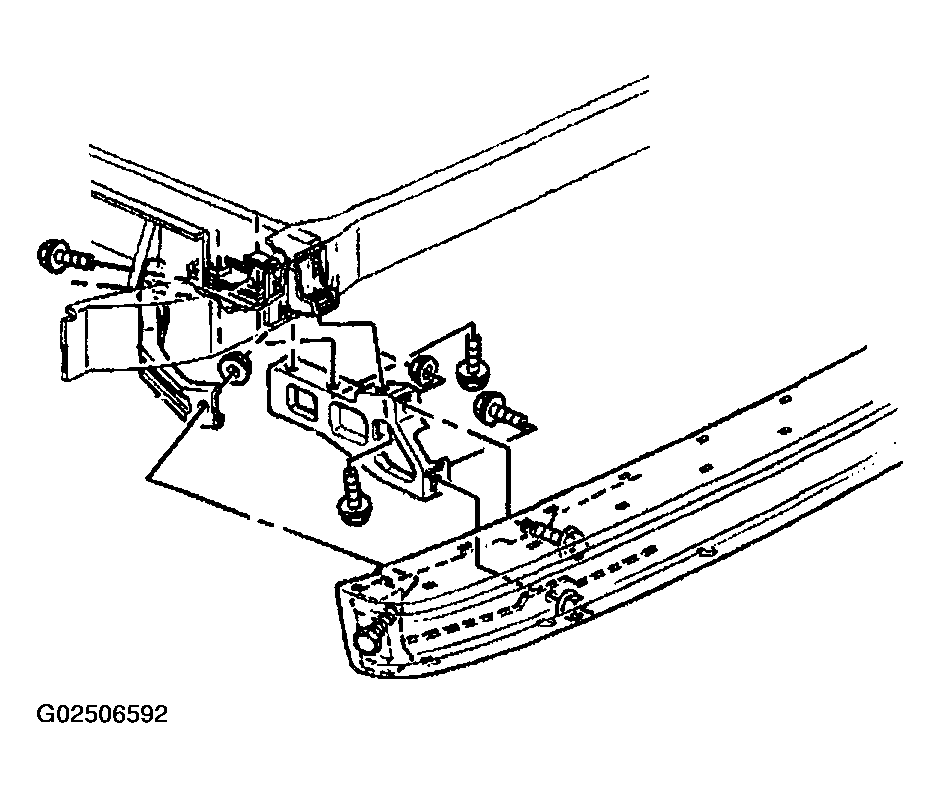

    8. Fig 1: Removing & Installing Rear Bumper
    G02506592Courtesy of GENERAL MOTORS CORP.
