Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat belt guide cover (1).
  2. Remove the rear seat armrest. Refer to ARMREST REPLACEMENT-REAR SEAT (60/40 SPLIT) .

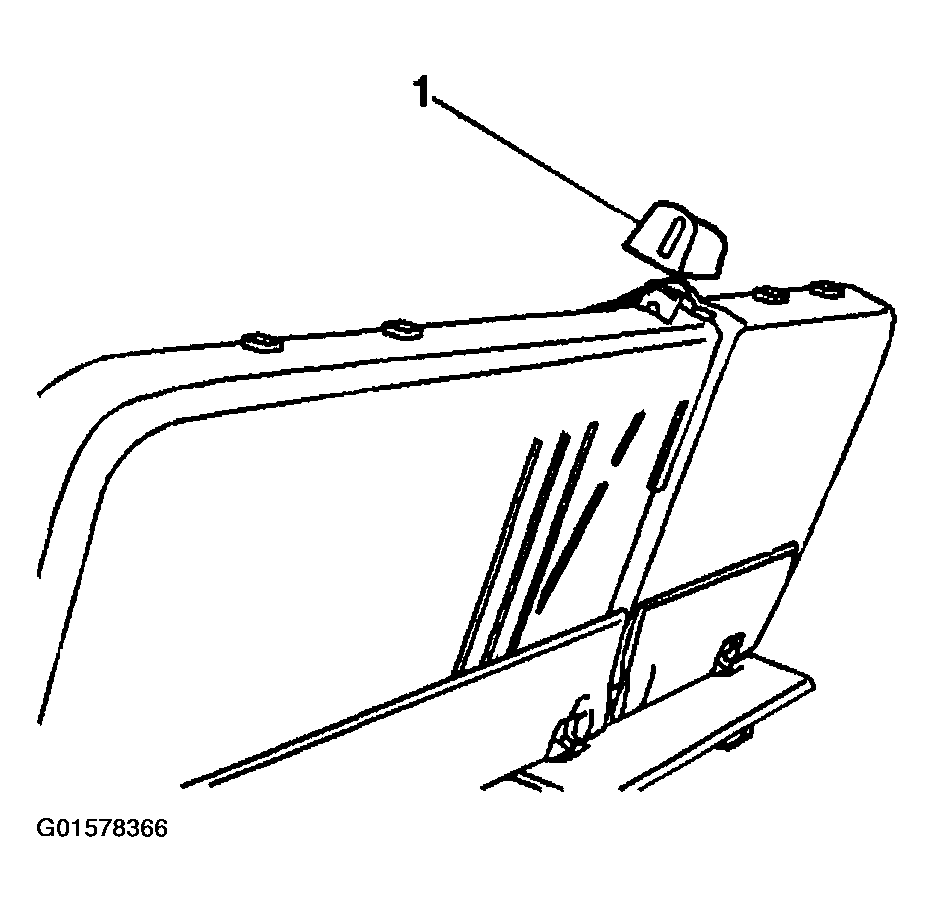

    Fig 1: Removing Rear Center Seat Belt Guide Cover
    G01578366Courtesy of GENERAL MOTORS CORP.
  3. Release the J-Clip from under the center armrest.
  4. Remove the nut from the seat belt retractor.

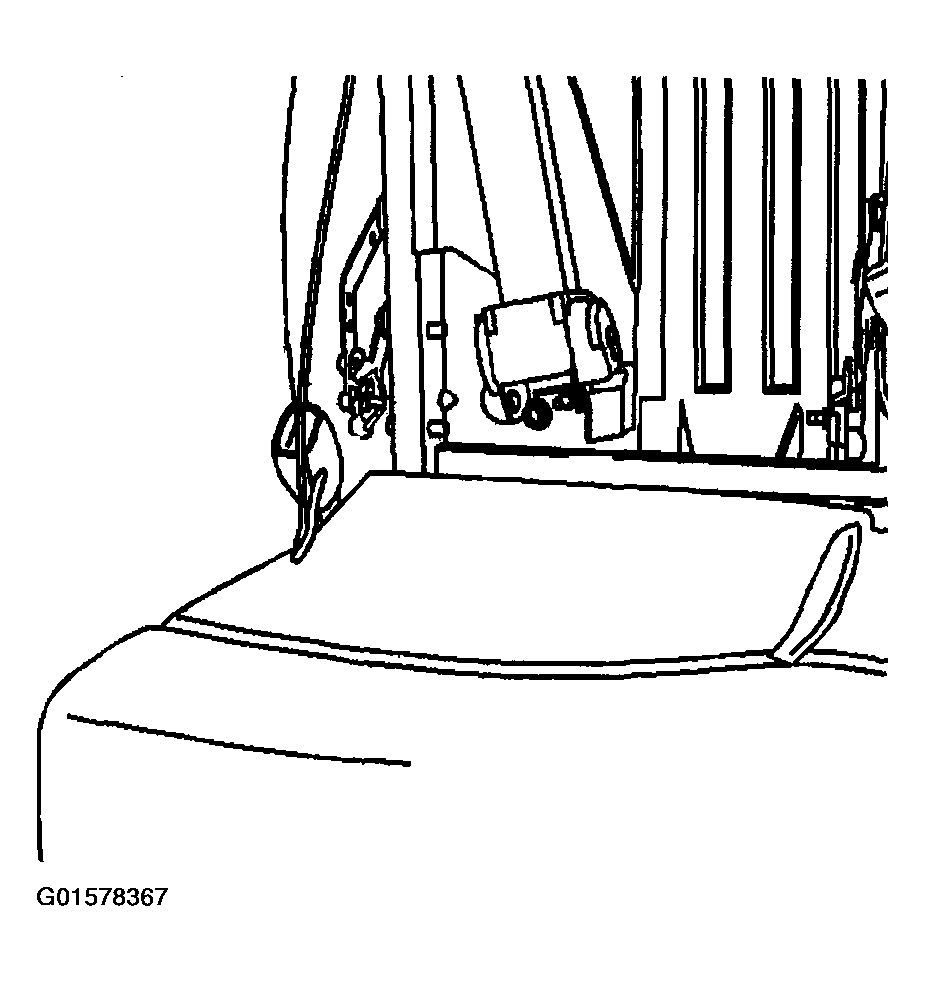

    Fig 2: Removing Rear Center Seat Belt Retractor Nut
    G01578367Courtesy of GENERAL MOTORS CORP.
  5. Remove the bolt (1) from the seat belt anchor.

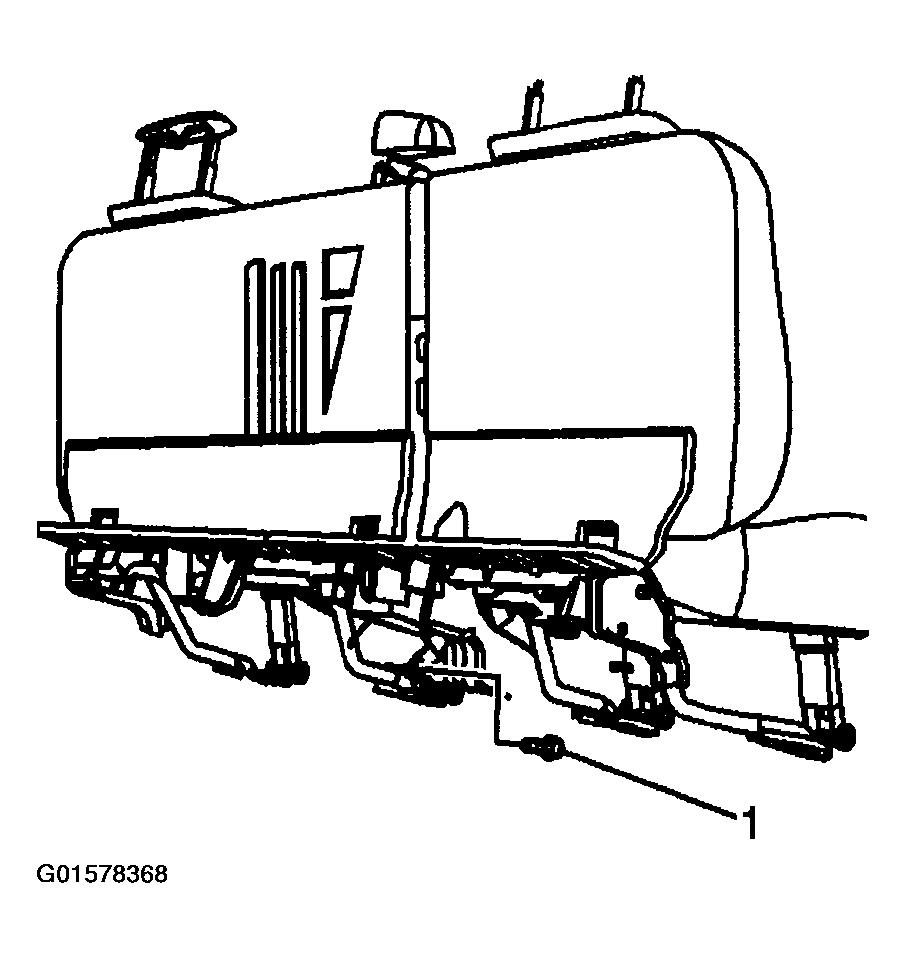

    Fig 3: Removing Rear Center Seat Belt Anchor Bolt
    G01578368Courtesy of GENERAL MOTORS CORP.
