Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull the seat belt buckles through the rear seat cushion.

    Fold the rear seat up.

  2. Remove the rear seat belt buckle nuts.
  3. Remove the buckle assembly.

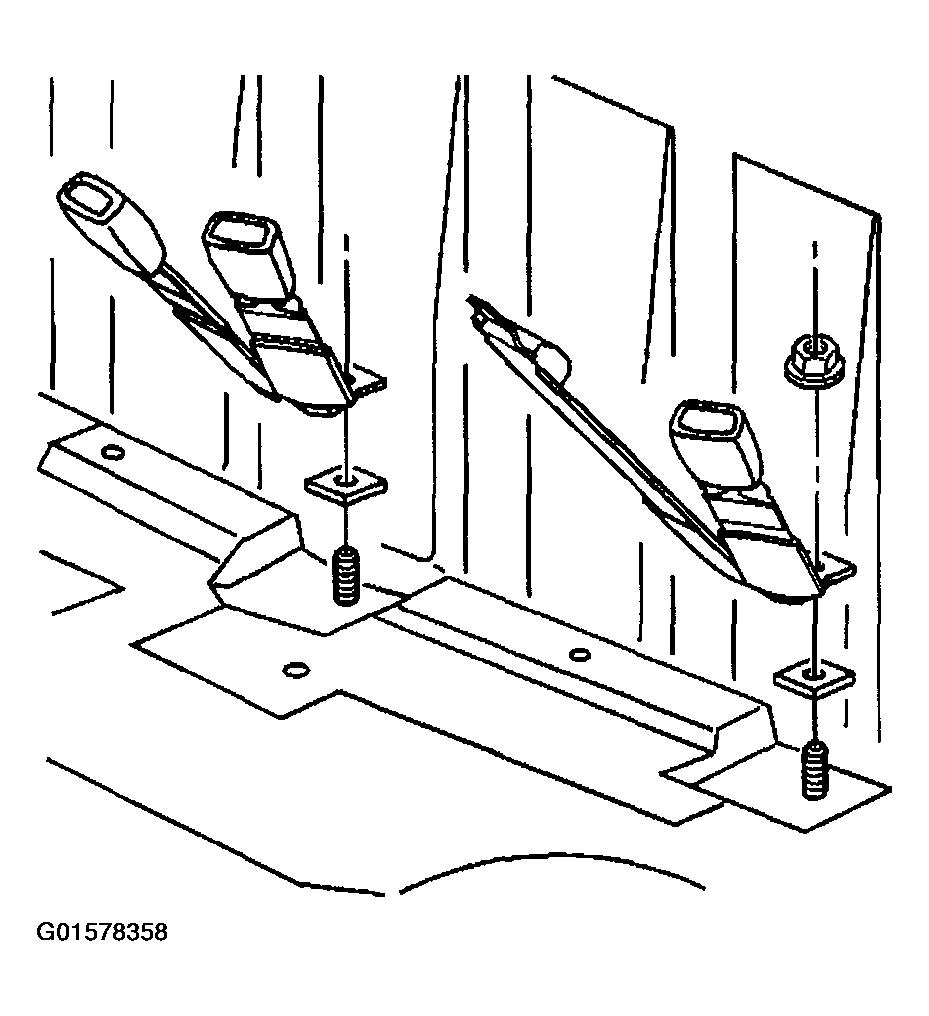

Fig 1: Rear Seat Belt Buckle & Latch (Extended Cab)
G01578358Courtesy of GENERAL MOTORS CORP.
