Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fold the rear seat to the open position.
  2. Remove the two bolts that retain the buckle assembly to the back of the seat frame.
  3. Remove the nut that retains the buckle assembly to the floor stud.
  4. Remove the buckle assembly from the rear seat.

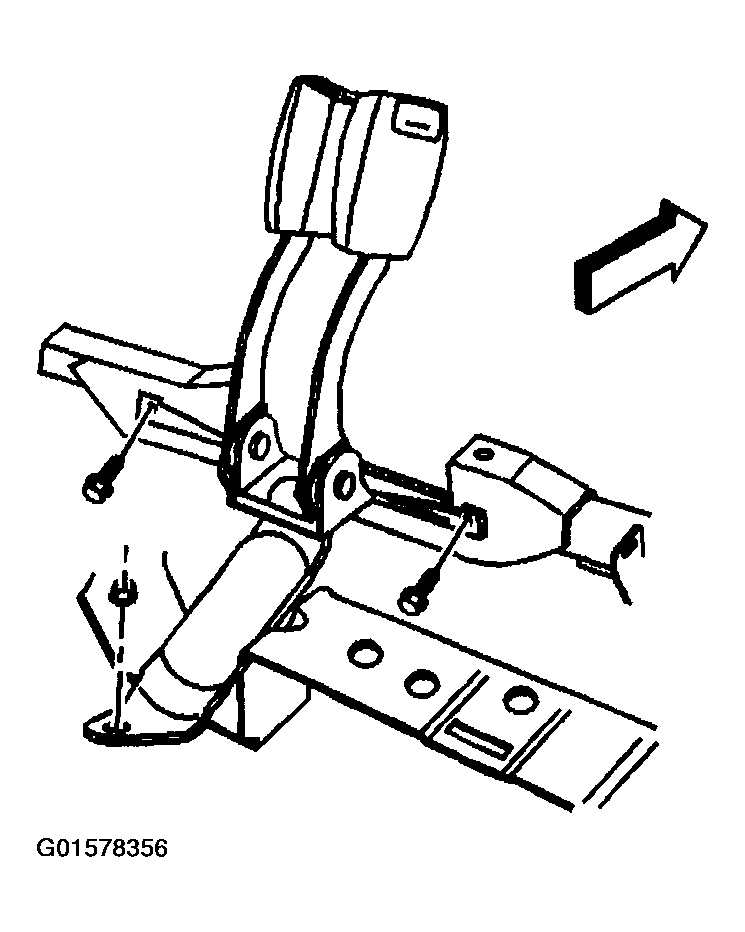

Fig 1: Center Rear Seat Belt Buckle
G01578356Courtesy of GENERAL MOTORS CORP.
