Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the buckle assembly to the rear seat.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the nut that retains the buckle assembly to the floor stud.

    Tighten

    Tighten the nut to 52 N.m (38 lb ft).

  3. Install the two bolts that retain the buckle assembly to the back of the seat frame.

    Tighten

    Tighten the bolts to 3 N.m (26 lb in).

  4. Fold the rear seat to the closed position.

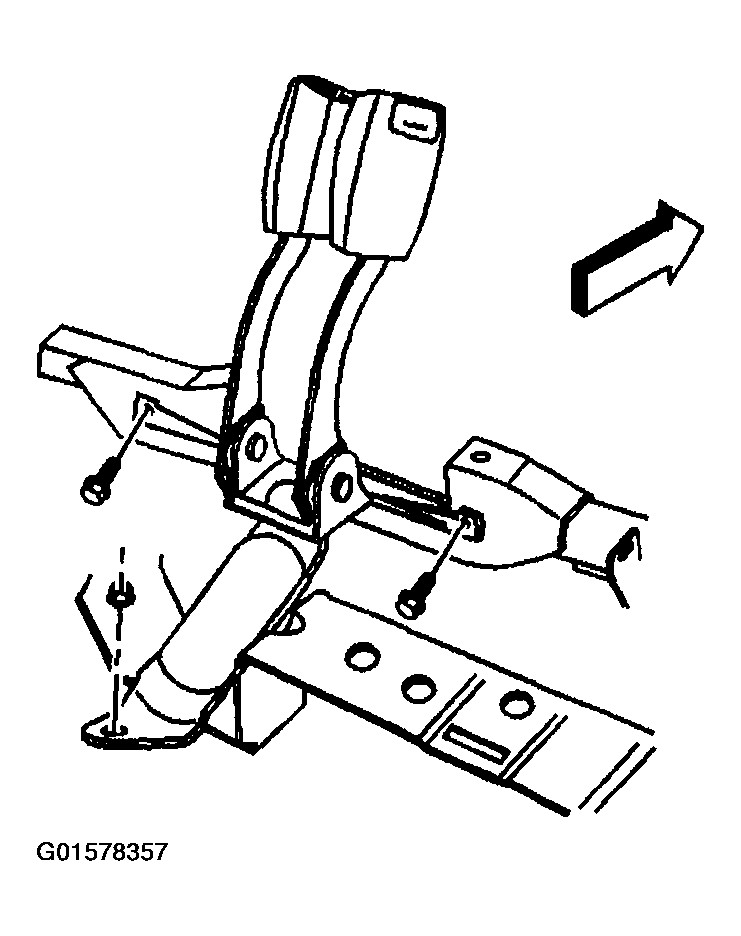

    Fig 1: Center Rear Seat Belt Buckle
    G01578357Courtesy of GENERAL MOTORS CORP.
