Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trim panel. Refer to Trim Panel Replacement - Side Rear Door (Crew Cab)   .
  2. Using a flat-bladed tool, separate the bond between the sealer and the door.
  3. Pull the waterproof sealing tape from the deflector.
  4. Remove the water deflector.

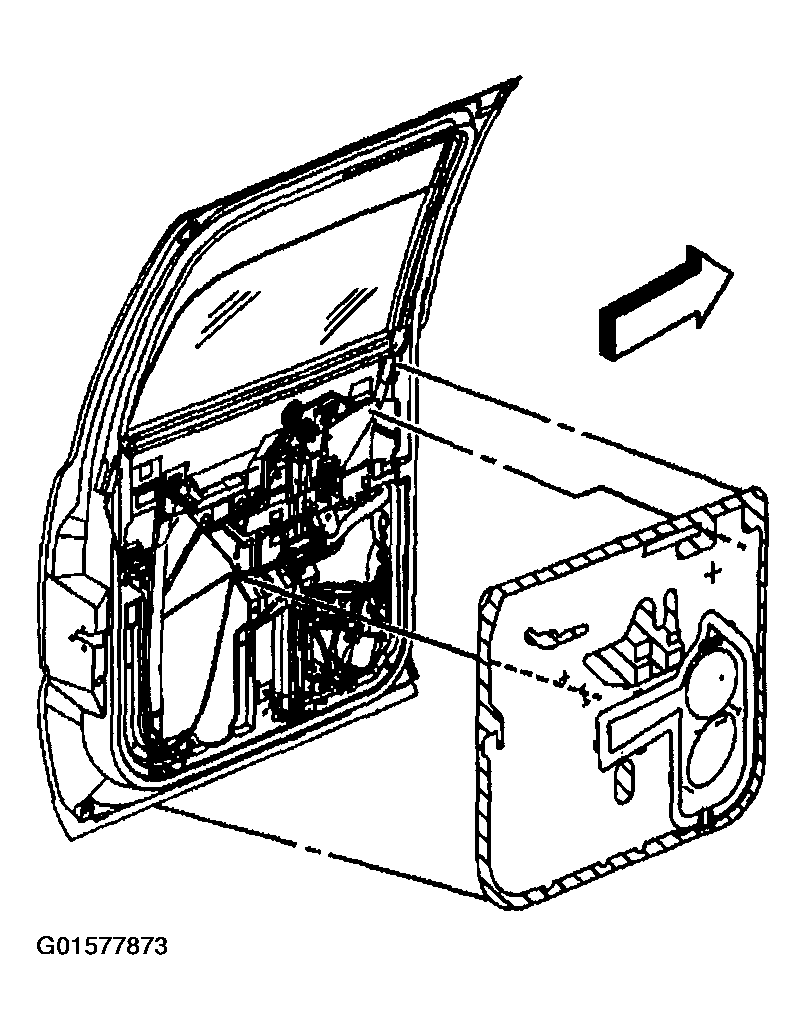

    Fig 1: Removing Water Deflector - Rear Door (Crew Cab)
    G01577873Courtesy of GENERAL MOTORS CORP.
