Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door handle bezel. Refer to Handle Bezel Replacement - Inside   .
  2. Remove the window-regulator handle, if equipped. Refer to Window Handle Replacement   .
  3. Using a flat-bladed tool, remove the reflector lamp from the trim panel, and disconnect the electrical connector, if required.
  4. Remove the manual lock lever from the trim panel using a flat-bladed tool.
  5. Remove the two trim panel screws.
  6. Remove the trim panel from the door by carefully sliding the panel upward then outward.
  7. Disconnect the electrical connectors.

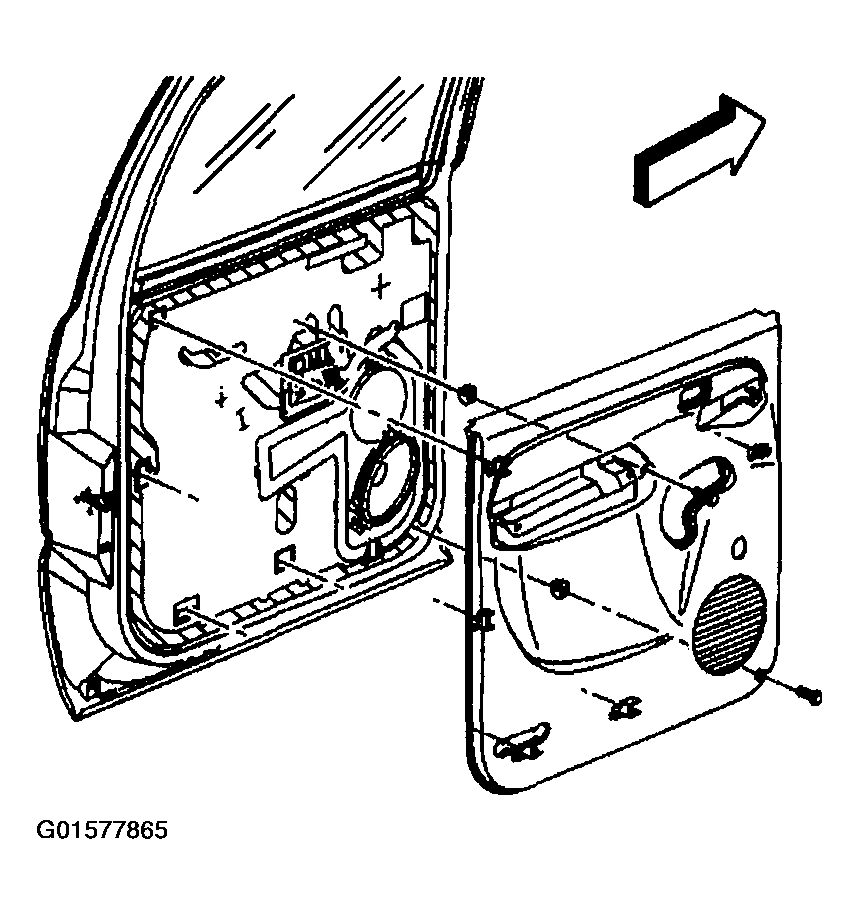

    Fig 1: Trim Panel - Side Rear Door
    G01577865Courtesy of GENERAL MOTORS CORP.
