Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the upper door striker to the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the upper door striker bolts.

    Tighten

    Tighten the upper door striker bolts to 24 N.m (18 lb ft).

  3. Close the door and inspect for proper operation.

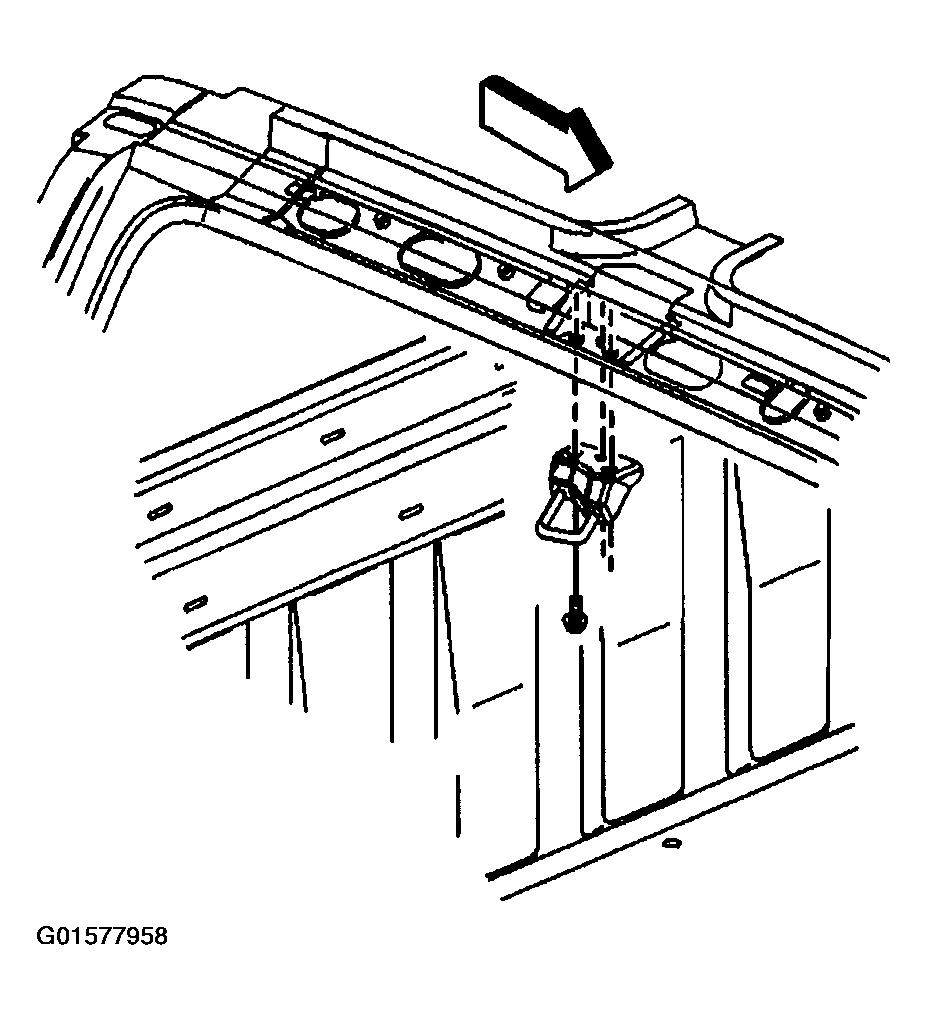

    Fig 1: Installing Upper Striker
    G01577958Courtesy of GENERAL MOTORS CORP.
