Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the window.
  2. Remove the door trim panel. Refer to Trim Panel Replacement - Side Rear Door (Crew Cab)   .
  3. Remove the water deflector. Refer to Water Deflector Replacement - Rear Door (Crew Cab)   .
  4. Disconnect the inside door lock rod from the handle retainer clip.

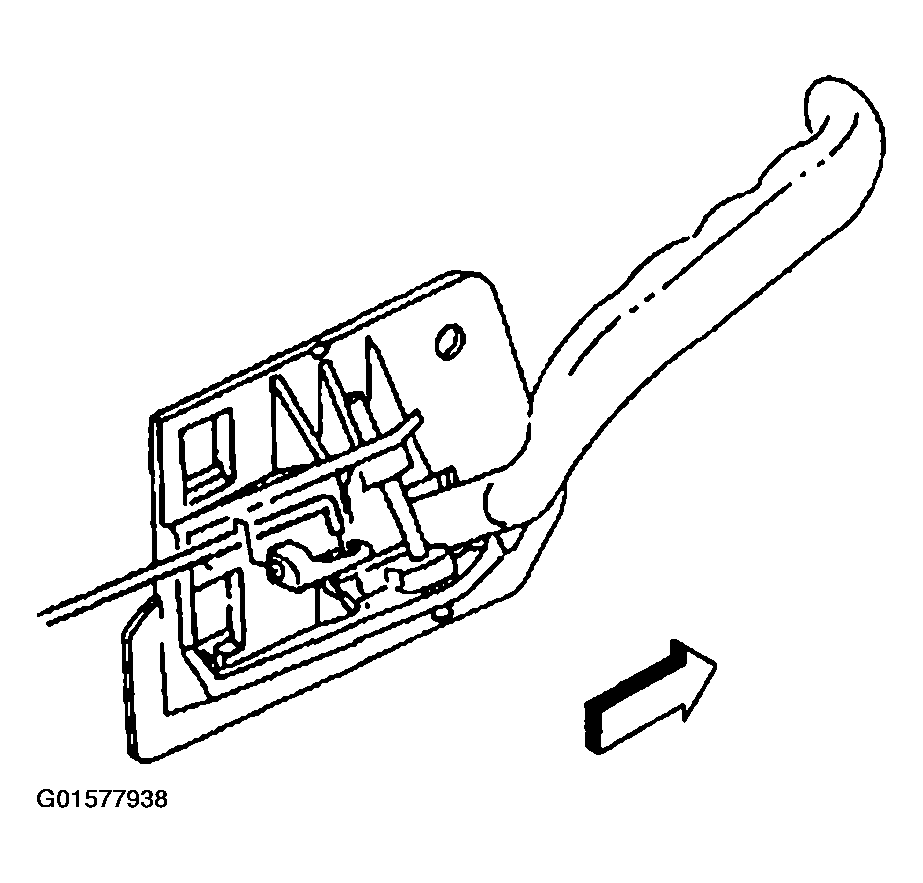

    Fig 1: Disconnecting Inside Door Lock Rod From Handle Retainer Clip
    G01577938Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the manual door lock rod from the door retainer clips.

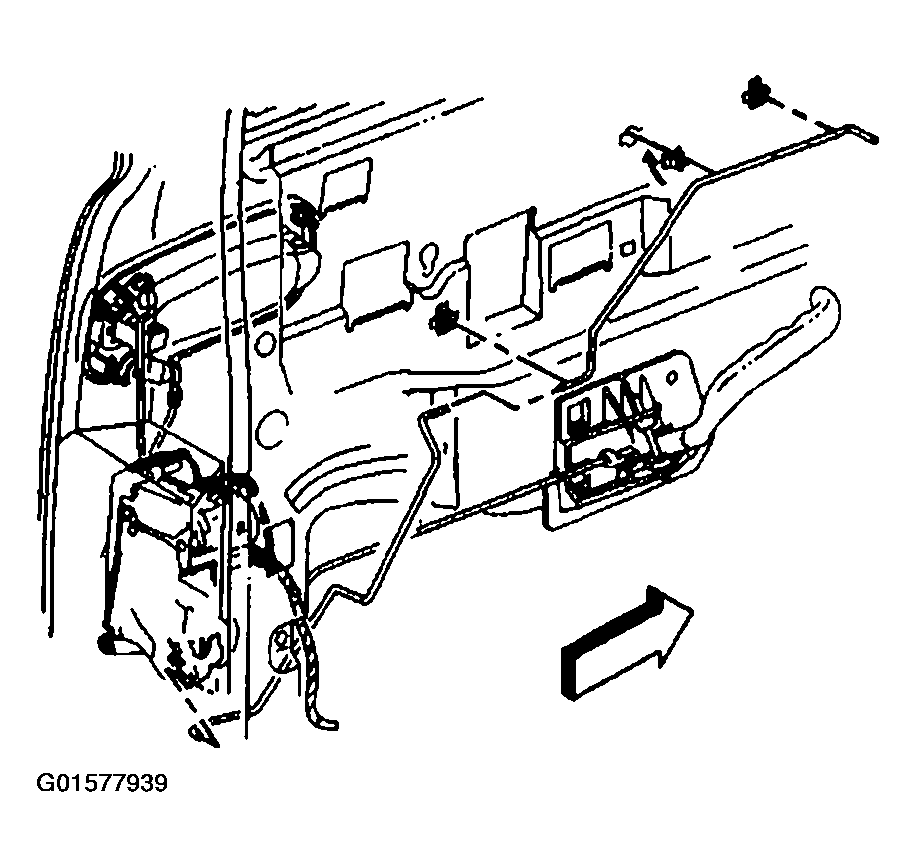

    Fig 2: Disconnecting Manual Door Lock Rod From Door Retainer Clips
    G01577939Courtesy of GENERAL MOTORS CORP.
  6. Remove the rubber plug in order to disengage the outside handle rod retainer.

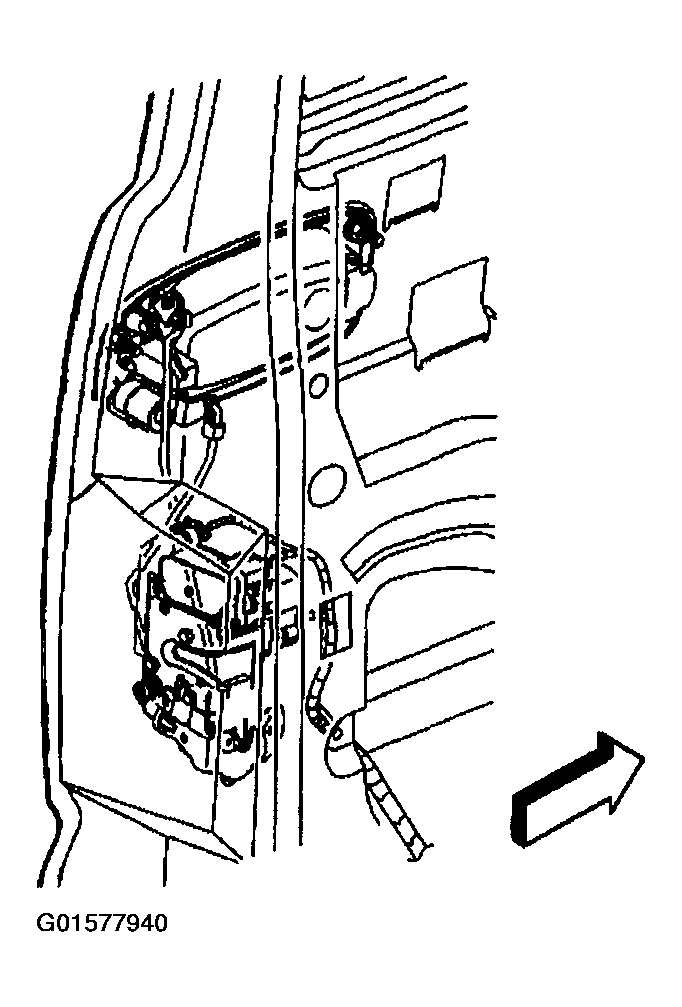

    Fig 3: Removing Rubber Plug To Disengage Outside Handle Rod Retainer
    G01577940Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the cylinder lock rod (1).
  8. Remove the bolts (2) which retain the door lock actuator to the door.
  9. Remove the door lock actuator and control rods as an assembly.
  10. Disconnect the electrical connector from the door lock actuator, if equipped.
  11. Remove the control rods as necessary.

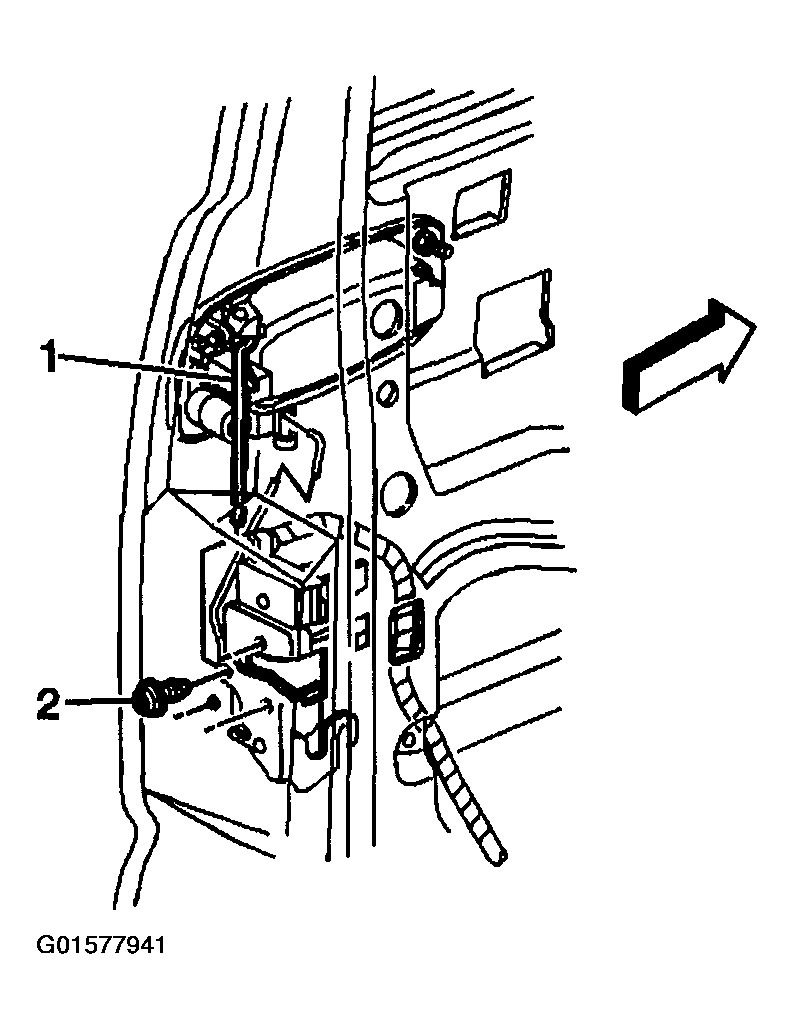

    Fig 4: Removing Bolts Retaining Door Lock Actuator To Door
    G01577941Courtesy of GENERAL MOTORS CORP.
