Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use the J 25070  in order to heat the molding and the surrounding sheet metal to 82-93°C (180-200°F).
  2. Remove the roof joint molding.

    Use a flat bladed tool in order to pry off the molding between the sealer and the joint. Use pliers or a similar tool in a order to handle the hot molding and pull the molding loose. The molding and the sealer should come off in 1 piece.

    Do not damage the paint on the cab.

  3. Clean the joint in order to remove any remaining sealer. Sealer could interfere with the fit of the replacement molding.

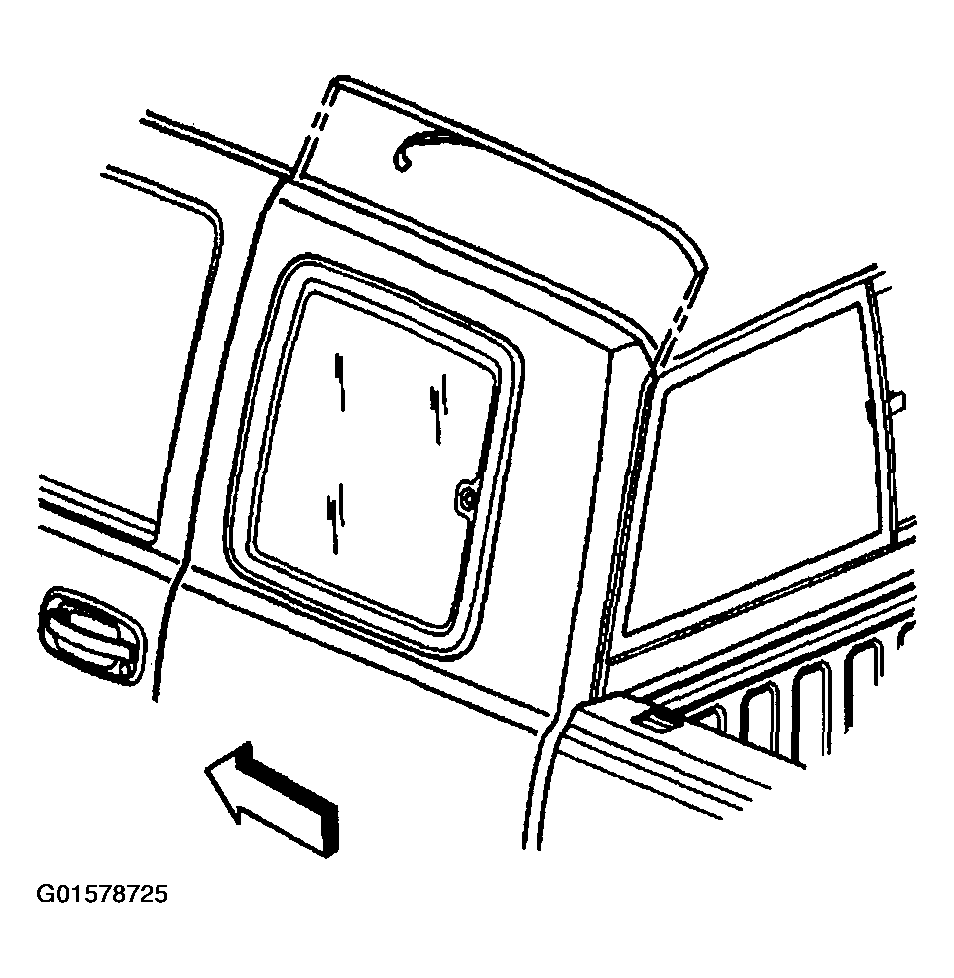

    Fig 1: Roof Joint Molding (Extended Cab)
    G01578725Courtesy of GENERAL MOTORS CORP.
