Test Description

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

9. The horns need maximum, current flow to operate properly. A high resistance-greater than 0.5 Ω-in the horn control circuit or the horn ground circuit could cause operating problems with the horns. Inspect the circuits for faults that would restrict current flow.

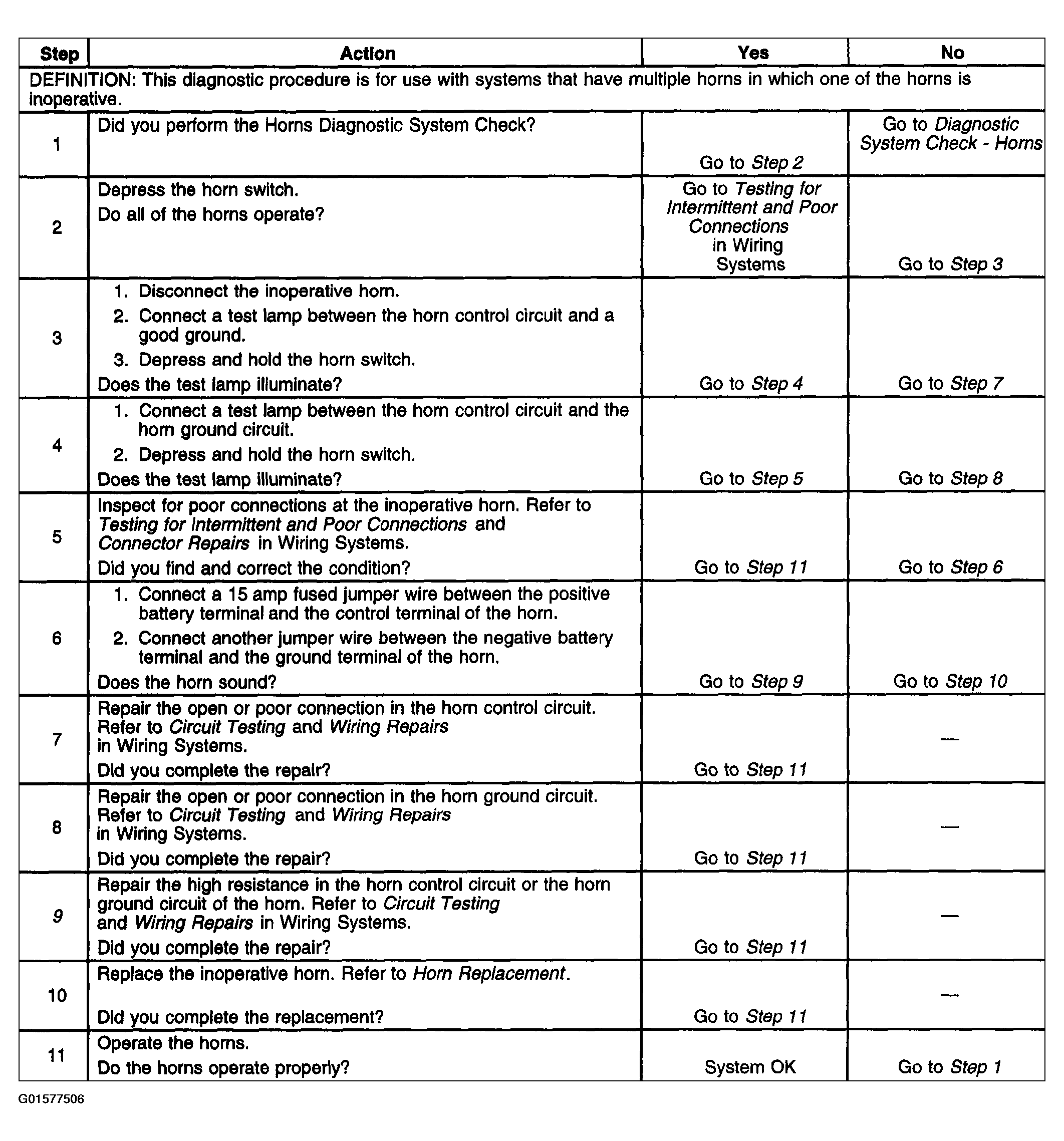

Fig 1: Horns Inoperative-One Horn
G01577506Courtesy of GENERAL MOTORS CORP.
