Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the bezel to the console.
  2. Connect the electrical connectors.
  3. Install the bezel to the console by pushing on the corners until the retainers (1) click in place.
  4. Install the I/P cluster bezel. Refer to Bezel Replacement - Instrument Panel (I/P) Cluster   .

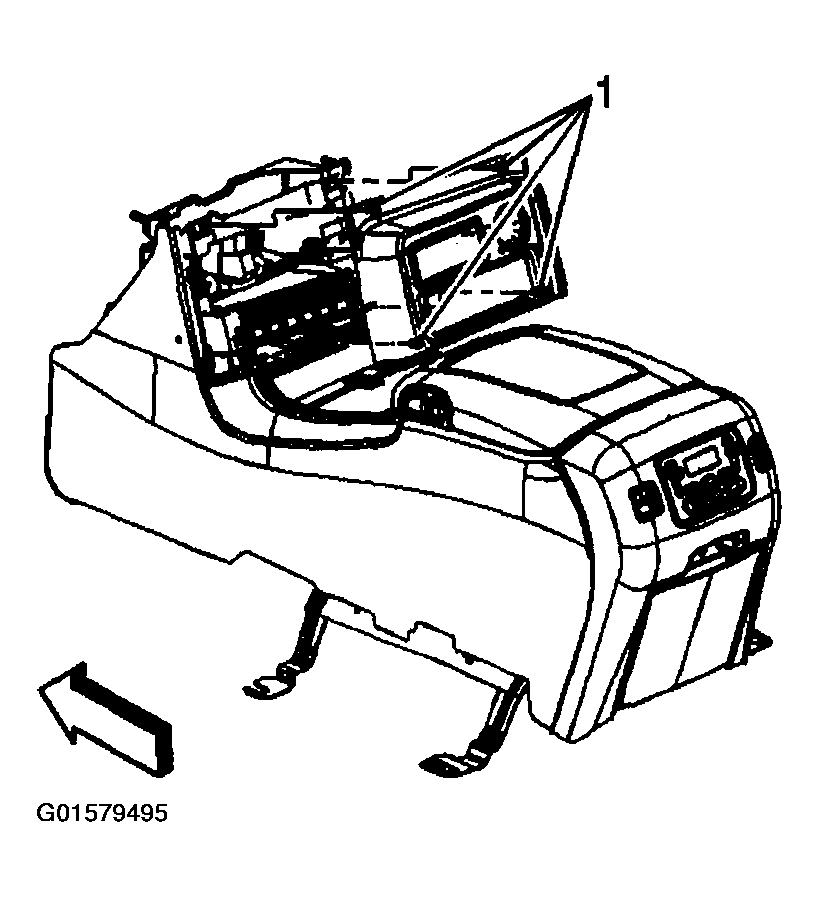

    Fig 1: Floor Console Bezel (Luxury Upper)
    G01579495Courtesy of GENERAL MOTORS CORP.
