Reduced Volume-One or More Speakers

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

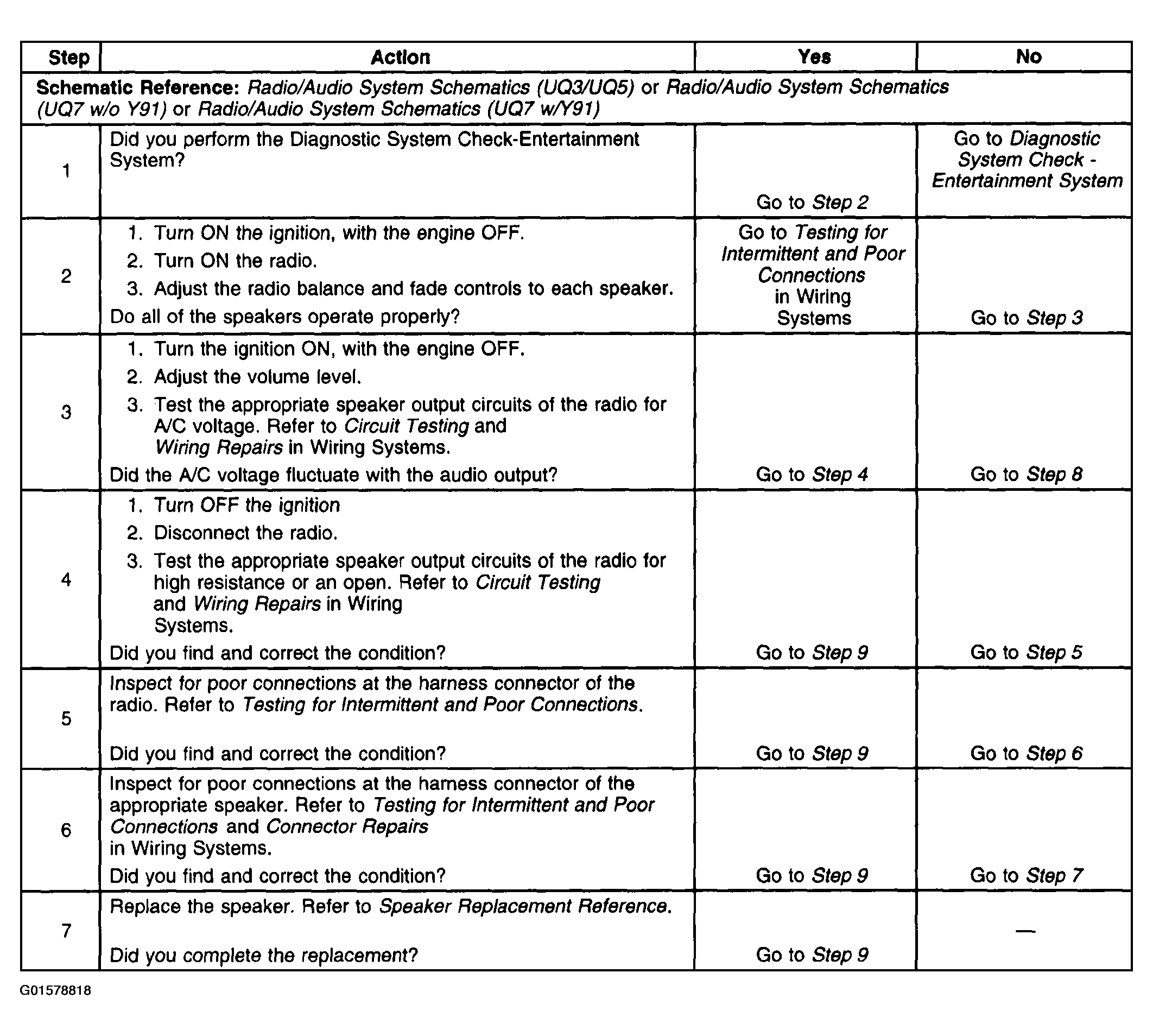

Fig 1: Reduced Volume-One Or More Speakers (Steps 1 - 7)
G01578818Courtesy of GENERAL MOTORS CORP.

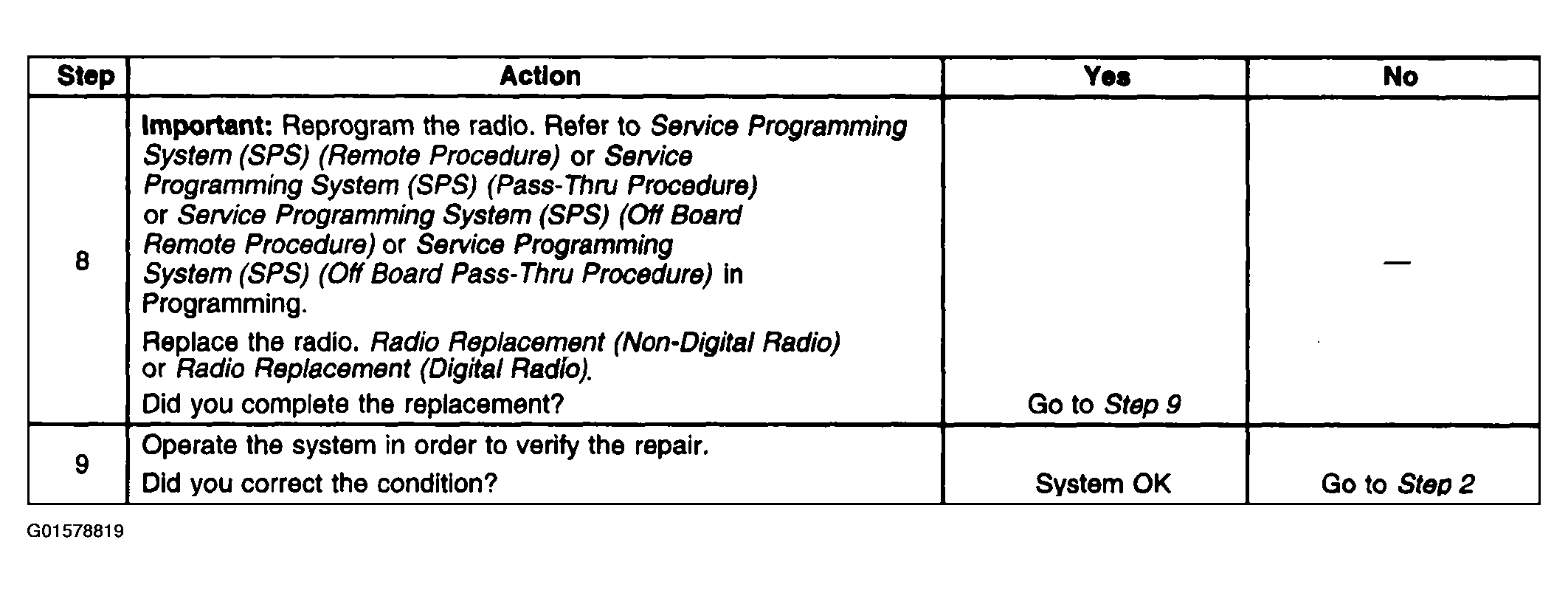

Fig 2: Reduced Volume-One Or More Speakers (Steps 8 - 9 )
G01578819Courtesy of GENERAL MOTORS CORP.
