Test Description

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

2. This step verifies that the DTC is still present.

3. This step isolates the fault condition.

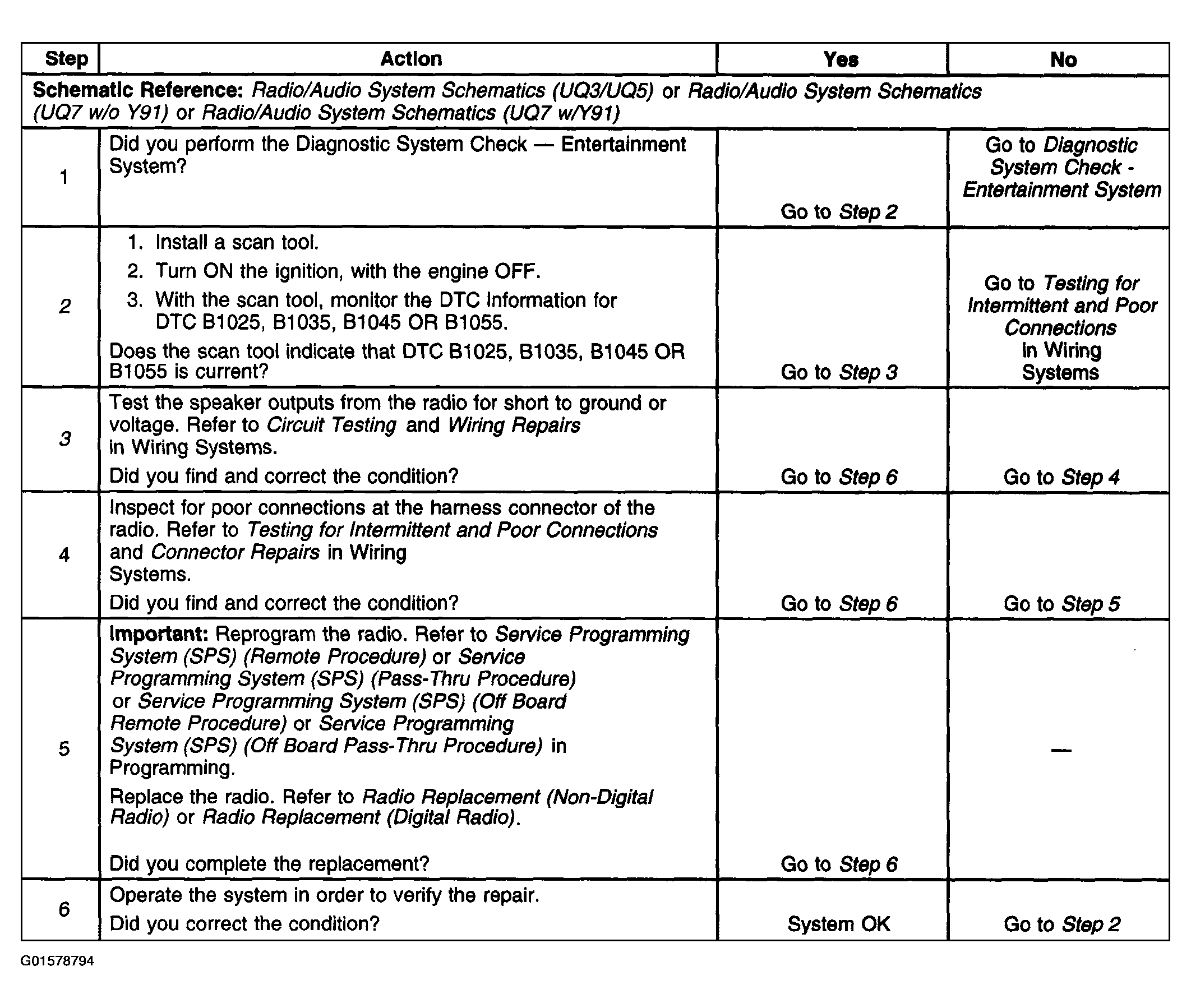

Fig 1: DTC B1025, B1035, B1045, Or B1055
G01578794Courtesy of GENERAL MOTORS CORP.
