Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the transmission fill tube seal.
  2. Install the fill tube.
  3. Remove the drain pan from under the transmission.

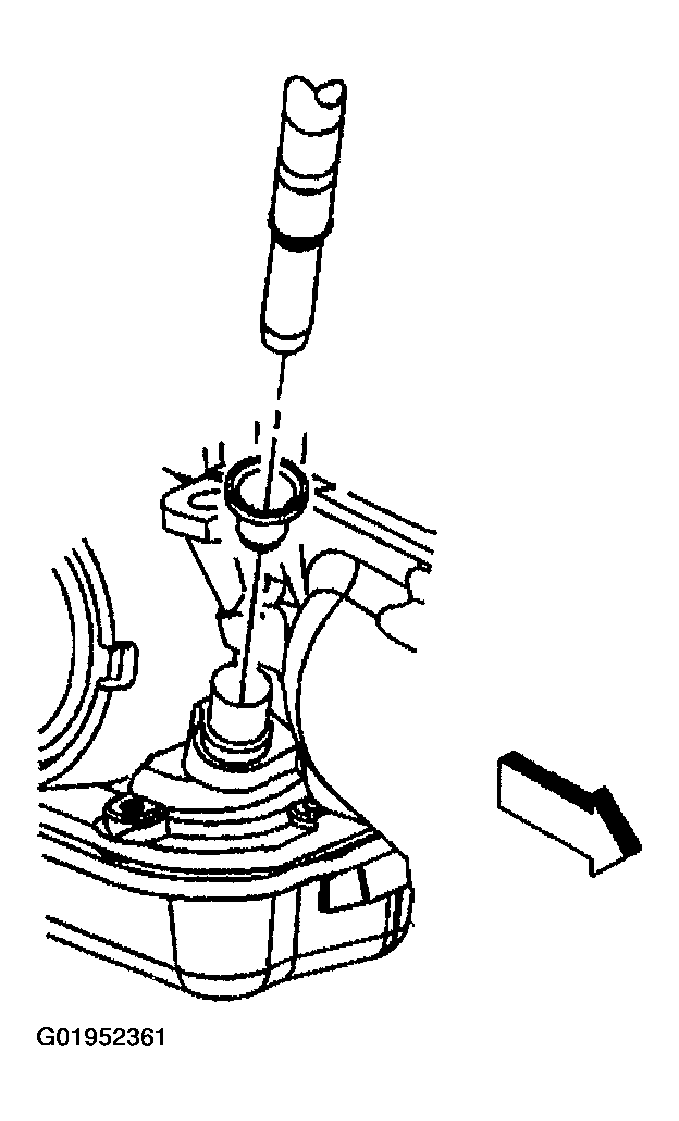

    Fig 1: Installing Transmission Fill Tube & Seal
    G01952361Courtesy of GENERAL MOTORS CORP.
  4. Install the fill tube bracket nut.
  5. Lower the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  6. Install the oil level indicator.

    Tighten

    Tighten the nut to 47 N.m (35 lb ft).

  7. Fill the transmission to the proper level with DEXRON® III transmission fluid. Refer to Transmission Fluid Checking Procedure   .

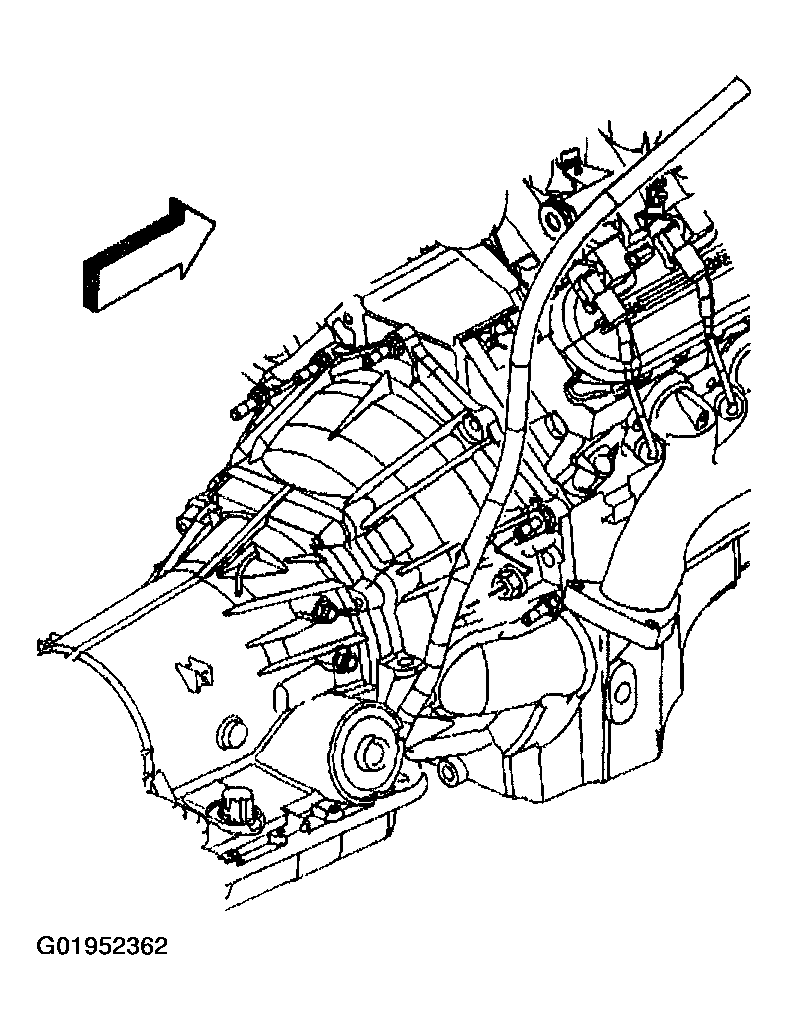

    Fig 2: Installing Fill Tube Bracket Nut
    G01952362Courtesy of GENERAL MOTORS CORP.
