Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply the parking brake.
  2. Shift the transmission into neutral.
  3. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  4. Disconnect the transmission range selector cable from the shift lever and the bracket (2). Refer to Automatic Transmission Range Selector Cable Replacement   .
  5. Remove the bolts (1) securing the transmission range selector cable bracket (2) to the transmission.
  6. Remove the transmission range selector cable bracket from the vehicle.

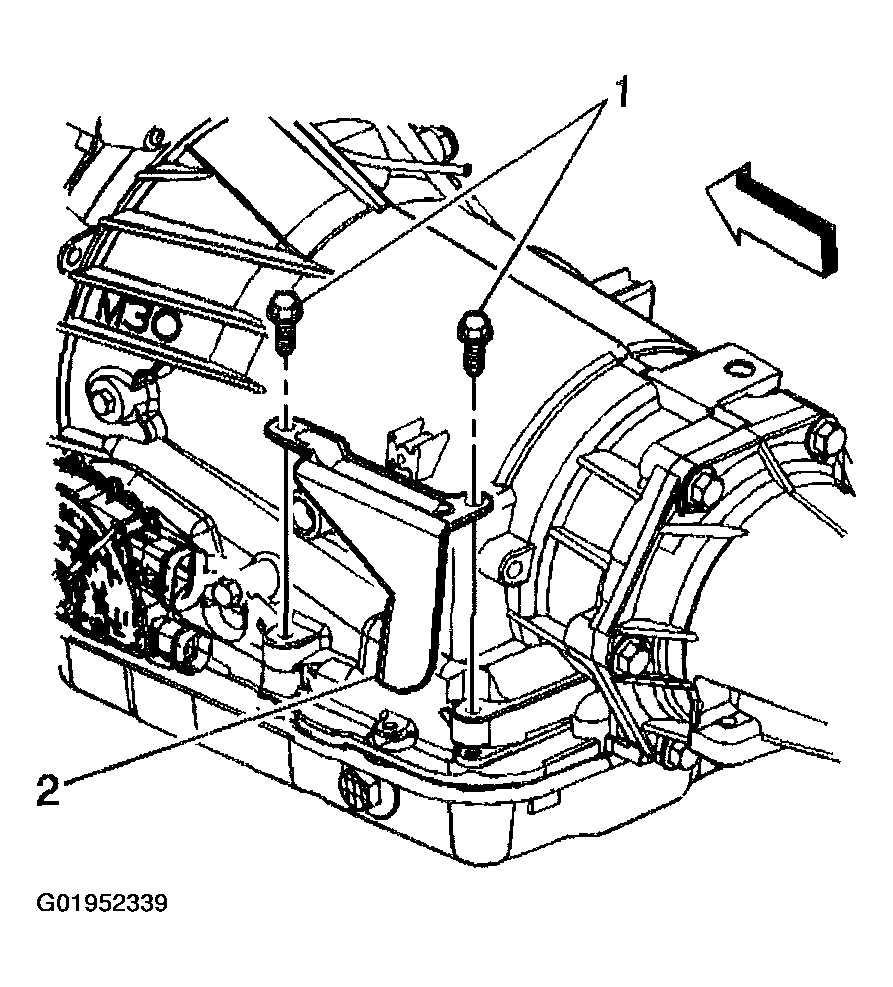

    Fig 1: Removing Automatic Transmission Range Selector Cable Bracket
    G01952339Courtesy of GENERAL MOTORS CORP.
