Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Support the transmission with a transmission jack.
  3. Remove the transmission mount to the transmission support retaining nut or nuts.
    Fig 1: Transmission Mount To Transmission Support Retaining Nut
    G01953667Courtesy of GENERAL MOTORS CORP.
  4. Raise the transmission to take the weight off of the mount.
  5. Remove the transmission mount to the transmission or transfer case adapter mounting bolts (1).
  6. Raise the transmission just enough to remove the transmission mount.
  7. Remove the transmission mount from the vehicle.

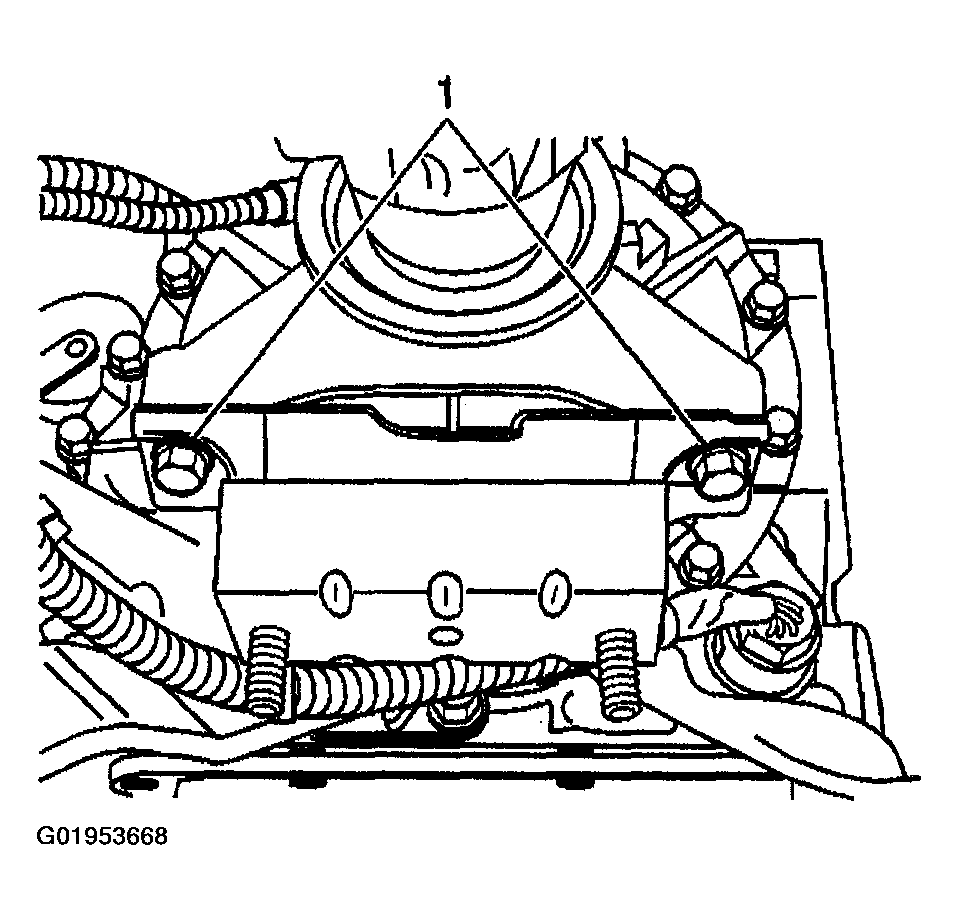

    Fig 2: Removing Transfer Case Adapter Mounting Bolts
    G01953668Courtesy of GENERAL MOTORS CORP.
