Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the transmission mount to the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the transmission mount to the transmission or transfer case adapter mounting bolts (1).

    Tighten

    Tighten the bolts to 50 N.m (37 lb ft).

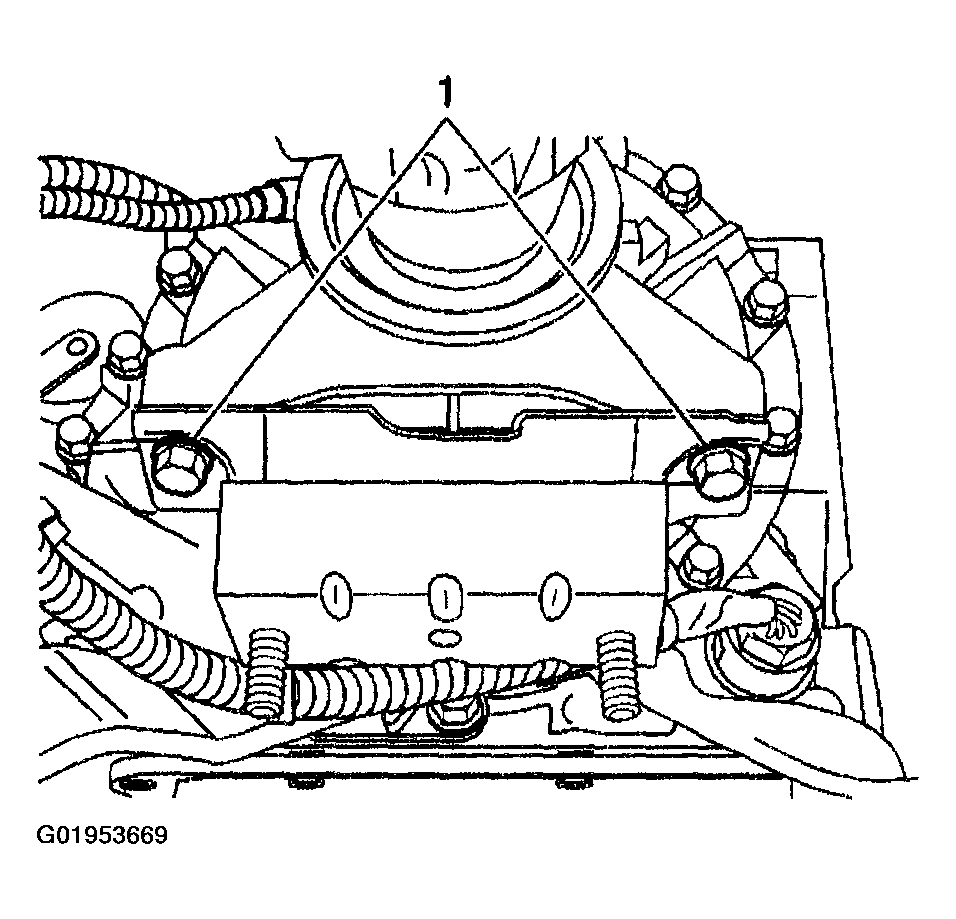

    Fig 1: Transmission Mount To Transfer Case Adapter Mounting Bolts
    G01953669Courtesy of GENERAL MOTORS CORP.
  3. Lower the transmission.
  4. Install the transmission mount to the transmission support retaining nut or nuts.

    Tighten

    Tighten the nut or nuts to 40 N.m (30 lb ft).

  5. Remove the transmission jack.
  6. Lower the vehicle.
    Fig 2: Installing Transmission Support Retaining Nut
    G01953670Courtesy of GENERAL MOTORS CORP.
