Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the transmission oil cooler lines to the vehicle.
  2. Install the cooling lines to the transmission. Refer to Transmission Oil Cooler Line Quick Connect Fitting   .

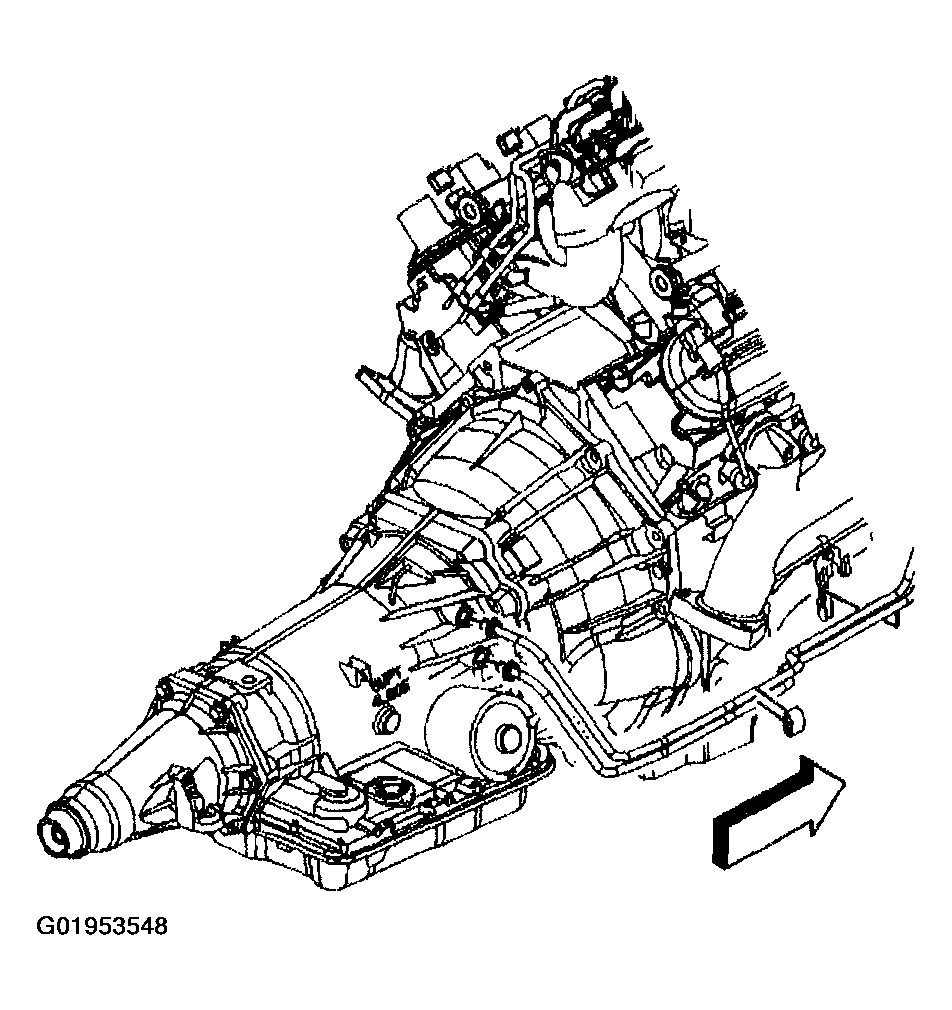

    Fig 1: Installing Transmission Oil Cooler Lines
    G01953548Courtesy of GENERAL MOTORS CORP.
  3. Install the engine protection shield.
  4. Lower the vehicle.
  5. Install the transmission fluid cooler hose to the radiator. Refer to Transmission Oil Cooler Line Quick Connect Fitting   .
  6. Install the transmission fluid cooler hose to the Auxiliary oil cooler. Refer to Transmission Oil Cooler Line Quick Connect Fitting   .
  7. Install the front grill assembly. Refer to GRILLE REPLACEMENT (OLD STYLE) or GRILLE REPLACEMENT (NEW STYLE GMC) or GRILLE REPLACEMENT (NEW STYLE CHEVROLET) .

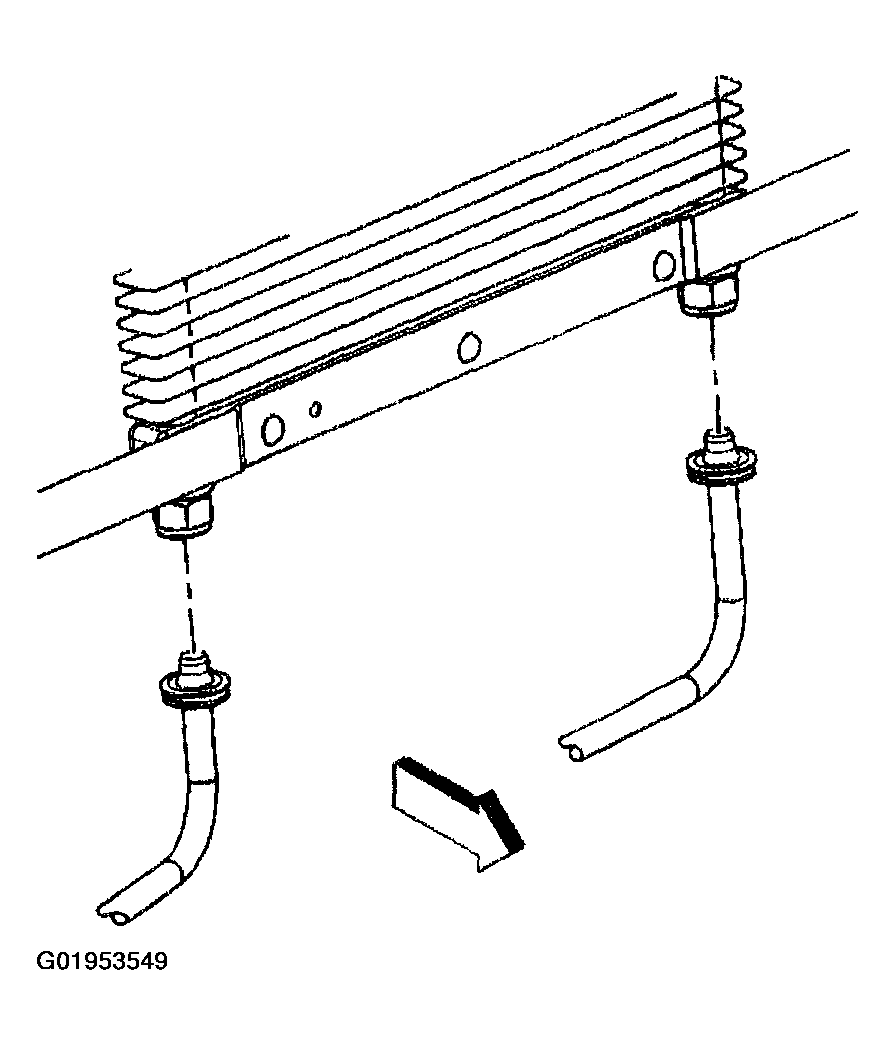

    Fig 2: Installing Transmission Fluid Cooler Hose
    G01953549Courtesy of GENERAL MOTORS CORP.
