Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front grill assembly. Refer to GRILLE REPLACEMENT (OLD STYLE) or GRILLE REPLACEMENT (NEW STYLE GMC) or GRILLE REPLACEMENT (NEW STYLE CHEVROLET) .
  2. Place a drain pan under the vehicle.
  3. Disconnect the transmission oil cooler lines from the auxiliary cooler. Refer to Transmission Oil Cooler Line Quick Connect Fitting   .
  4. Remove the auxiliary oil cooler bolts (1) and push pins (2).
  5. Remove the auxiliary oil cooler from the vehicle.

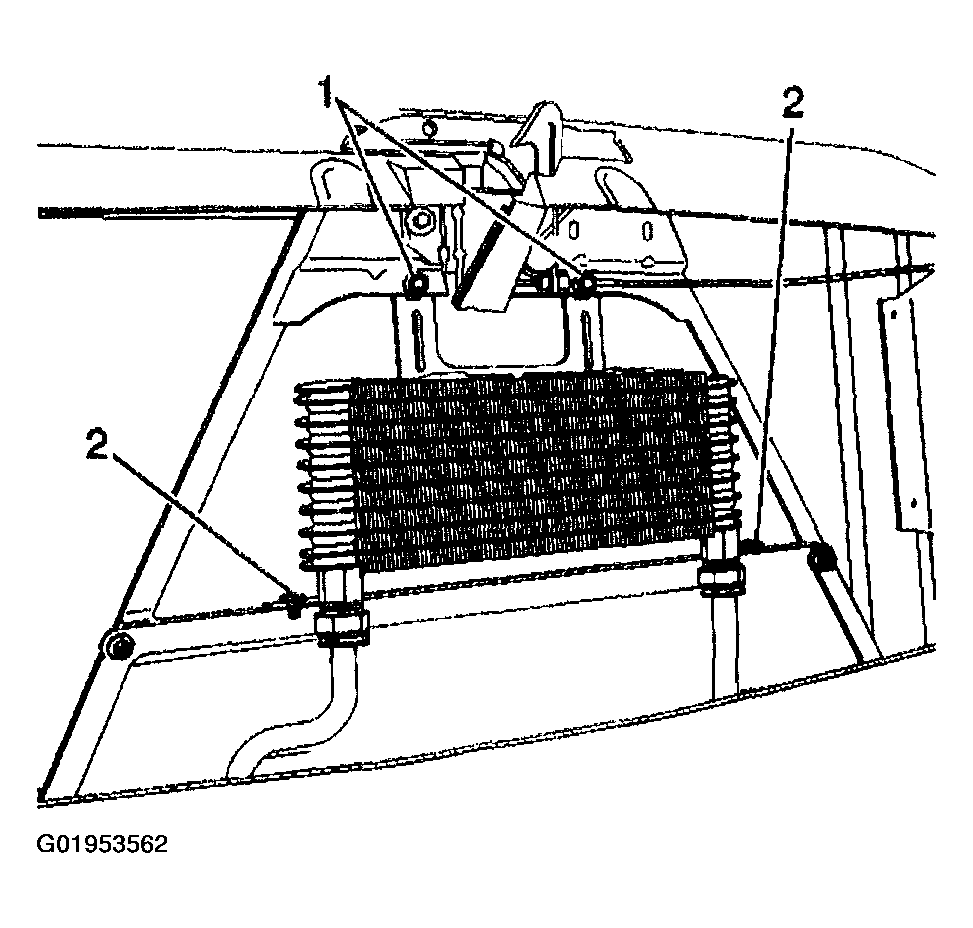

    Fig 1: Transmission Fluid Auxiliary Cooler
    G01953562Courtesy of GENERAL MOTORS CORP.
