Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the pressure regulator valve (1).
  2. Install the pressure regulator isolator spring (3) and the pressure regulator valve spring (2).
  3. Install the reverse boost valve (4) in the reverse boost valve sleeve (5).
  4. Install the reverse boost valve (4) and sleeve (5) in the oil pump cover.

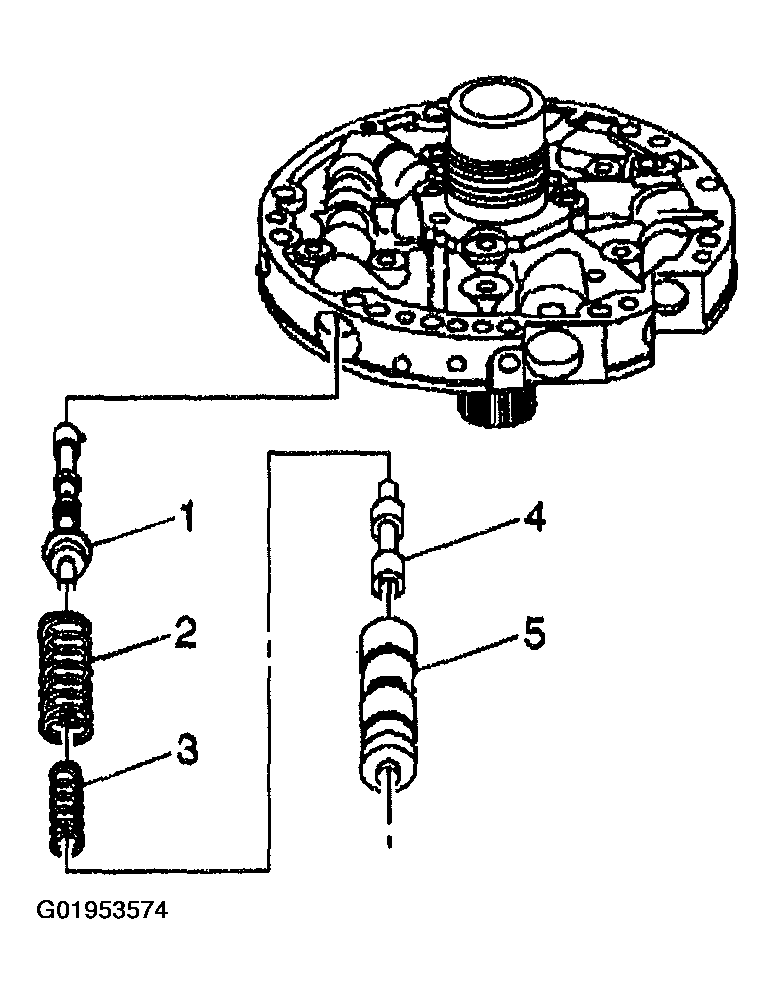

    Fig 1: Installing Pressure Regulator Valve
    G01953574Courtesy of GENERAL MOTORS CORP.
  5. Compress the reverse boost valve sleeve into the bore of the oil pump to expose the retaining ring slot.
  6. Install the reverse boost valve retaining ring, then slowly release tension on the reverse boost valve sleeve.
  7. Install the transmission filter. Refer to Automatic Transmission Fluid/Filter Replacement   .

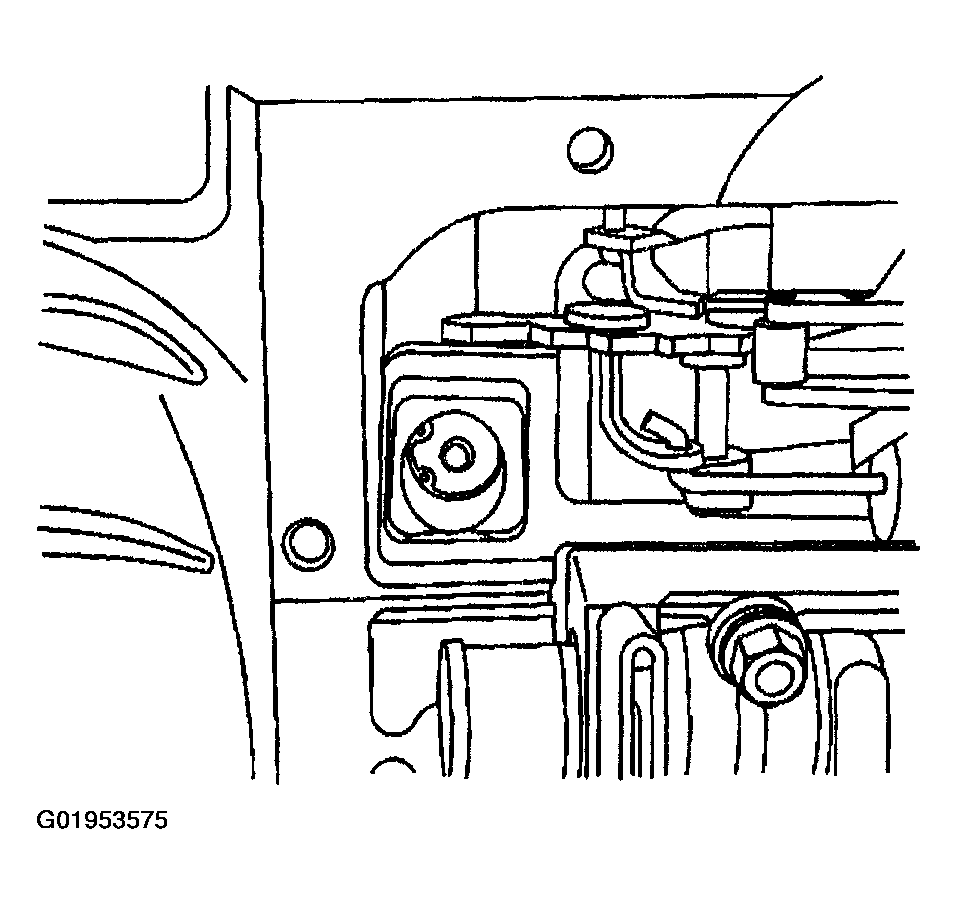

    Fig 2: Installing Reverse Boost Valve Retaining Ring
    G01953575Courtesy of GENERAL MOTORS CORP.
