Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Remove the transmission oil level indicator.
Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
Support the transmission using a suitable jack.
Remove the transmission mount nut.

Fig 1: Removing Transmission Oil Level Indicator
Courtesy of GENERAL MOTORS CORP.
Remove the transmission crossmember bolts/nuts.
Remove the transmission crossmember.

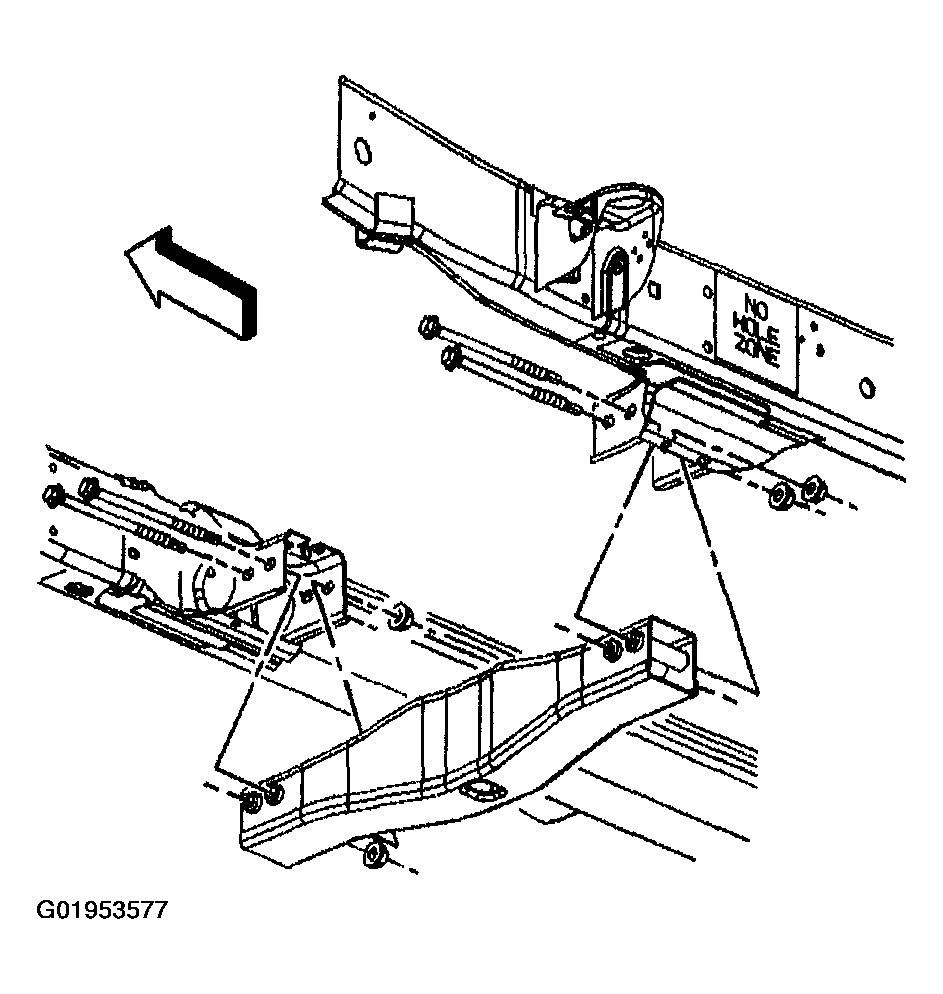

Fig 2: Removing Transmission Crossmember & Bolts/Nuts
Courtesy of GENERAL MOTORS CORP.
Loosen the left exhaust pipe nuts.

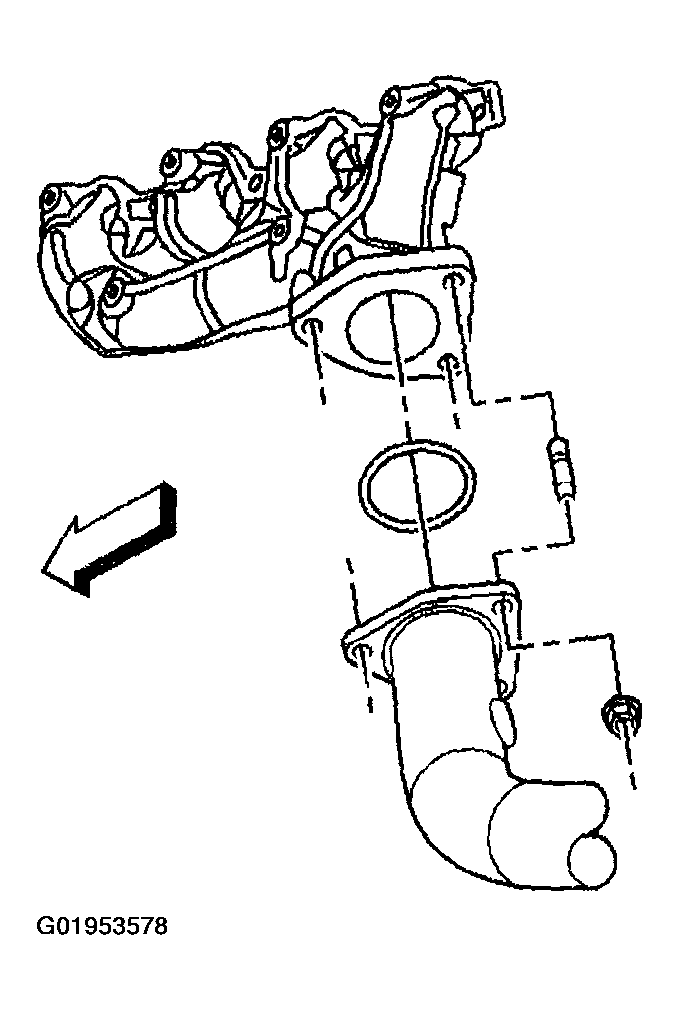

Fig 3: Loosening Left Exhaust Pipe Nuts
Courtesy of GENERAL MOTORS CORP.
Loosen the right exhaust pipe nuts.

Fig 4: Loosening Right Exhaust Pipe Nuts
Courtesy of GENERAL MOTORS CORP.
Remove the insulator nuts and insulator from the bracket.
Remove the exhaust pipe hanger bracket bolts and bracket.
Lower the transmission slightly.

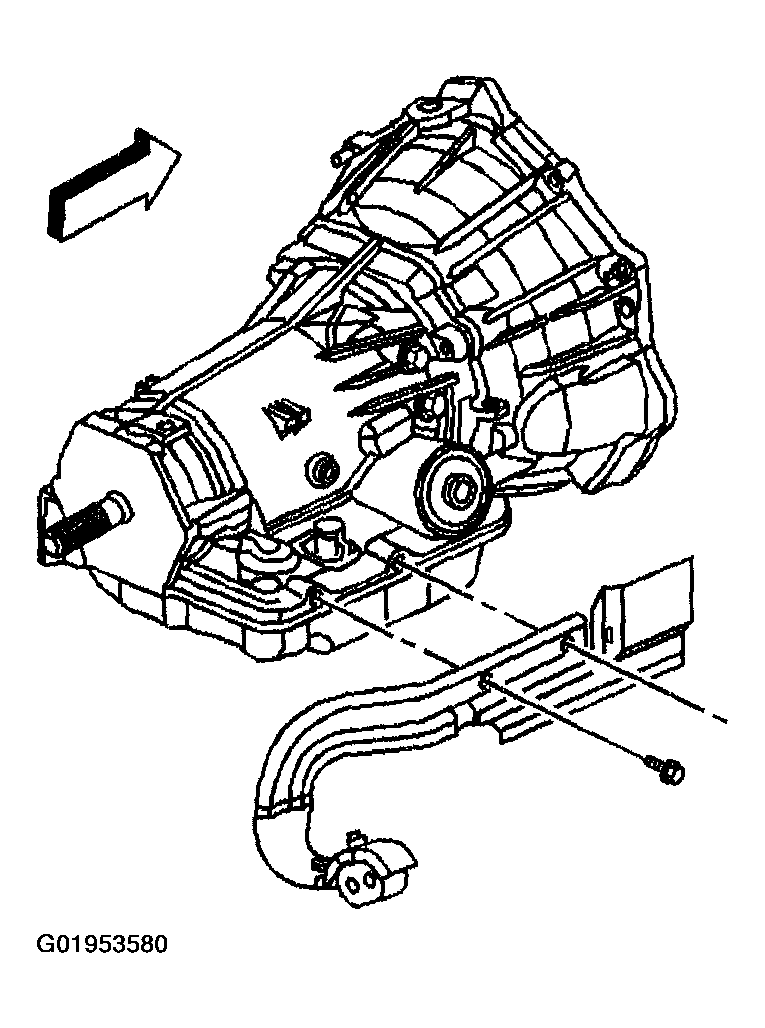

Fig 5: Removing Exhaust Pipe Hanger Bracket & Bolts
Courtesy of GENERAL MOTORS CORP.
Disconnect the transmission oil cooler lines. Refer to Transmission Oil Cooler Line Quick Connect Fitting .
Plug the transmission oil cooler line fittings.

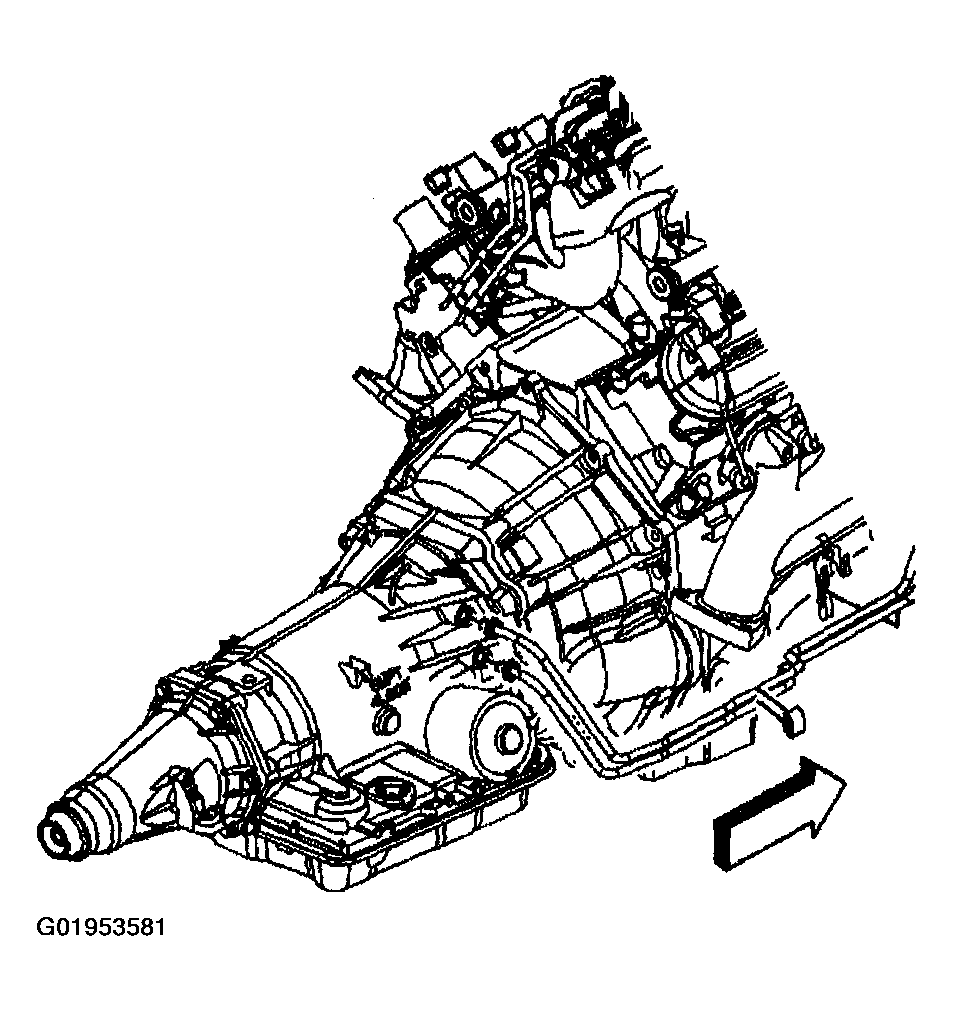

Fig 6: Transmission Oil Cooler Line Fittings
Courtesy of GENERAL MOTORS CORP.
Remove the indicator tube nut.

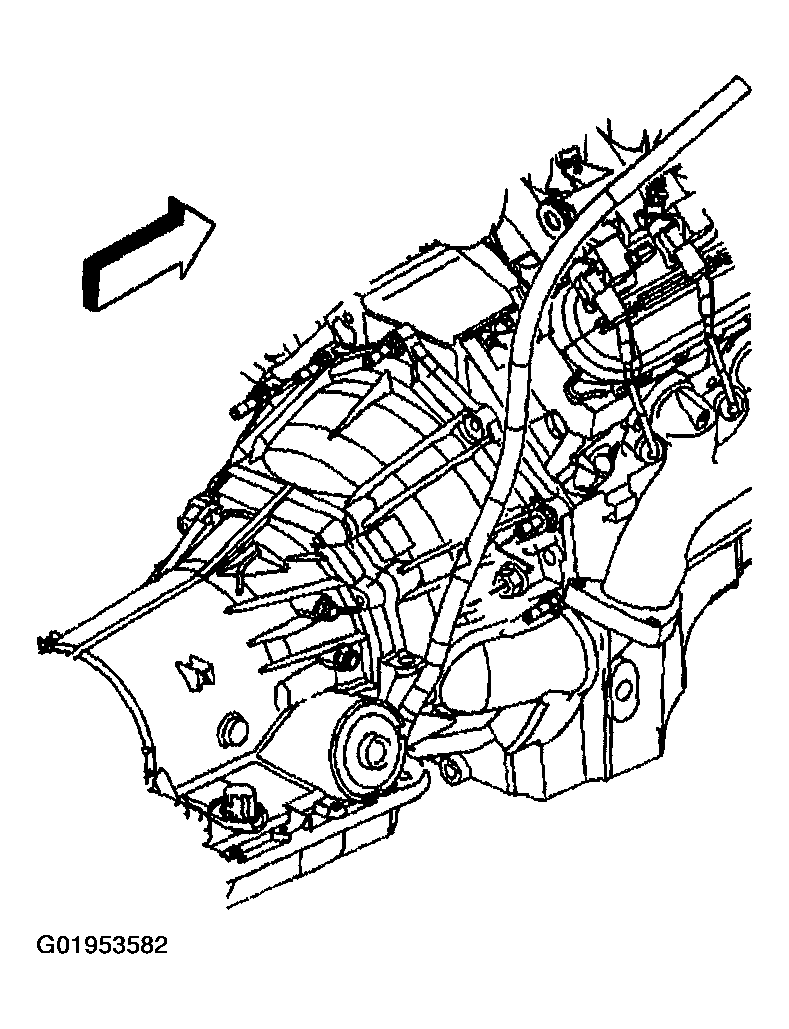

Fig 7: Removing Indicator Tube Nut
Courtesy of GENERAL MOTORS CORP.
Remove the oil level indicator tube.
Remove the seal from the transmission, if necessary.

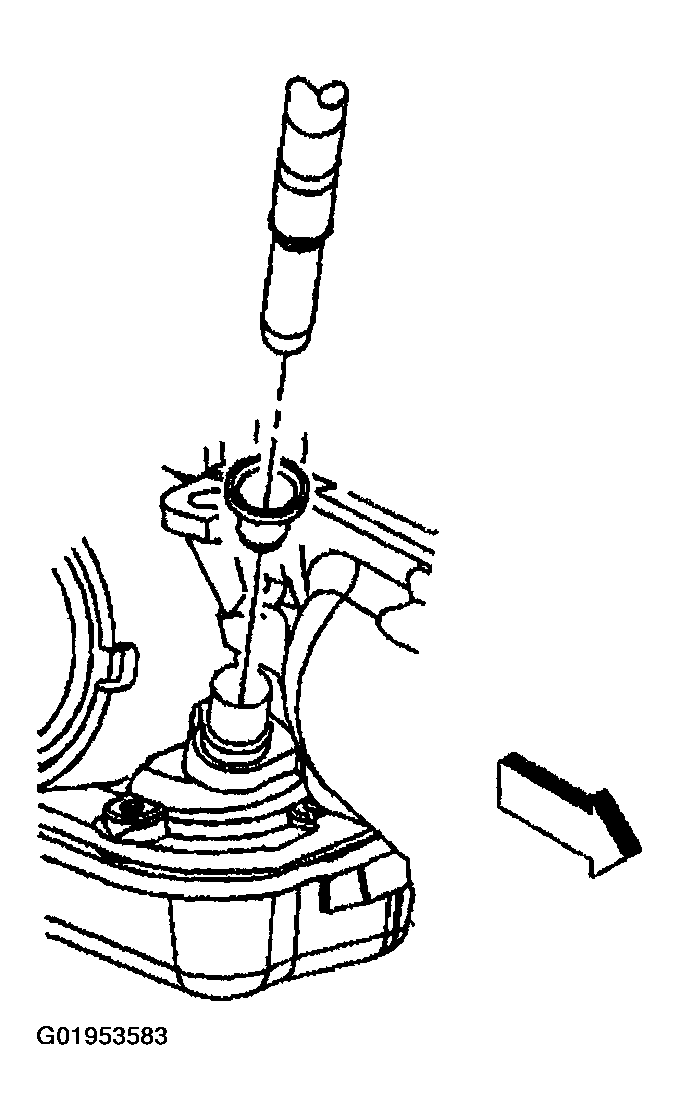

Fig 8: Removing Oil Level Indicator Tube
Courtesy of GENERAL MOTORS CORP.
