Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the 3-2 control solenoid.
  2. Install the 3-2 control solenoid retainer.
    Fig 1: Installing Control Solenoid & Retainer
    G01953624Courtesy of GENERAL MOTORS CORP.
  3. Install the 1-2 and 2-3 shift solenoids.
  4. Install the 1-2 and 2-3 shift solenoid retainers.

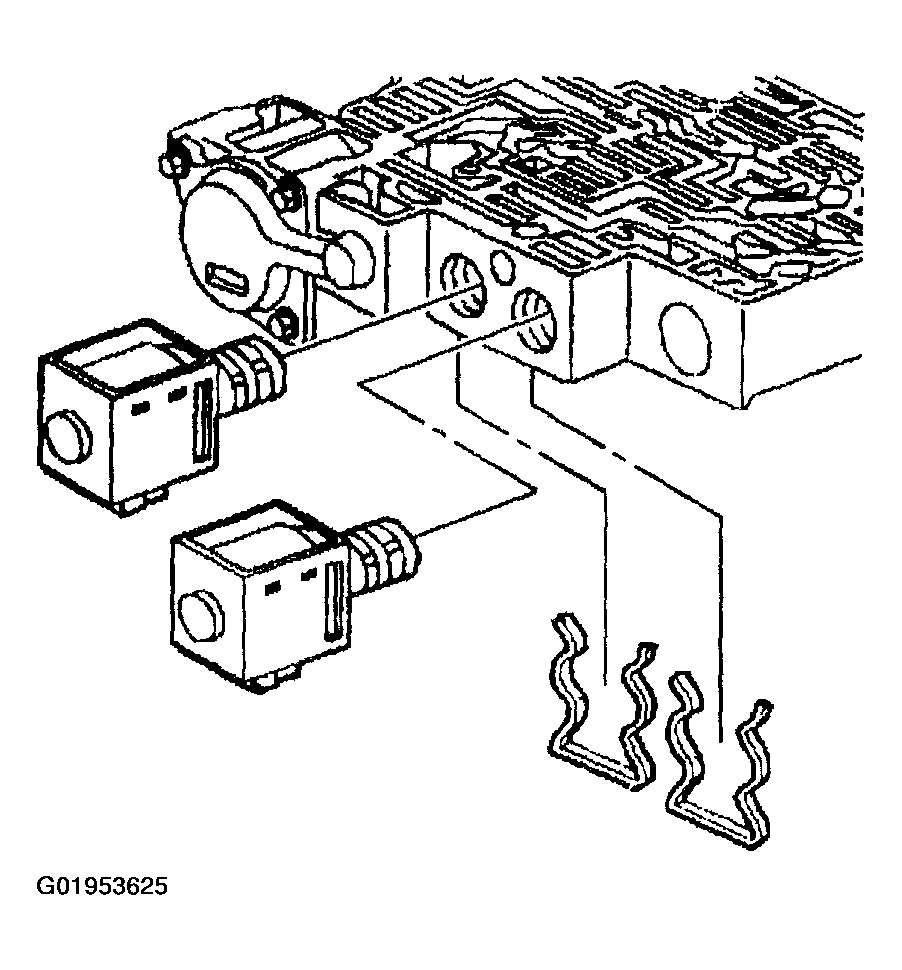

    Fig 2: Installing Shift Solenoids & Retainers
    G01953625Courtesy of GENERAL MOTORS CORP.
  5. Install the pressure control solenoid.

    Ensure that the electrical tabs are facing outboard.

    NOTE: Refer to FASTENER NOTICE .
  6. Install the pressure control solenoid retainer and bolt.

    Tighten

    Tighten the bolt to 11 N.m (97 lb in).

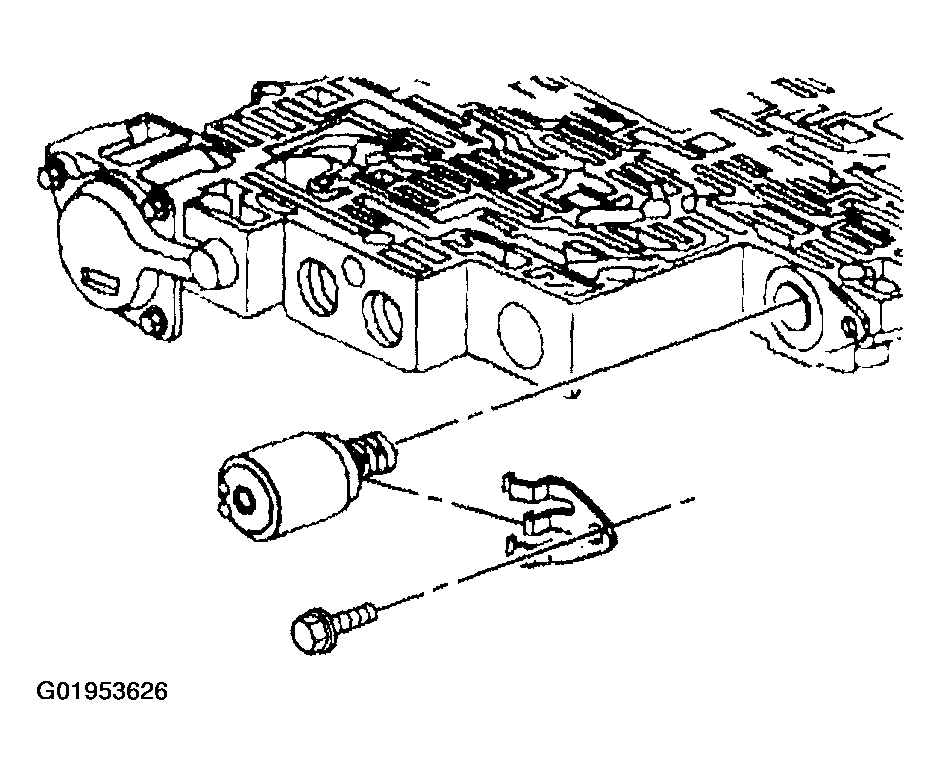

    Fig 3: Installing Pressure Control Solenoid Retainer & Bolt
    G01953626Courtesy of GENERAL MOTORS CORP.
  7. Connect the internal wiring harness electrical connectors to the following components:
    • Transmission fluid pressure switch (1)
    • 1-2 shift control solenoid (2)
    • 2-3 shift control solenoid (3)
    • Pressure control solenoid (4)
    • TCC PWM solenoid (5)
    • 3-2 control solenoid (6)
  8. Install the 1-2 accumulator, if necessary. Refer to Accumulator Assembly, Spacer Plate, And Gaskets   .
  9. Install the transmission filter. Refer to Automatic Transmission Fluid/Filter Replacement   .

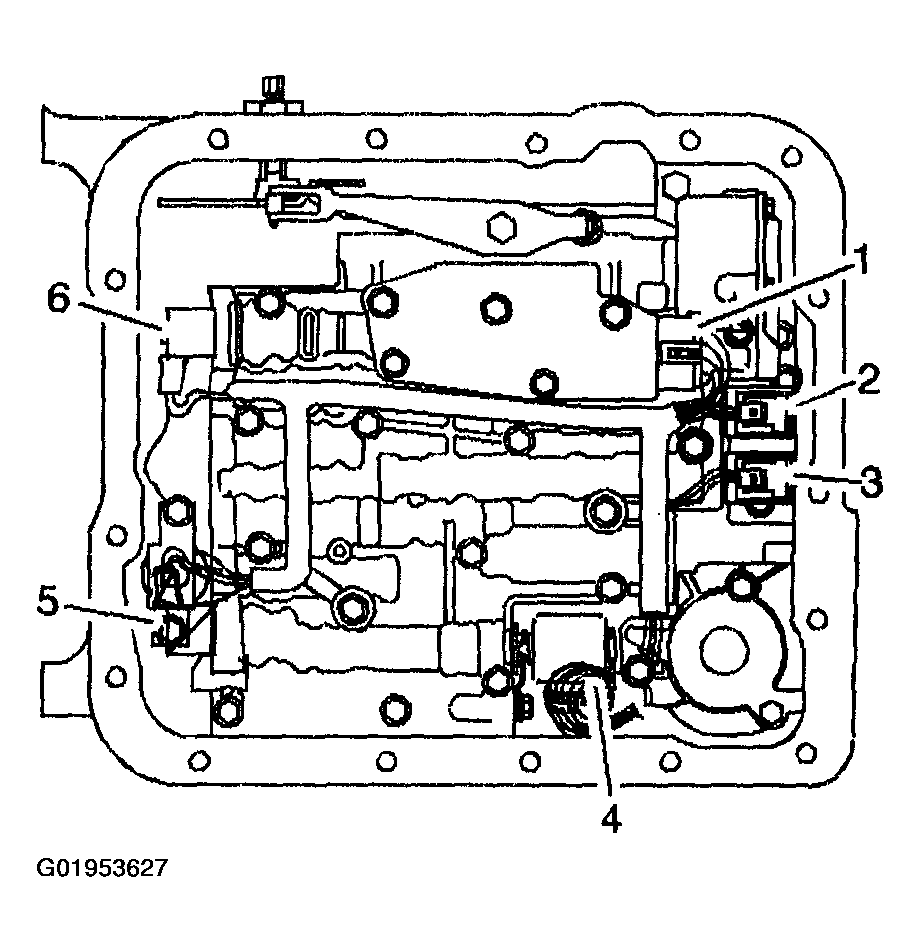

    Fig 4: Connecting Internal Wiring Harness Electrical Connectors
    G01953627Courtesy of GENERAL MOTORS CORP.
