Symptoms-Automatic Transmission

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Symptoms-Automatic Transmission (1 Of 2)
G01953441Courtesy of GENERAL MOTORS CORP.

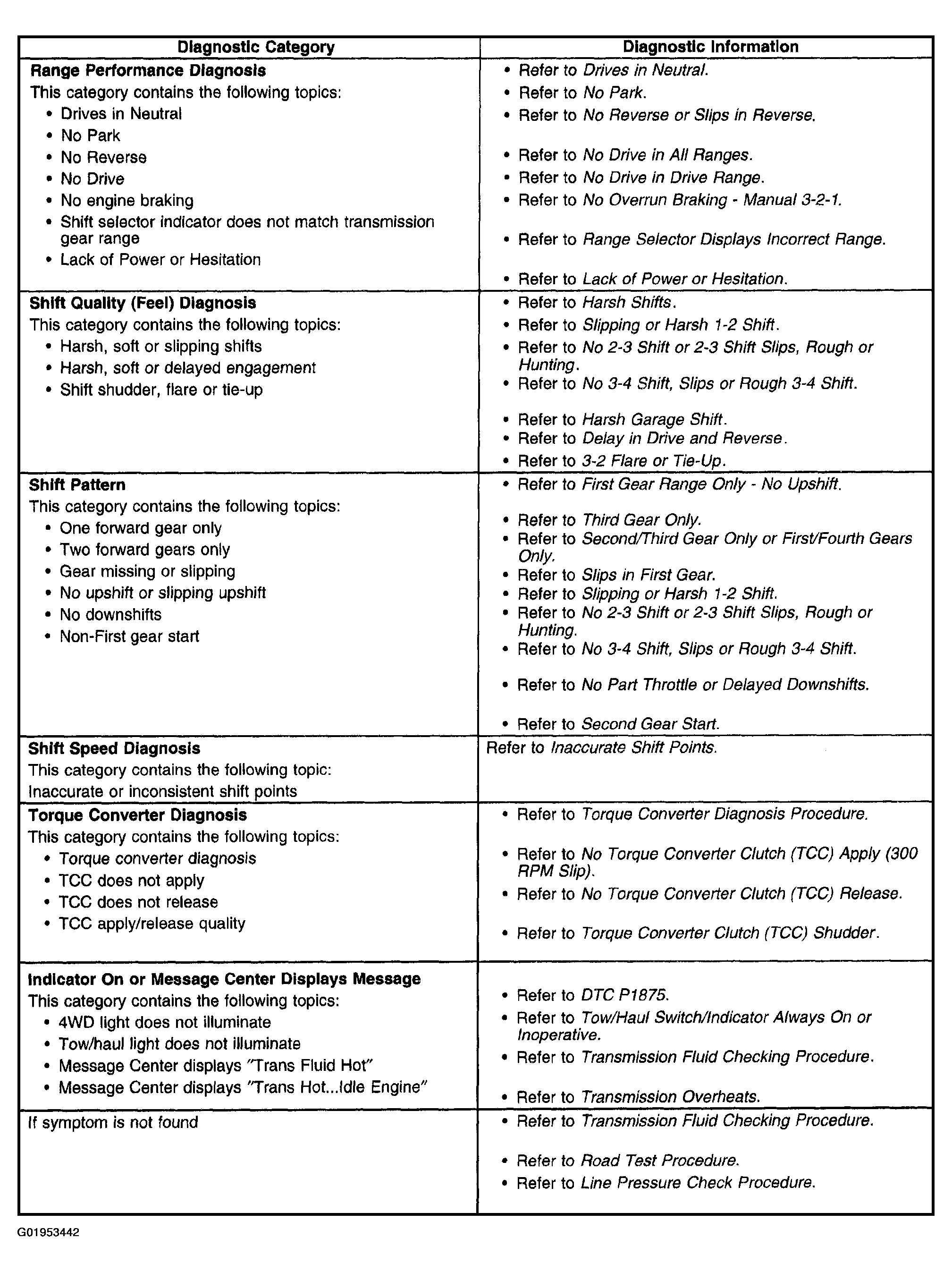

Fig 2: Symptoms-Automatic Transmission (2 Of 2)
G01953442Courtesy of GENERAL MOTORS CORP.
