Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the rear propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT - ONE PIECE or PROPELLER SHAFT REPLACEMENT - TWO PIECE .
  3. If required, remove the following:
    1. 3.1. The main shaft nut
    2. 3.2. The prop shaft yoke washer
    3. 3.3. The main shaft washer
    4. 3.4. The yoke

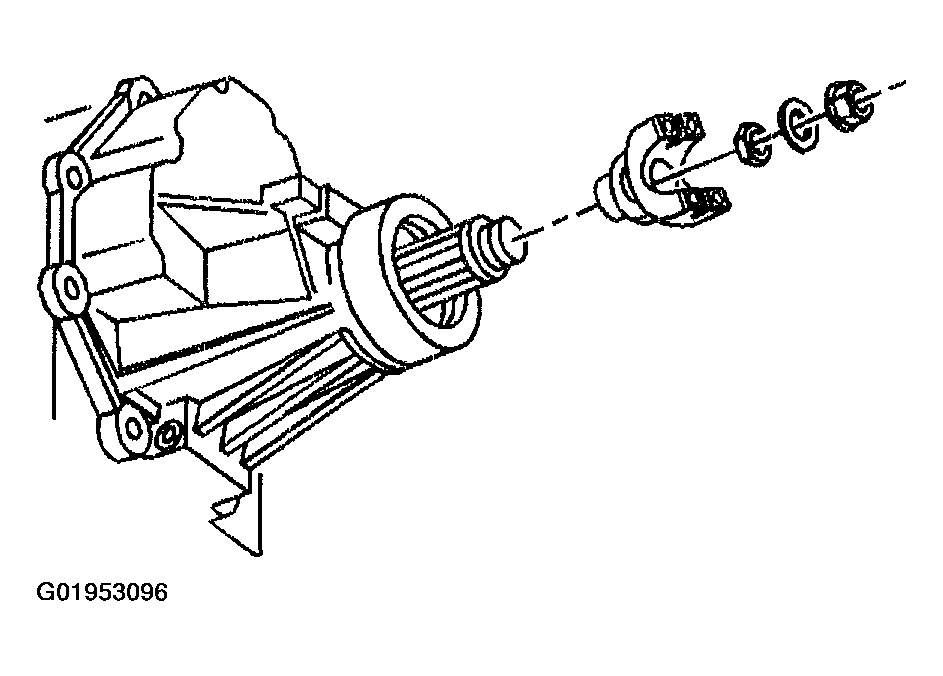

    Fig 1: Removing Main Shaft Nut, Propeller Shaft Yoke Washer, Main Shaft Washer & Yoke
    G01953096Courtesy of GENERAL MOTORS CORP.

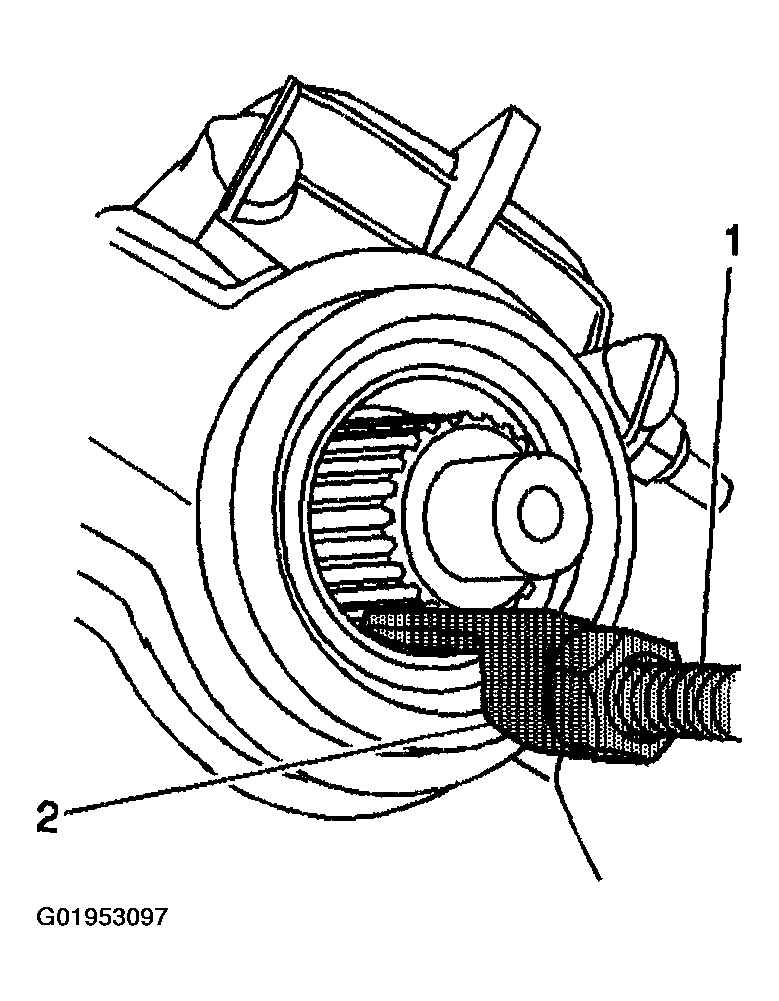

  4. Remove the rear seal using J 6125-B  (1) and J 23129  (2).
    Fig 2: Removing Rear Seal
    G01953097Courtesy of GENERAL MOTORS CORP.
