Test Description

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. This test confirms if the scan tool is receiving a clutch switch position signal.
  2. 3. This step inspects the clutch pedal connector and adjustment.

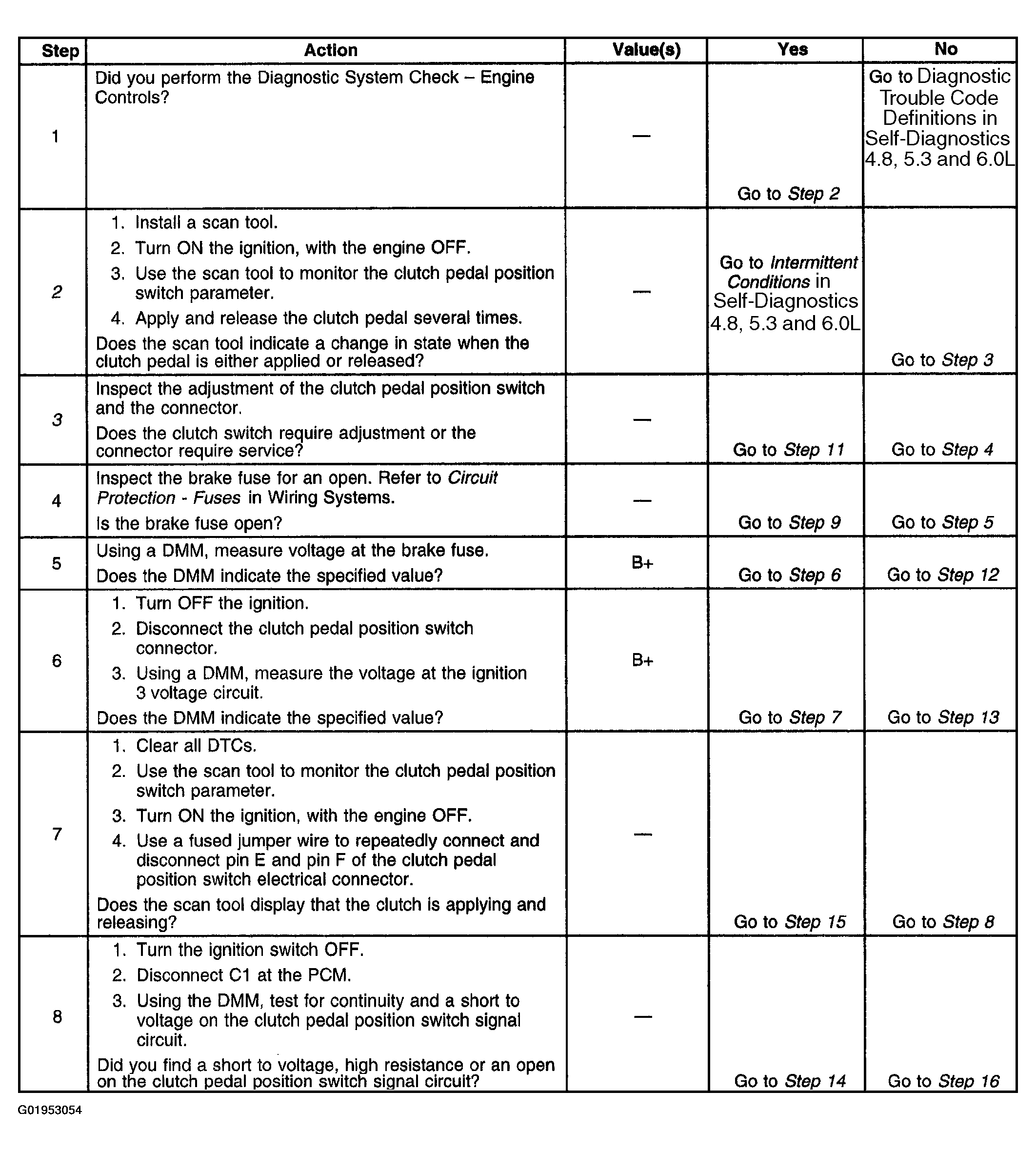

Fig 1: DTC P0704 (Steps 1-8)
G01953054Courtesy of GENERAL MOTORS CORP.
Fig 2: DTC P0704 (Steps 9-18)
G01953055Courtesy of GENERAL MOTORS CORP.
