Test Description

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 8. This step inspects for the transfer case causing the clunk. Shift the transfer case into another mode. If the transmission is causing the clunk, there will not be a change.

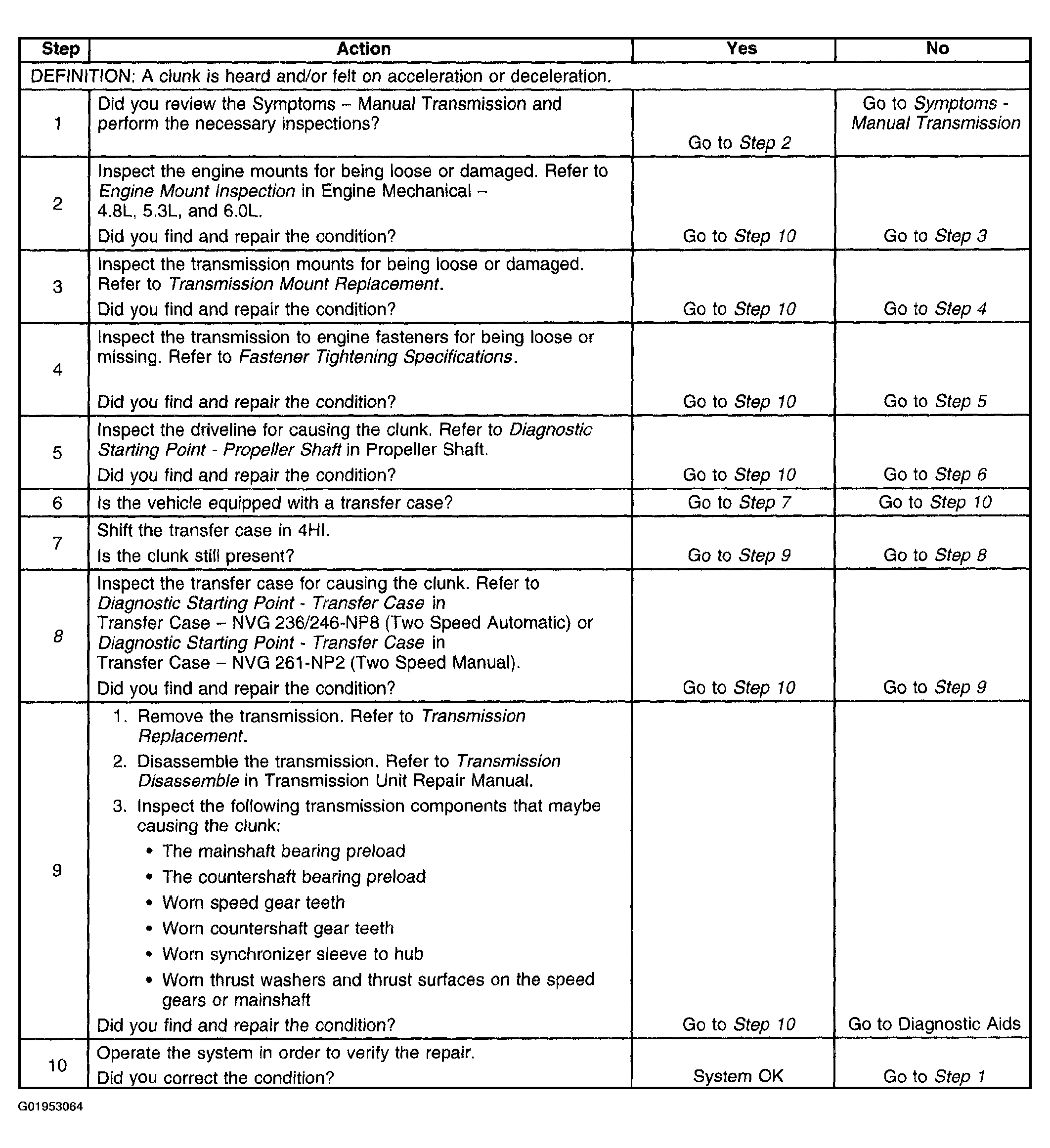

Fig 1: Clunk On Acceleration Or Deceleration
G01953064Courtesy of GENERAL MOTORS CORP.
