Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT - ONE PIECE or PROPELLER SHAFT REPLACEMENT - TWO PIECE .
  2. Remove the rear oil seal using J 6125-1B  (1) and J 23129  (2).

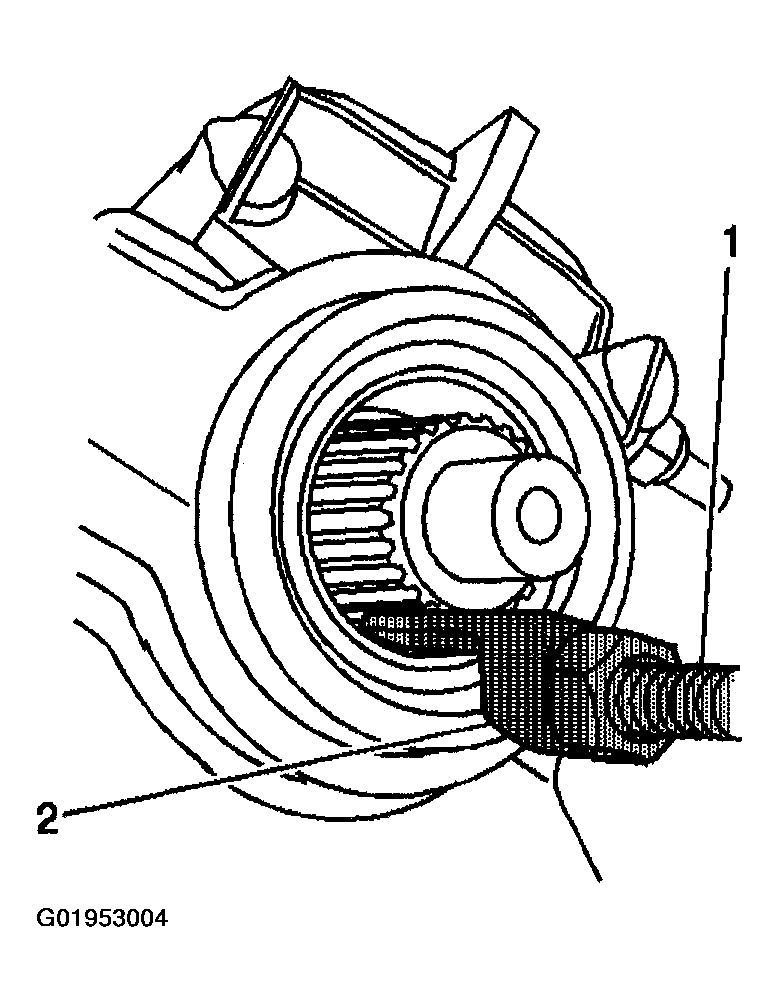

    Fig 1: Removing Rear Oil Seal (2WD)
    G01953004Courtesy of GENERAL MOTORS CORP.
