Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Using J 36503 install the NEW rear oil seal.
Install the rear propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT - ONE PIECE or PROPELLER SHAFT REPLACEMENT - TWO PIECE .
Check to transmission fluid level. Add if necessary.
Lower the vehicle.

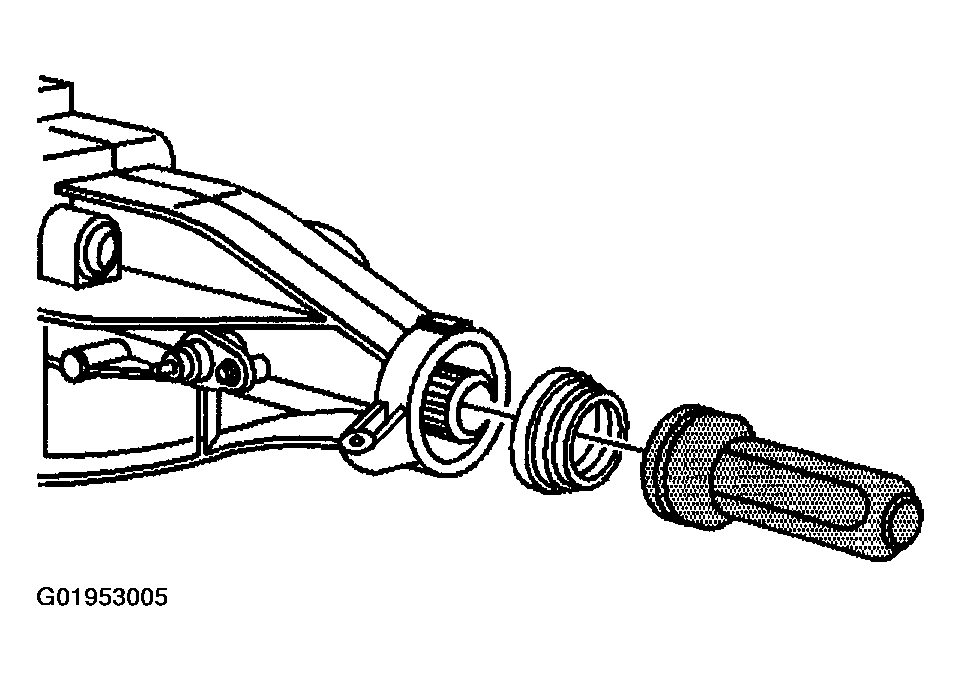

Fig 1: Installing Rear Oil Seal (2WD)
Courtesy of GENERAL MOTORS CORP.
